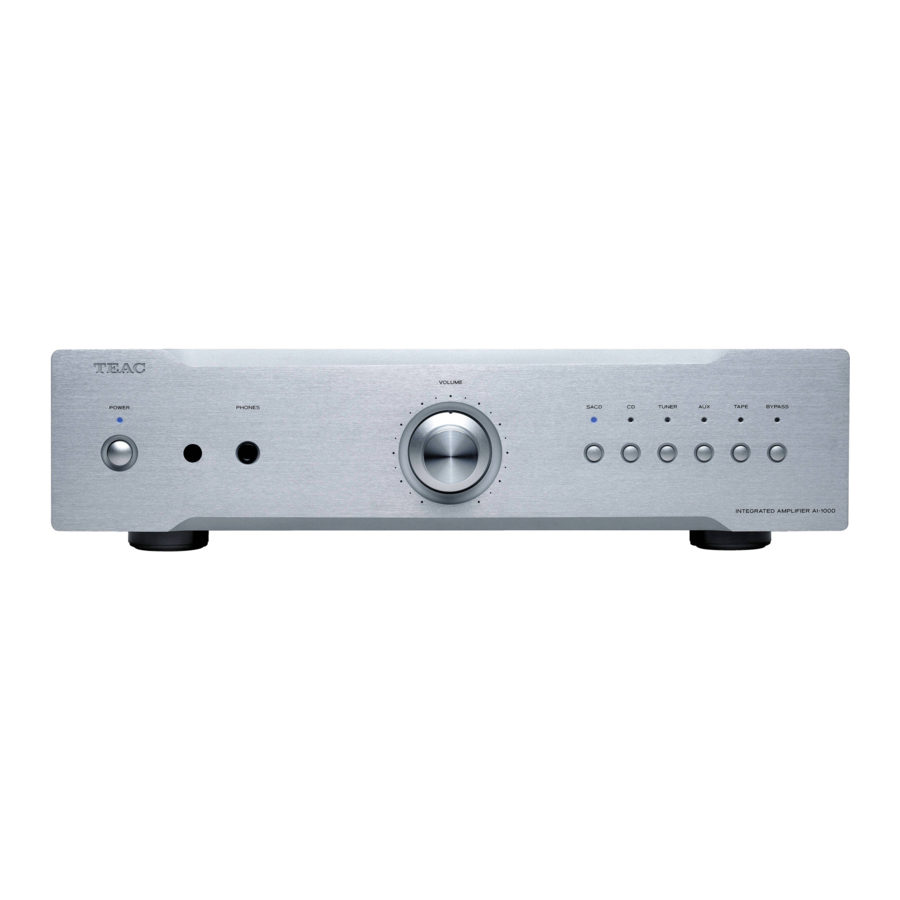

Teac AI-1000 - Stereo Amplifier Manual

Before Using the Unit

Read before operation

• Be careful to avoid injury when moving the unit, due to its weight. Get someone to help you if necessary.
• To protect easily scratched furniture, you may apply the felt pads supplied with the unit to the feet.
• As the unit may become warm during operation, always leave sufficient space around the unit for ventilation. The ventilation holes should not be covered. Make sure there is at least 20 cm (8") of space above and at least 5 cm (2") of space on each side of the unit. Do NOT place anything on top of the unit.
• The voltage supplied to the unit should match the voltage that is printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.
• Choose the installation location of your unit carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, heat, cold or moisture.
• Do not place the unit on an amplifier or any other device that generates heat.
• Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the unit, contact your dealer or service company.
• When removing the power plug from the wall outlet, always pull directly on the plug, never yank the cord.
• Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a clean, dry cloth. o Keep this manual in a safe place for future reference.
• If a TV is turned on near the unit while the unit is also on, lines might appear on the TV screen depending on the frequency of the TV broadcast. This is not a malfunction of the unit or the TV. If you see such lines, move the unit and the TV further apart.

Maintenance

If the surface of the unit gets dirty, wipe with a soft cloth or use diluted neutral cleaning liquid. Be sure to remove any fluid completely. Do not use thinner or alcohol as they may damage the surface of the unit.

Identifying the Parts

Front panel

1. POWER indicator
2. POWER button
3. Remote control receiver
4. PHONES (earphone jack)
5. VOLUME knob
6. SACD signal selector
7. CD signal selector
8. TUNER signal selector
9. AUX signal selector
10. TAPE signal selector
11. BYPASS signal selector
12. Input status indicators

Rear panel

1. SACD signal input terminals
2. CD signal input terminals
3. TUNER signal input terminals
4. AUX signal input terminals
5. TAPE signal input terminals
6. BYPASS input terminals
7. PRE OUT output terminals
8. Right channel speaker output terminals
9. Left channel speaker output terminals
10. AC power inlet (with fuse)

Remote control

1. MUTE
2. INPUT (Next input selector)
3. INPUT (Previous input selector)
4. VOLUME +
5. VOLUME -
6. AMP

Operating the unit by using the remote control

• Press the AMP button on the remote control to switch to the AMP mode before operating the unit by using the remote control.
• The effective range of the remote control is no greater than 10 m and an angle no greater than 30 degrees.
• Buttons that are not listed or mentioned in the remote control diagram are not used for this unit. It is normal that there will be no response when you press them.

Battery installation

1. Open the cover of the remote control unit.
2. Insert two AAA batteries. Make sure that the batteries are inserted with their positive and negative poles positioned correctly.
3. Close the cover.

Basic Operation

Power ON / OFF

Connect the power cord and signal cables to the unit. Then, press the POWER button on the front panel to turn the unit on (). The power indicator on the front panel is on and the unit is in normal operating mode now.

To turn the unit off, press the POWER button on the front panel. The button is set to the off position (), and the power indicator and eventually the unit are off. Disconnect the AC power cord from the main outlet when the appliance is not used for a long period of time.

Input switching

To switch to the input port you want to use, press the corresponding signal selector button on the front panel or the INPUT k or j button on the remote control. The corresponding input status indicator will light accordingly.

Volume adjustment

You can adjust the volume setting by using the VOLUME knob on the front panel of the unit. To increase the volume, turn the knob clockwise. To reduce the volume, turn the knob counterclockwise. You can also use the VOLUME + or – button on the remote control to adjust the volume.

Using the VOLUME knob, set the volume to the minimum each time before turning off the unit to prevent damage to your loudspeakers when turning off and on the unit. After turning on the unit, use the VOLUME knob or VOLUME + button on the remote control to gradually increase the volume level.

Output protection

When the output of the power amplifier is overloaded, the relay of the protection circuit of the power amplifier will be disconnected. All indicators on the panel will be on at the same time and the volume will be turned down automatically. At this time, turn off the unit's power and eliminate any overload cause. In about 5 minutes, turn on the unit again to check for normal operation.

Mute

Press the MUTE button on the remote control to mute the sound output from the connected loudspeaker systems. While the sound is muted, the input status indicator for the selected input source blinks.

In mute mode, press the MUTE button on the remote control again to return to normal playback mode.

Troubleshooting

If you experience any problems with the unit, please take a moment to look through this chart before asking for repairs. If you still have a problem, contact your dealer or TEAC customer service/technical support (stated on the back cover).

No power

• Check the connection to the AC outlet. Check and make sure the AC source is not a switched outlet and that, if it is, the switch is turned on. Make sure there is power to the AC outlet by plugging another item such as a lamp or fan into the outlet.

Remote control doesn't work.

• Press the POWER switch of the main unit to turn it on.
• If the batteries are dead, change the batteries.
• Within the specified range of 10 m, point the remote control directly at the unit's front panel.
• Clear any obstacle between the remote control unit and the main unit.

No sound

• Check the connection to the amplifier.
• Check the operation of the amplifier.
• Muting is activated. Press the MUTE button. Select the correct source.
• Output protection has been activated. Turn off the unit, check for possible causes (e.g. short-circuited speaker cables, connected speakers with wrong impedance) and solve the problem. Wait 5 minutes before turning on the power again.

Specifications

Amplifier Section

General

Accessories

Power cord x 1
Remote control x 1
AAA battery x 2
Warranty card x 1
Owner's manual x 1

• Design and specifications are subject to change without notice.
• Weight and dimensions are approximate.
• Illustrations may differ slightly from production models.

IMPORTANT SAFETY PRECAUTIONS

RISK OF ELECTRIC SHOCK
DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

• DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
• IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
• USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

IN NORTH AMERICA USE ONLY ON 120 V SUPPLY.

Precautions concerning batteries

Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of nearby things. Please read and observe the following precautions carefully.

• Be sure to insert the batteries with correct positive (+) and negative (-) orientations.
• Use batteries of the same type. Never use different types of batteries together.
• If the remote control is not used for a long time (more than a month), remove the batteries to prevent them from leaking.
• If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones.
• Do not use batteries of types other than those specified. Do not mix new batteries with old ones or use different types of batteries together.
• Do not heat or disassemble batteries. Never throw batteries into fire or water.
• Do not carry or store batteries with other metallic objects. The batteries could short circuit, leak or explode.
• Never recharge a battery unless it is confirmed to be a rechargeable type.

Company names and product names in this document are the trademarks or registered trademarks of their respective owners.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.
    Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
• Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
•
  for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

Products with Class construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.
