The PCI reserved signals are routed to the PMC reserved pins in accordance with the
PMC specification to allow for future signal definitions or special user signaling.
Jn2 pins 58 and 64 are pull-ed up to VCC_IO with 4.7KΩ. Pin 60 is open. This
configuration works with most Monarch capable PMCs. Please contact Dynamic
Engineering if you need alternate settings.
Options
Dynamic Engineering offers multiple versions of the PCIBPMCX2 design.
The PCIBPMCx2 features cooling cutouts designed to support the addition of a fan in
one of two positions for each PMC. On PrPMCs and other PMCs with high thermal
loads the fan option is a good idea. On cards with a lower thermal profile the fan is not
needed. The fan produces 5 CFM in a small area to create a high LFM rating suitable
for most cooling requirements. The fan used has a relatively low noise rating for quiet

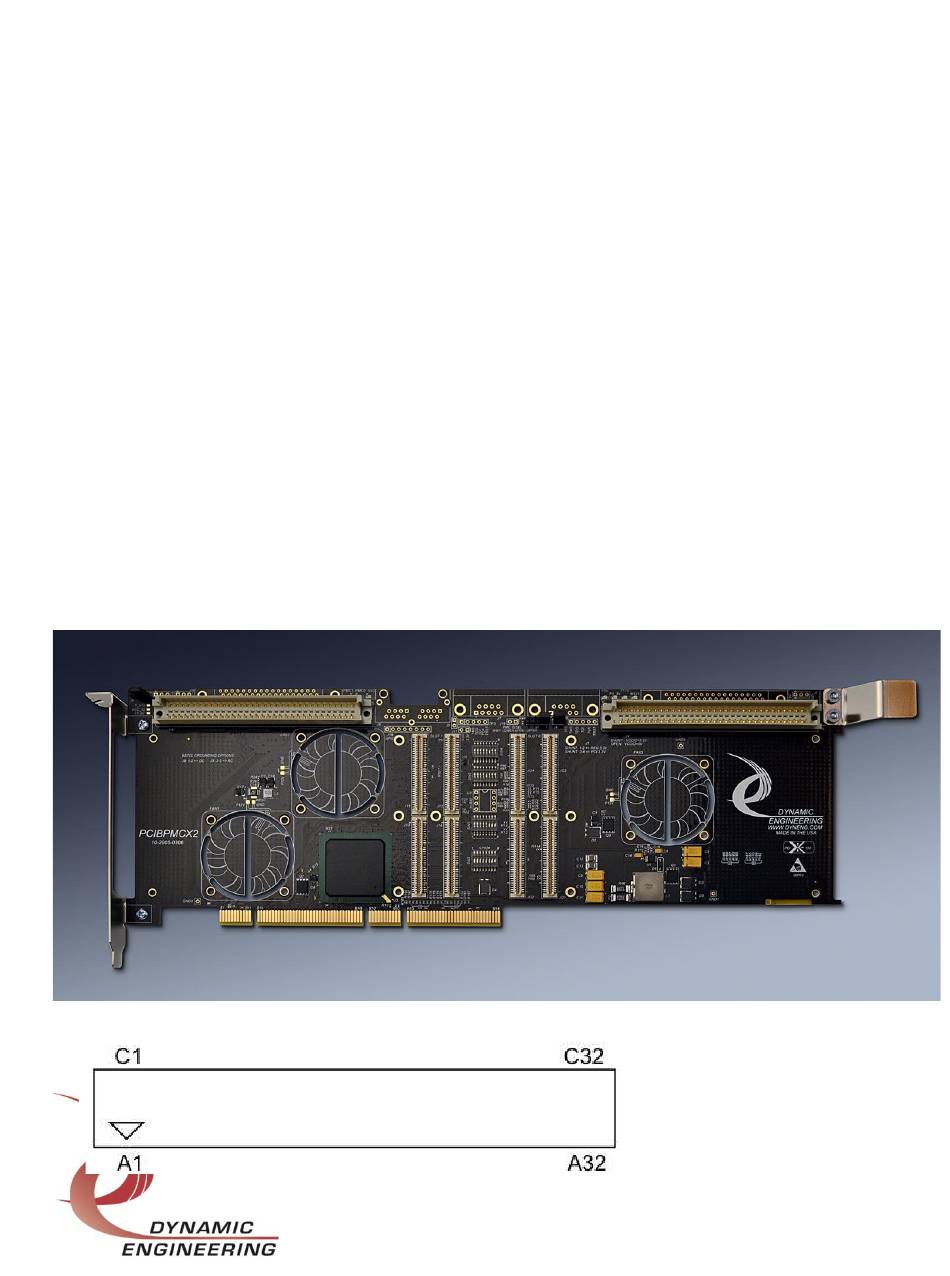

operation. Positions are numbered left to right in the photo below.
In addition, the PCIBPMCX2 has two options for Pn4 signal routing. VME style 2x32 pin
header [shown] or a SCSI style connector.
Please mix and match options, as you need them.
Revision 6 shown
