Dynamic Engineering PCIeBPMCX1 User Manual

Pcie and pmc compatible carrier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

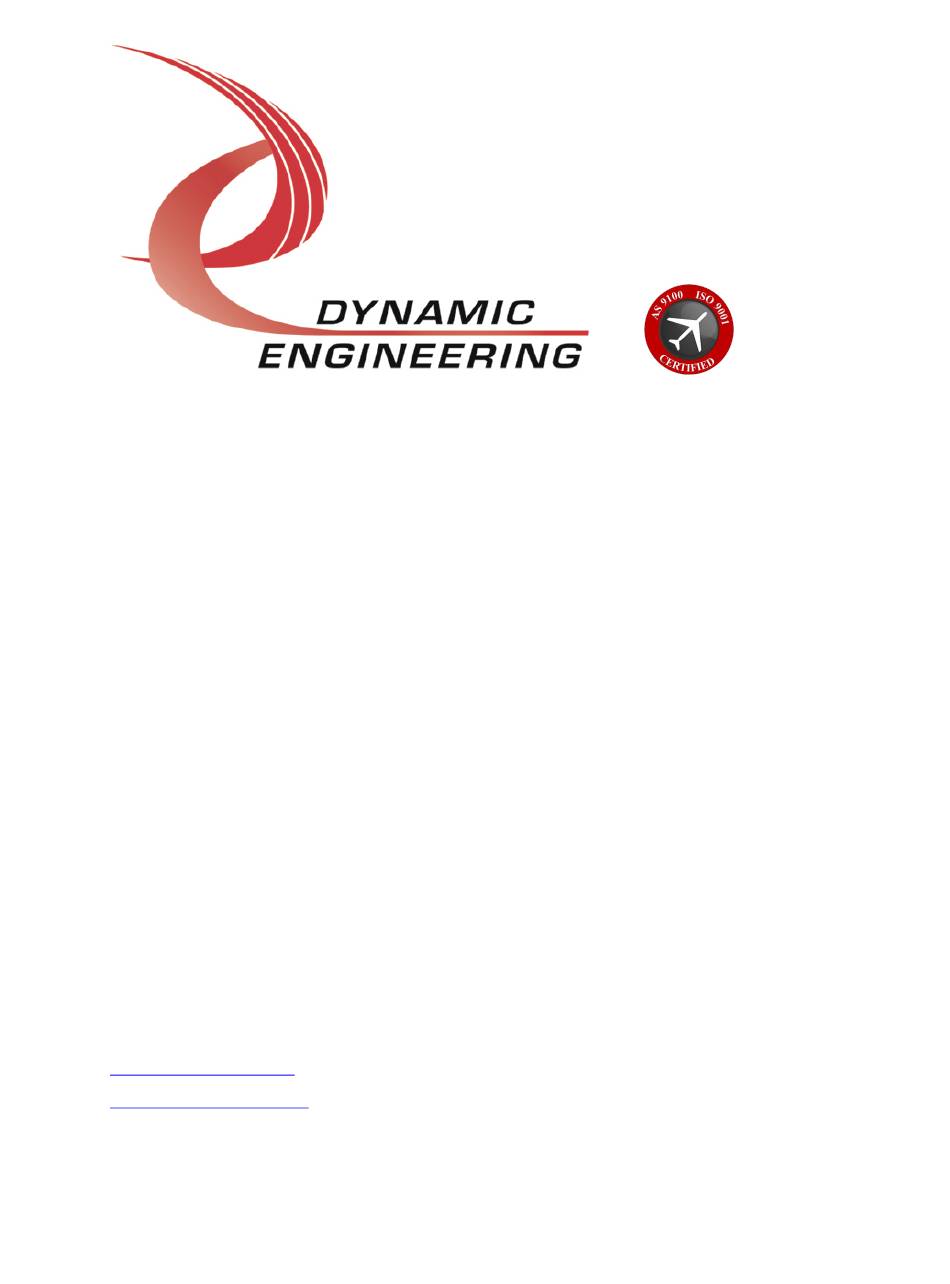

U
'
G
SER
S
UIDE
PCIeBPMCX1 - 4 PCIe Lane
PCIeBPMC – 1 PCIe Lane
PCIe and PMC Compatible Carrier
Document Revision 07p3
Corresponding Hardware: Revision 01- 13
Fab number:10-2007-07(1-13) for PCIeBPMCX1
Fab number:10-2008-070 (1-6) for PCIeBPMC
150 DuBois St. Suite B&C
Santa Cruz, CA 94060
Phone: 831-457-8891
www.dyneng.com
sales@dyneng.com
Est. 1988

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIeBPMCX1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynamic Engineering PCIeBPMCX1

Summary of Contents for Dynamic Engineering PCIeBPMCX1

  • Page 1 ’ UIDE PCIeBPMCX1 - 4 PCIe Lane PCIeBPMC – 1 PCIe Lane PCIe and PMC Compatible Carrier Document Revision 07p3 Corresponding Hardware: Revision 01- 13 Fab number:10-2007-07(1-13) for PCIeBPMCX1 Fab number:10-2008-070 (1-6) for PCIeBPMC 150 DuBois St. Suite B&C Santa Cruz, CA 94060 Phone: 831-457-8891 www.dyneng.com...
  • Page 2 Copyright© 2007-2024 Dynamic Engineering. All rights reserved All other trademarks are the property of their respective owners.
  • Page 3 Revised format and organization. • Note: Dynamic Engineering has made every effort to ensure that this manual is accurate and complete. Still, the company reserves the right to make improvements or changes in the product described in this document at any time and without notice. Furthermore, Dynamic Engineering assumes no liability arising out of the application or use of the device described herein.
  • Page 4 PCIe, PCI and PMC Compatible Carrier...

  • Page 5: Table Of Contents

    Table of Contents PRODUCT DESCRIPTION ............................ 3 KEY PRODUCT FEATURES ............................ 4 PRODUCT SPECIFICATIONS .......................... 6 PCIEBPMC OUTLINE DRAWING .......................... 7 INSTALLATION AND INTERFACING GUIDELINES .................. 8 ....................................8 NSTALLATION ....................................... 8 TART ....................................8 UIDELINES ............................... 9 HERMAL ONSIDERATIONS .................................. 9 WITCH ETTINGS Forced Operation Settings .............................. 9 Automatic Operation Settings ............................10 Bridge Special Selections ..............................10 INTERRUPTS ................................11 IDSEL SETTING ..............................12 PMC INTERFACE, JN2 PINS ..........................12 FAN OPTIONS .
  • Page 6 Dynamic Engineering’s products are not authorized for use as critical components in life support devices or systems without the express written approval of the president of Dynamic Engineering.

  • Page 7: Product Description

    A right-angle SCSI connector is standard. Vertical connectors can be installed. PCIeBPMC utilizes one PCIe lane to operate with PCI(x)-25, 33, 50, 66 speeds. PCIeBPMCX1 uses up to four PCIe lanes to operate with PCI-25, 33, 50, 66, 100 or 133 speeds.

  • Page 8: Key Product Features

    FAN options are recommended. The transparent bridge does not require any software interaction. When hosted by the PCIeBPMC or PCIeBPMCX1, your PMC drivers will work without modification. If settings are adjusted, the bridge can provide higher bandwidth for DMA transfers. Contact Dynamic Engineering for information about modifications.
  • Page 9 PCIeBPMCX1 PCIeBPMC User’s Guide Feature Comments Local power supplies for +5, 3.3 and With revision 10 boards, the 5V and 3.3V supplies can be disabled, delayed, or instant on. With revision 12 the power supplies source up to 15A ea.

  • Page 10: Product Specifications

    EMBEDDED SOLUTIONS Product Specifications Table 3: Product Specifications Logic Interfaces PMC: PCI, PCI-X Interface PCIe: 1-4 lanes Access types PCI bus accesses CLK rates supported 133, 100, 66, 50, 33, 25 MHz PCI clock rates Bus Size Supported 32- or 64-bit wide operation Software Interface Transparent Bridge.

  • Page 11: Pciebpmc Outline Drawing

    PCIeBPMCX1 PCIeBPMC User’s Guide PCIeBPMC Outline Drawing Figure 1: Revision 05 Single-lane Version, Top View Dimensions...

  • Page 12: Installation And Interfacing Guidelines

    Power all system power supplies from one switch. Connecting external voltage to the PCIeBPMCX1 when it is not powered can damage it and the rest of the host system. This problem may be avoided by turning all power supplies on and off at the same time. This applies more to the PMCs installed onto the PCIeBPMCX1 than the PCIEBPMCX1 itself and it is good system design when it can be achieved.

  • Page 13: Thermal Considerations

    PCIeBPMCX1 PCIeBPMC User’s Guide Thermal Considerations If the PMC installed has large heat dissipation, forced air cooling is recommended. A fan option is available for high thermal load PMCs or for a chassis with a lack of air circulation. The fan option is required for PMCs using 5A or more on either or both of the 5V or 3.3V rails.

  • Page 14: Automatic Operation Settings

    EMBEDDED SOLUTIONS Automatic Operation Settings Table 5: Automatic Frequency Selection Mode and Bus Rate PCI_PCIXCAP PCI_SEL100 PCI_M66EN Switches 1,2,3 Automatic selection C,O,O *Note: Switch 4 is used to select between the upper and lower frequency at each frequency level (25/33, 50/66, 100/133). Bridge Special Selections The DIPSWITCH has 8 switches.

  • Page 15: Interrupts

    PCIeBPMCX1 PCIeBPMC User’s Guide Switch 4 when open leaves PCI Select 100 pulled up to 3.3 though an 8.2KΩ resistor. If the switch is closed the signal is tied to ground. Note This feature was added for revision 2 and later boards.

  • Page 16: Idsel Setting

    The monarch pin is also tied to the DIPSWITCH for user selection. Fan Options PCIeBPMCX1 features cooling cutouts designed to support the addition of a fan in one and/or two positions for the PMC. On PrPMCs, and other PMCs, with high thermal loads, the fan option is recommended.

  • Page 17: Construction And Reliability

    12V, 3.3V, and 3.3V AUX are available on the backplane connector. PCIeBPMCX1 uses the 12V and 3.3V for internal functions. The 3.3V rail is used for the bridge and not connected to the PMC. The PCIe 12V is also used to generate the 1.8V for the Bridge.

  • Page 18: Power Supply Configuration

    EMBEDDED SOLUTIONS For designs using less than 5A on the 5V and 3.3V rails and operating in a “lab” environment, no additional cooling is required. With loads approaching 5A and/or operating at higher temperatures, forced air cooling is required. The zero slot fans provide enough air flow to extend the operational limit of the supplies. The full 15A may require additional airflow to the rear of the card depending on the operational temperature etc.

  • Page 19: Pinout Options

    NAME 1,2,3 4,5,6 Note: The 5V power on P5 is not used by the PCIeBPMCX1. P5 = -DDV option vertical mount Disk Drive style connector to mate with standard PC HDD power cable P3 = -AP option 6 position power style connector to mate with standard PC power supply cable.

  • Page 20: J2, J3 Scsi Power Pinout

    EMBEDDED SOLUTIONS J2, J3 SCSI Power Pinout Located at the rear of the card next to the SCSI connector. J2 and J3 are three pin headers used to select the definition of pins 33,67(J2) and 34,68(J3) on the SCSI connector. The headers are installed if the –SCSI option is selected when ordering. Shunting pins 1-2 applies 3.3V, 2-3 applies ground.

  • Page 21: Pmc Module I/O Interface

    PCIeBPMCX1 PCIeBPMC User’s Guide PMC Module I/O Interface The table below provides the pin assignments for the PMC Module I/O Interface pin assignment – from Pn4 to the PCIeBPMCX1 connectors. Table 7: PCIEBPMCX1 PN4 Interface Standard SCSI II [P2] Continued SCSI II [P2] 67 Open, +3.3 or GND...

  • Page 22: Warranty And Repair

    Include a return address and the telephone number of a technical contact. For out- of-warranty repairs, a purchase order for repair charges must accompany the return. Dynamic Engineering will not be responsible for damages due to improper packaging of returned items. For service on Dynamic Engineering Products not purchased directly from Dynamic Engineering contact your reseller.

  • Page 23: Order Information

    -DDV add vertical disk drive power connector -AP add high power connector – 6 position PC power cable HDEterm68 68 pin SCSI II to 68 screw terminal converter www.dyneng.com/HDEterm68.html HDEcabl68 68 pin SCSI cable available in several lengths www.dyneng.com/HDEcabl68.html All information provided Copyright© Dynamic Engineering...
