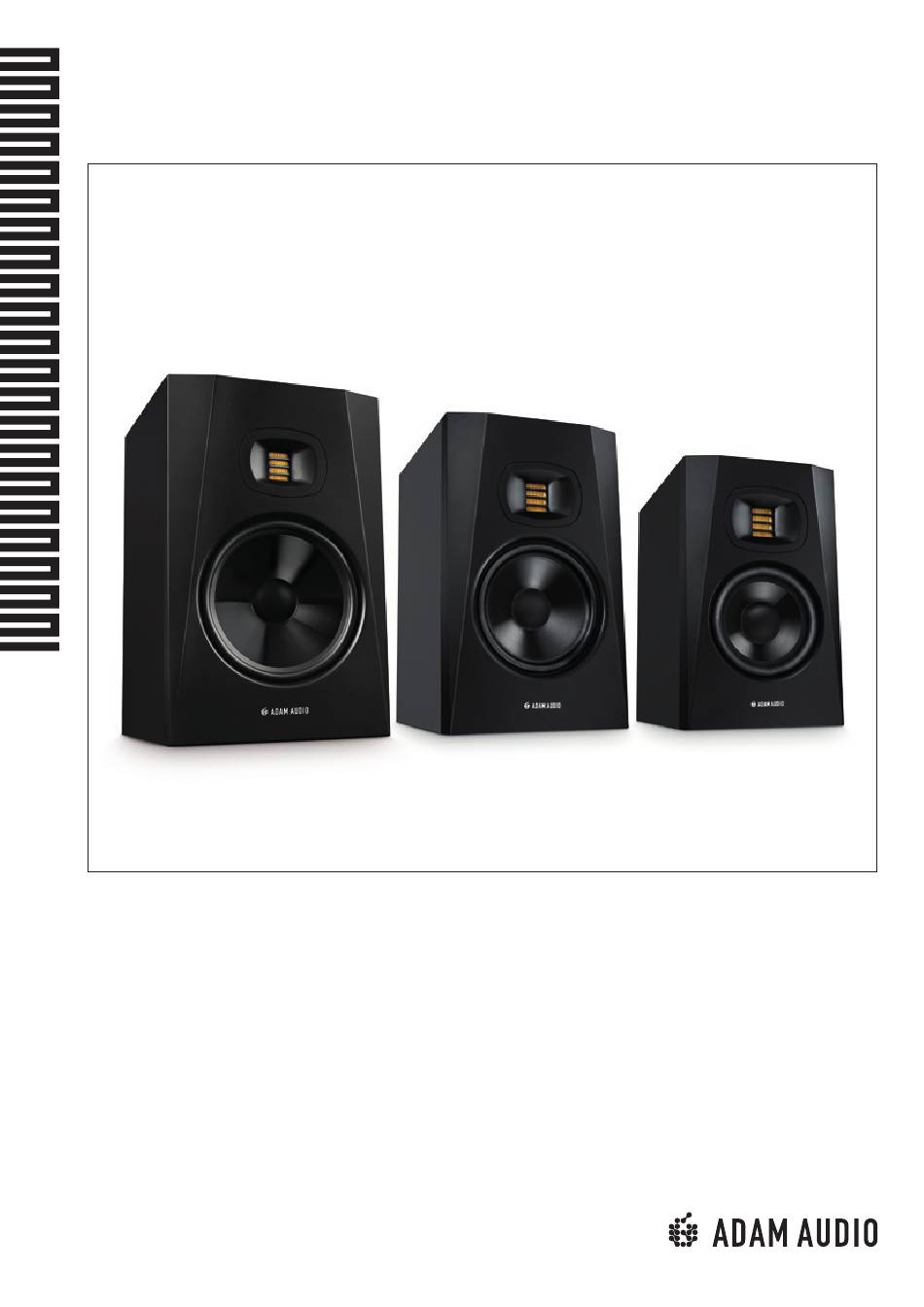

- Page 1 SERIES OPERATION MANUAL...
-
Page 2: Congratulations
CONGRATULATIONS! ...on the purchase of your new ADAM Audio T Series monitors. Your T Series monitors are the culmination of two decades of research into advanced transducer, waveguide, amplification, DSP and loudspeaker cabinet technologies. The result is a professional reference monitor featuring rock-solid imaging, an eminently wide sweet spot, superi- or transient response, extended frequency response, and unmasked clarity and detail across the audio spectrum. -
Page 3: Table Of Contents
CONTENTS Page CONGRATULATIONS! CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS 2. INTRODUCING T SERIES 3. OPTIMAL PLACEMENT OF YOUR MONITORS 4. REAR-PANEL FEATURES 5. AUDIO CONNECTIONS AND LEVEL SETTINGS 6. USING THE HF AND LF SWITCHES ON THE REAR PANEL 7. TROUBLESHOOTING 8. -
Page 4: Important Safety Instructions
[e.g. vases, etc.] onto the speaker. Use only with stands, tripods or brackets specified by the manufacturer, or sold with the apparatus. When moving the loudspeakers on a trolley, avoid injuries; take care and do not over-balance the trolley. T SERIES MANUAL [ENGLISH]... - Page 5 T SERIES MANUAL [ENGLISH]...
-
Page 6: Introducing T Series

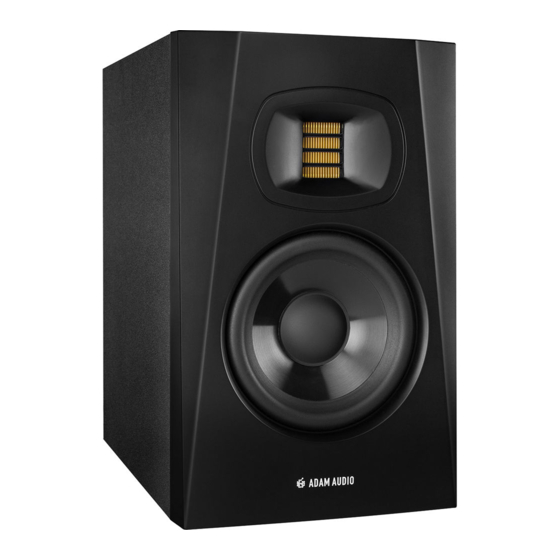

The U-ART tweeter is fitted to a new, precision waveguide that provides highly uniform dispersion of high frequencies. The result is an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working. The T Series’ all- new polypropylene woofer and the cabinet’s rear-firing bass-reflex port together provide ultra-smooth, highly accurate midrange and extended bass response. - Page 7 VERSATILE CONNECTIONS AND CONTROLS On the rear side of each T Series monitor, a sturdy metal backplate is home to a comprehensive assortment of controls and analog input connections that adapt your monitors to virtually any professional system: →...
-
Page 8: Optimal Placement Of Your Monitors
However, you’ll get the very best sound out of your monitors by placing them at optimal positions in your room. T Series monitors incorporate a nearfield design and should be placed on speaker stands, a console bridge or a desktop in relatively close proximity to [ideally about three feet from] your mix position. - Page 9 T Series monitors’ precise imaging from being changed. Fig. 2 To avoid introducing unwanted boosts and dips in bass-frequency response, avoid placing each monitor so that its woofer is an equal distance from two or more nearby boundaries [for example, front and side walls, or a wall and floor].
- Page 10 If this isn’t feasible, angle the monitors up or down so that the tweeters are aiming at your ears [see Fig. 4]; we recommend sitting your T Series monitors on isolated speaker stands that can be adjusted to modify the tilt angle of your cabinets so that the tweeters are aiming at your ears.
- Page 11 [8] [9] T SERIES MANUAL [ENGLISH]...
-
Page 12: Rear-Panel Features
[8] POWER SWITCH – Set this switch to the ON position to apply power to the monitor. An associated green LED will light when the monitor is turned on. [9] POWER CONNECTOR – Use this standard three-prong IEC AC power receptacle to connect the detachable AC cord to the monitor. T SERIES MANUAL [ENGLISH]... -
Page 13: Audio Connections And Level Settings
AC mains voltages ranging from 100 to 240 V, at 50/60 Hz, you don’t have to fuss with selecting a correct voltage switch setting for safe operation. On the rear panel of your T Series monitor, an XLR connector and RCA jack respectively accept balanced +4 dBu and unbalanced -10 dBV nominal input levels. The XLR connector’s wiring follows the industry standard convention: Pin 1 is ground, Pin 2 is... - Page 14 Please play complex program material through your T Series monitors for at least eight hours before using them on a critical project. → At the end of each session, turn off your T Series monitors before powering down any equipment connected to them.
-
Page 15: Using The Hf And Lf Switches On The Rear Panel
6. USING THE HF AND LF SWITCHES ON THE REAR PANEL On the rear panel for each T Series monitor, two 3-way switches labeled “LF” and “HF” boost or cut the monitor’s respective high- and low-frequency responses by 2 dB. Each switch also provides a neutral middle position, labeled “0,”... - Page 16 16 inches away from a wall, try setting the LF switch to the “-2 dB” position to compensate for such placement naturally boosting bass frequencies. → If you wish to listen to your T Series monitors with exaggerated bass response, set the LF switch to the “+2 dB” position.
-
Page 17: Troubleshooting
If none of the above can be identified as the source of the problem, your speakers may be defective, in which case contact ADAM Audio or the local representative/distributor [see www.adam-audio.com for a list]. -
Page 18: Maintenance
It is extremely difficult to protect your loudspeakers so that they can be shipped without damage if the original packaging is not available. We cannot accept responsibility for damages arising due to improper packaging being used when the loudspeakers are in transit. T SERIES MANUAL [ENGLISH]... -
Page 19: Environmental Information
Waste Electrical/Electronic Equipment [WEEE]. We hope you won‘t be throwing your T Series speakers away for many years – but when the time eventually comes, please consult your local authorities for further information on how to safely dispose of them. -
Page 20: Warranty Terms
Service may be supplied by your ADAM Audio national distributor in the country of residence. In this case, the service costs have to be paid for by the owner of the product, whereas the costs for parts to be repaired or replaced are free of charge. -
Page 21: Technical Data
100 – 240 VAC +/- 10 % 100 – 240 VAC +/- 10 % 100 – 240 VAC +/- 10 % AC Input Voltage 50/60 Hz 50/60 Hz 50/60 Hz 132 W max 132 W max 150 W max T SERIES MANUAL [ENGLISH]... - Page 22 F +49 30-863 00 97-7 EMAIL: USA-INFO@ADAM-AUDIO.COM INFO@ADAM-AUDIO.COM T SERIES Manual © ADAM Audio GmbH 2019 While every effort has been made to ensure the accuracy of the information supplied herein, ADAM Audio GmbH cannot be held responsible for any errors or omissions. WWW.ADAM-AUDIO.COM...
