Summary of Contents for Adam HM3
- Page 1 Home Monitor Operation manual english english / deutsch...

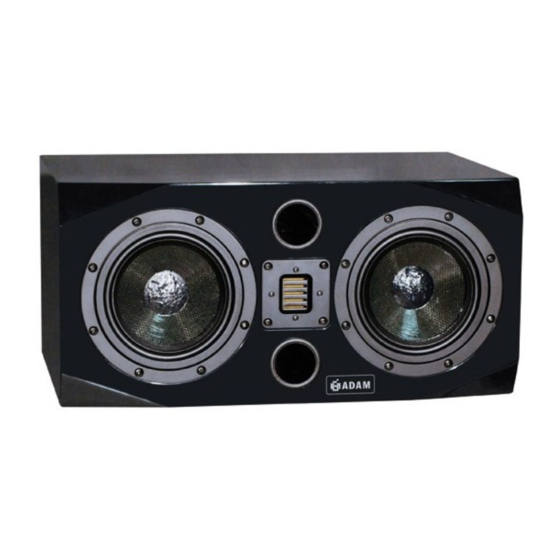

- Page 2 The HM3 is a compact near field monitor. It is an ideal tool for small control rooms, recording vehicles and post-production suites. It is also perfectly suited for situations where a combination of no-compromise sound reproduction and a small footprint is required.
-
Page 3: Setting Up Your Speakers
• there are 2 kinds of HM3´s. To avoid interferences between the woofers of the HM3 one of the units stops at 150 Hz, like a built in subwoofer, the other one goes up to 1800 Hz. You find an A or B label on the back side of the monitors. - Page 4 Setting up your speakers The Tweeter should be positioned approximately at the height of your ears. In case you need to position the speaker in a significant lower or higher position, the monitor should be angled accordingly. Placement of 2 speakers The ideal placement of two speakers and a listener in a two-channel stereo listening situation are the corner points of a equilateral triangle (60°...
- Page 5 This is one of the main reasons for the small 1-2% efficiency of conventional speakers. All ADAM speaker systems take a completely new approach in kinematics to move air and overcome this problem. Based on the original works of Dr. Oskar Heil, who invented his “Air Motion Transformer”...
- Page 6 Service may be supplied by your ADAM Audio national distributor in the coun- try of residence. In this case, the service costs have to be paid for by the owner of the product whereas the costs for parts to be repaired or replaced are free of charge.
-
Page 7: Technical Data
HM3 Front HM3 Back 7“ HexaCone® woofer (2x) Bass reflex port (2x) Tweeter level switch: l= 0 A.R.T. Tweeter 0= -1.5dB l 0 ll ll= +1.5dB Speaker terminal Technical Data Woofer/Subwoofer General Data Basket ø 7.5” / 186 mm Freq. response ±3dB... - Page 8 ADAM Audio GmbH ADAM Audio UK Ltd. Ederstr. 16 email: uk-info@adam-audio.com 12059 Berlin GERMANY ADAM Audio USA Inc. email: usa-info@adam-audio.com tel: +49 30-863 00 97-0 ADAM Audio China fax: +49 30-863 00 97-7 www.adam-audio.com email: info@adam-audio.com email: sales@adam-audio-china.com...
