Politec MANA IR SMA Installation Manual

Infrared barrier for perimeter protection range 250 m, sma technology and rs485 output.
Hide thumbs Also See for MANA IR SMA:

Advertisement

Table of Contents

Infrared barrier for perimeter
protection range 250 m
SMA technology
and RS485 output.
Installation Manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MANA IR SMA and is the answer not in the manual?

Questions and answers

Related Manuals for Politec MANA IR SMA

Summary of Contents for Politec MANA IR SMA

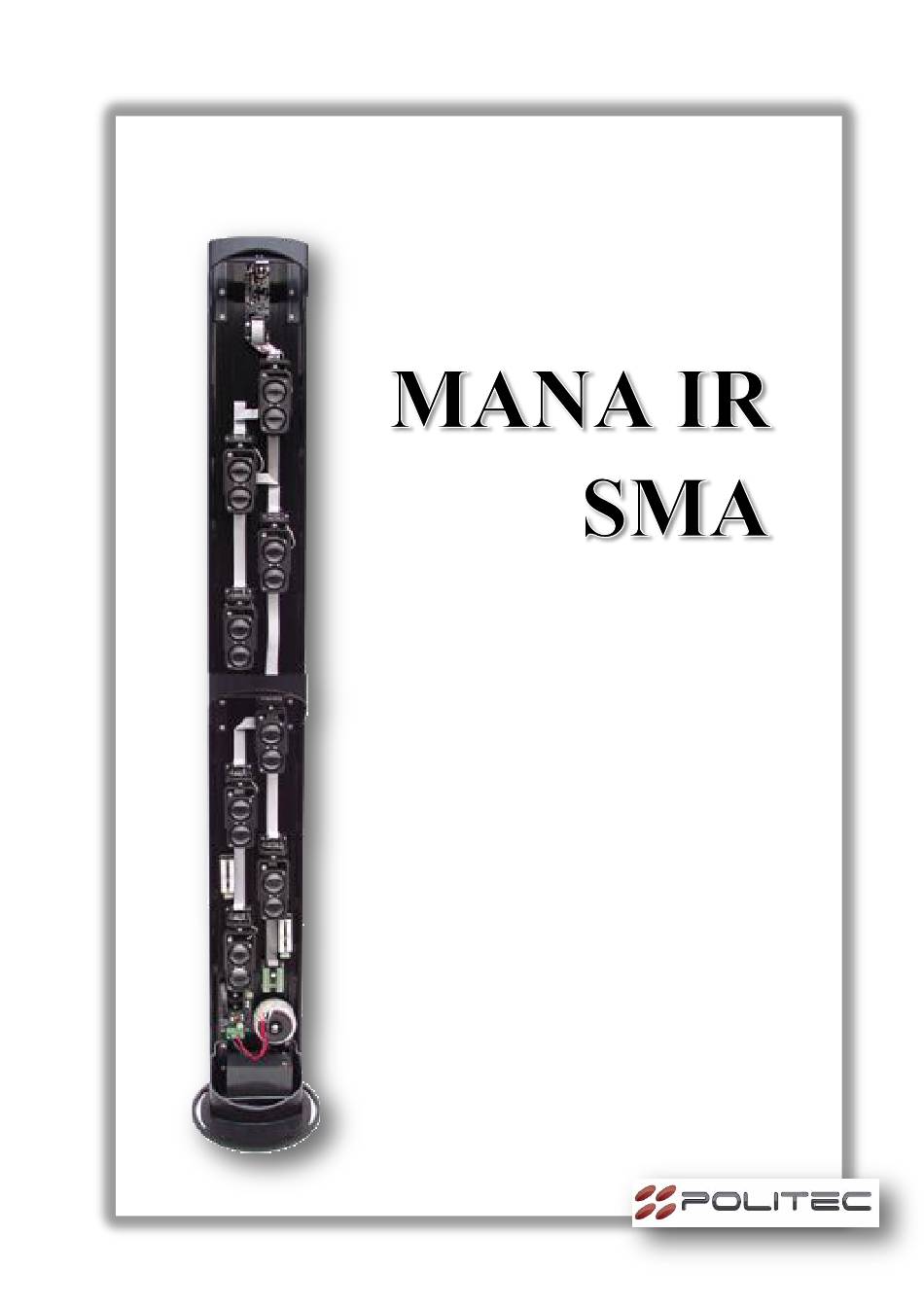

  • Page 1 Infrared barrier for perimeter protection range 250 m SMA technology and RS485 output. Installation Manual.
  • Page 2  Once installed, you must ensure that the barrier is perfectly closed through its tight lids.  Use the supplied cable gland for the lower input cables. Not using appropriate accessories will invalidate the degree of protection (IP). POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 3 (MES9012 to MES9C) Flat cable 8 poles BUS (MES9012 a MES9C) 7 Ah battery support (optional) Aluminum profile Terminal board SMA Supply card 12Vcc/24Vac Mana transformer 160 VA Aluminum base. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 4 Use the supplied nuts and bolts to assemble the cable pit. Overlap the right-hand edge of one side pan to the left-hand edge of the next. Assembled cable pit, ensure that the mounting flange is uppermost. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 5 Once fully assembled the cable pit is installed ten centimeters below ground level and is embedded in concrete; once correctly installed it can be covered (with turf or suitable decking) so that only the IR beam tower is visible . REGOLATION EXAMPLE POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...

  • Page 6: Transformer Mounting

    Move the screw 60mm, as shown in the figure, in the perforated plate and screw the bolt lock. Place the plate in the cavity, especially left, so you can screw tighten the screws to the column and have enough space for the battery. Screw the 4 screws POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 7 Insert the sheath, the transformer then again the sheath and plate and fix everything with the nut. Follow the wiring instruction in the manual. Recommended placement in the barrier POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...

  • Page 8: Supply Connection

    SUPPLY CONNECTION FUSE A: 5A-24Vac FUSE B: 0,8A-13,8Vac POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 9 The cable size depends on the consumption of the columns and the resistance of the cable to the distances involved. Cable 230Vac (culomn power) Cable 12Vcc (sync + signal) POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 10 - S IN 20 - S OUT (TX=>RX) output (TX=>RX) Not utilized 10 21 Not utilized Not utilized 11 22 Not utilized NB: DISQUALIFICATION AND ANTIMASK ARE NEGATIVE OPEN COLLECTOR OUTPUTS POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 11 The power of the heaters is by default set to 24 V (ac or dc), but you can set it to 12 VDC repositioning the jumper on MES9C and on each optical as shown. Heaters supply MES9C board Optical POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 12 2X0, 22 to connect the sync and the screens to negative Vdc of power supply board for both columns. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 13 For more information, refer to "Installation Manual Adebus & AdebusExplorer" Connection to serial port for each column MES9C MES9C culomn 1 culomn 2 ADEBUS POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 14 SUPPLY LED HEATERS SUPPLY 12Vdc 24Vac 1 2 3 4 5 6 7 1 2 3 4 5 6 NB: The settings relating to addresses are already set to Default. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 15 TEST SIGNAL J4 FEEBLE SIGNAL LED HEATERS SUPPLY 1 2 3 4 5 6 7 1 2 3 4 5 6 NB: The settings relating to addresses are already set to Default. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 16 1 2 3 4 5 6 1 2 3 4 5 6 7 1 2 3 4 5 6 It should be set to ON the DIP on the motherboard RX exclusion 1 + 2 POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 17 Vertical adjustment Horizontal adjustment SCREW N.B.: FASTEN THE UNLOCKING SCREW AFTER THE ADJUSTMENT POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 18 DIP switch 7 to ON and pressing the dedicated button for 3 seconds until the the BUZZER and the LED TEST turns ON, (with high brightness) ORANGE DIP 7 ON TO ACTIVATE THE LED DIP 7 ON TEST BUTTON POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 19 (until the LEDs is fix on and the whistle of the corresponding BUZZER) indicate a better ALIGNMENT. With a FULL rotation on the horizontal RX lens, is carried out the SCANNING of the optical signal. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 20 OFF THE LED NB: you can SEE the calibration value through the multimeter on each optical receiver. For this procedure, you must have the pair of lenses (TX-RX) in TEST. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 21 4) Put in test the optical TX4 and RX4 and proceed with the calibration as explained N.B.: during the testing phase of an optical transmitter the other TX not in test are switched off automatically. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 22 4) Put in test the optical TX4 and RX1 and proceed with the calibration as explained on p. 13 and 14. REPEAT the setting of RX2, RX3 and RX4. Make sure that it still aligned with RX1. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 23 HEATINGS LED Yellow SYNCHRONISM SYNC Yellow Response time 3 TRIMMER adjustment 4 TEST Function selector 5 DIP SWITCH 12 (pag. 23) 6 TAMPER 7 DIP SWITCH TX 8 DIP SWITCH RX POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 24 Normally off, when turned on the heater is on. LED SINC The LED SINC continuously flashing indicates the proper Indicates the functioning of operation and wiring of sync both outgoing and incoming. the synchronism POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
  • Page 25 In the ON position closes the RS485 communication. To finish you need to put in RS485 ON only the switches of the column as far as the entire line. LEDS In the ON position activates the LEDs. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...

  • Page 26: Response Time Adjustment

    (ex. animals). Adjusting the potentiometer clockwise decreases the trip time until 50ms. In this condition ensures the alarm of a person crossing the barrier running at maximum speed. POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...

  • Page 27: Technical Characteristics

    And/Or su Rx / AND 1° e 2°. REMOTABLE CONTROLS AND REMOTO / AND 1° e 2° beam. PLASTIC SCREEN Specific for Infrared with HUV filter. With Tamper. PROTECTION DEGREE IP 54 POLITEC s.r.l. | Manual MANA IR SMA – Ver. 2.0...
