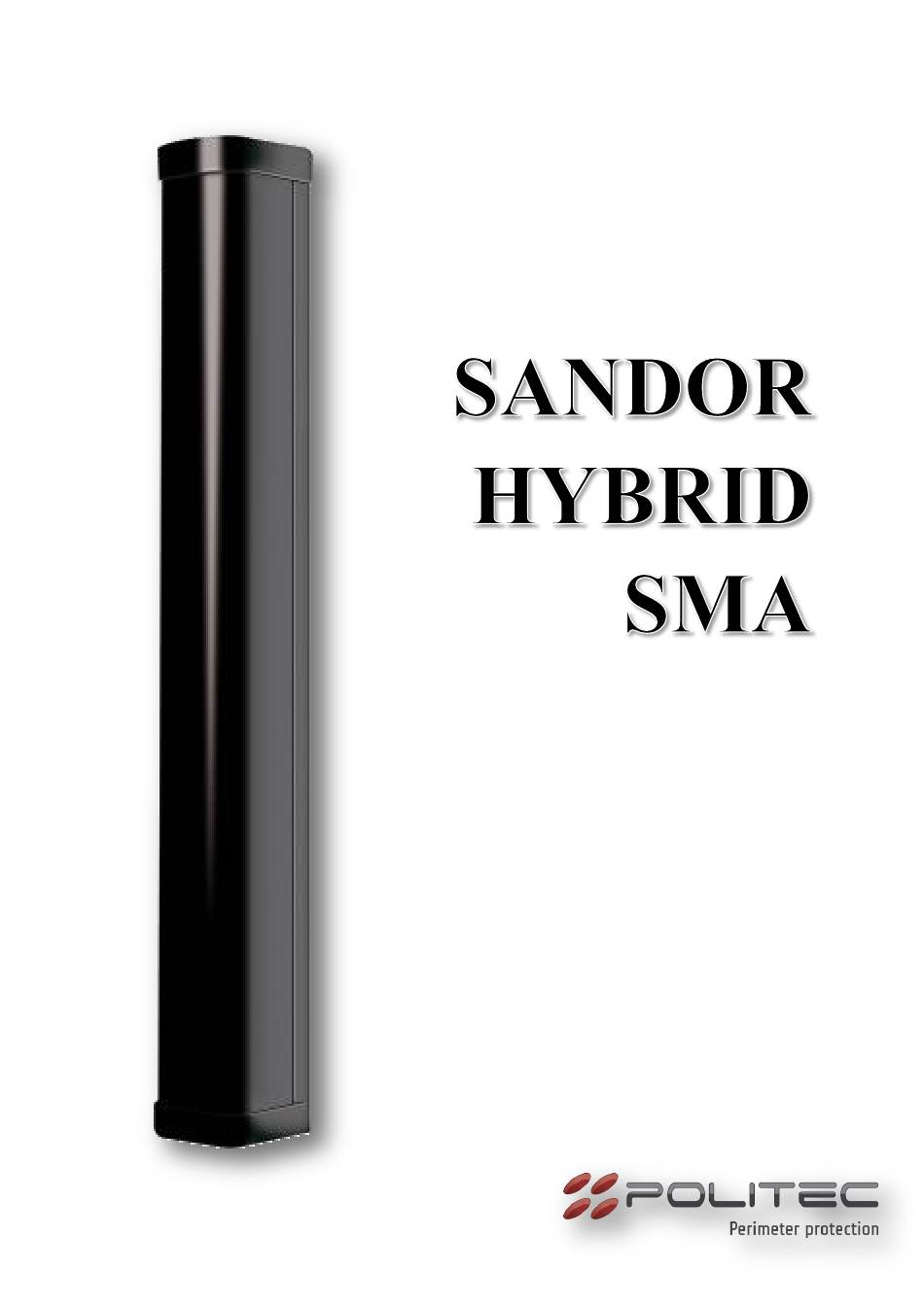

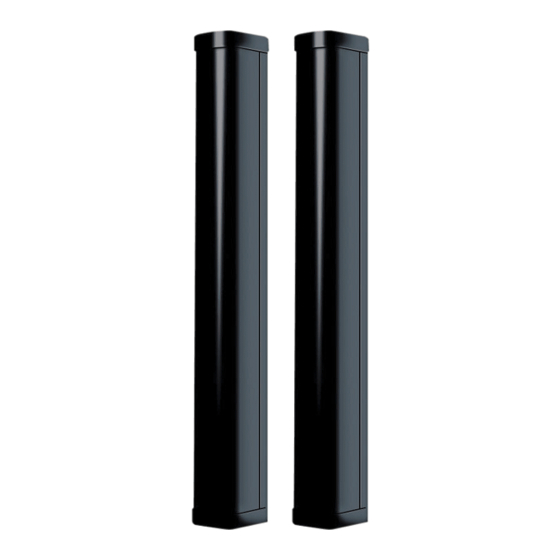

- Page 1 Technical manual...
- Page 2 Do not install multiple beams where the transmitter beam can interfere with other receiver beams. It is always better place either transmitter or receivers back to back. POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
-
Page 3: Main Components
Aluminium profile IR cover Caps Opticals TX & RX Terminals card Mother board Battery 3.6 V 19 Ah Wireless trasmitter position Power supply 12Vdc Thermostat board Power supply board 3,6 V POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2... - Page 4 2. MOUNTING SAMPLES Pole Wall Wall mounting mounting mounting with with with SAN/PL SAN/SD SAN/PL POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
-
Page 5: Mounting With Brackets
N.B.: we recommend the use of the brackets SAN / PL on the wall when you place the protection of gates (windows, doors, ...) along the wall to avoid small obstacles (hinges, edges of window sills, ...) that could create signal attenuation. POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2... - Page 6 3. INSTALLATION SAMPLES Standard perimeter protection: In the case of overlapped barriers: POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 7 4. WIRING MOTHERBOARD TX or RX POWER SUPPLY BOARD 3.6V 12 Vdc THERMOSTAT BOARD 220 Vac POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 8 5. CONFIGURATION OF THE OPTICALS OPTICAL TX TAMPER TEST LED TEST BUTTON 1 2 3 4 5 6 1 2 3 4 5 6 NB: The address settings as per default . POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 9 OPTICAL RX TAMPER TEST LED SIGNAL TEST BUTTON 1 2 3 4 5 6 1 2 3 4 5 6 NB: The address settings as per default . POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
-
Page 10: Battery Connection
6. SANDOR WS SMA TX MOTHER BOARD TAMPER LED ON BATTERY CONNECTION 3,6 V – 19 Ah N.B.: When the motherboard is supplied the LED ON will flash. POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2... - Page 11 BATTERY CONNECTION AND FOR REMOTE 3,6 V – 19 Ah (AND) ANTIMASK POUTPUT (AMK) ALARM SUPPLY TAMPER N.B.: When the motherboard is supplied by battery the TEST LED will flash POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 12 ON - Anti crawling active. In this condition if the first beam (lower) is interrupted for A. CRAWL more than 2 seconds, it will generate an alarm, independently of its configuration (i.e. AND) TEST Put in ON activates the test phases POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 13 For proper alignment once installed barriers orient optical groups of the transmitters and receivers each optical groups in the direction of others. Adjusting horizontally through the manual movement, and vertically through the front screws placed above the lenses. Horizontal adjustment Vertical adjustment POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 14 Place the filter in front of the optics TX positioning the two hooks on the pins of the fork optics to effectively search the signal alignment with critical conditions. Simply applying the filter only on the TX, no need to repeat the operation RX. POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 15 Start the alignment of the barrier is on activating the transmitter optics TX TEST, pressing the dedicated button for about 3 seconds until the TEST LED turns orange. ORANGE TEST BUTTON POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 16 By a FULL rotation on the horizontal axis of the RECEIVER optics , you make the SCANNING of the optical signal. Rotating the optical RX find the maximum value of which corresponds to the ALIGNMENT LED (high-brightness) FIXED and whistle CONTINUOUS of the BUZZER. POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 17 SE IL LED DI TEST CONTINUA A LAMPEGGIARE VELOCEMENTE DURANTE IL NORMALE FUNZIONAMENTO SIGNIFICA CHE ESISTE UNA FONTE DI DISTURBO INFRAROSSO ( ALTRA BARRIERA, FOTOCELLULA CANCELLO, …) CHE NON PERMETTE IL CORRETTO FUNZIONAMENTO DELLA BARRIERA. POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 18 Put TEST optics TX4 and RX4 and proceed with the calibration as previously explained. N.B.: During the alignment phase of a transmitter the other TX are switched off automatically. POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
- Page 19 Adjusting the potentiometer clockwise to decrease the alarm delay up to 50ms. In this condition ensures the alarm of a person crossing the barrier running at maximum speed. POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
-
Page 20: Technical Characteristics
DIMENSIONE PROFILO LXPXH 60 mm x 60 mm x (da 600 mm a 4000 mm) N° Battery life Beams Double Single battery batteries 42 months 36 months 24 months 48 months POLITEC s.r.l. | Manual Sandor HYBRID SMA – Ver. 1.2...
