Politec Sandor Plus Installation And Commissioning Manual

Double beam
Hide thumbs
Table of Contents

Advertisement

Quick Links

Double beam
Installation And
Commissioning
manual
POLITEC s.r.l.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sandor Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Politec Sandor Plus

Summary of Contents for Politec Sandor Plus

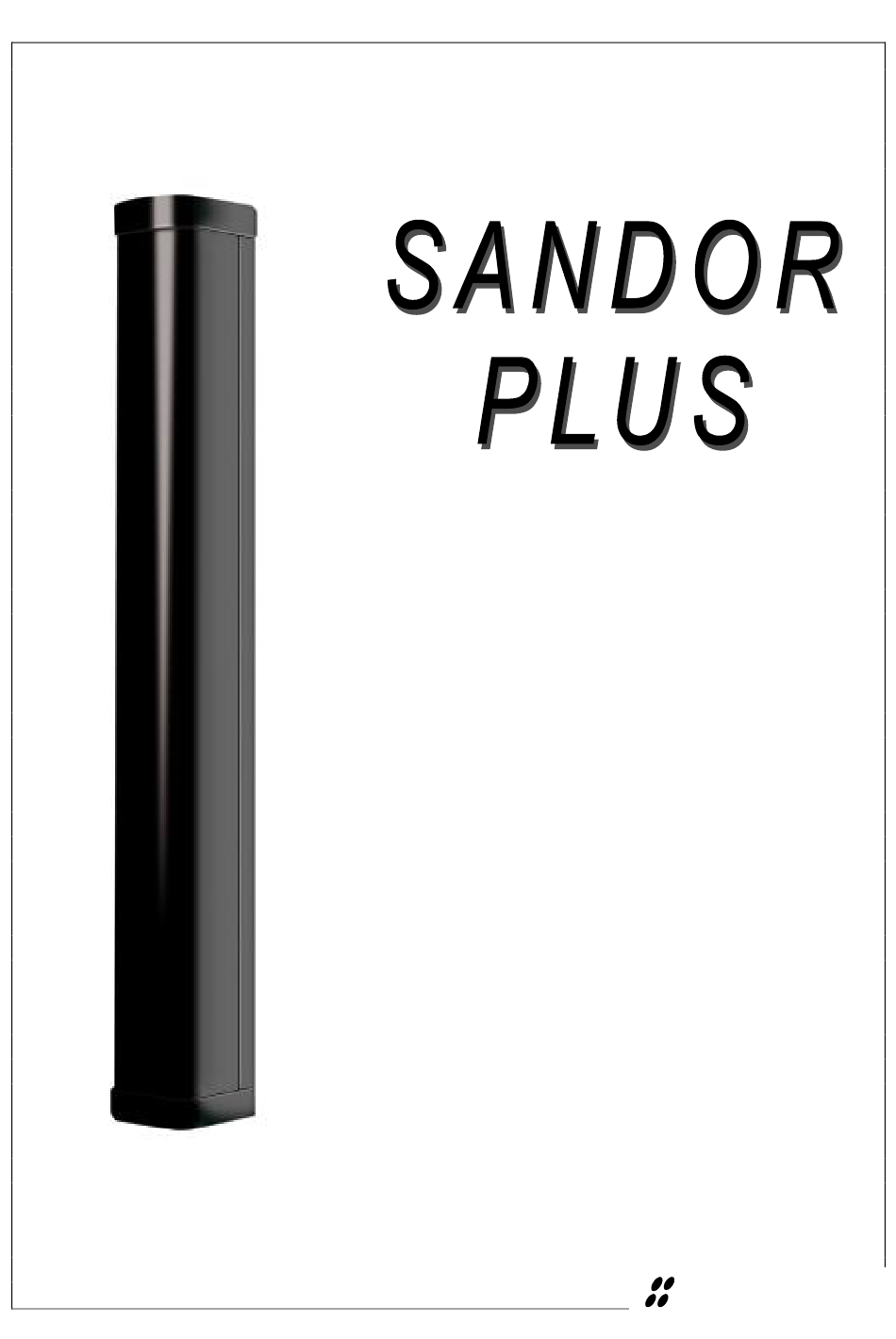

  • Page 1 Double beam Installation And Commissioning manual POLITEC s.r.l.

  • Page 2: Table Of Contents

    Index Main component list Pag. Installation reccomendations Pag. Mounting the bracket Pag. Installation example Pag. Application example Pag. Alignment Pag. Vertical alignment Pag. Horizontal alignment Pag. Terminal connections for and to the P.C.B Pag. Synchronism cabling Pag. Set-up using the test points Pag.
  • Page 3 Main component list N° Q.tà Desciption Part Mounting plate Front cover Front cover top/end caps Trasmitter / receiver optic Flat cable Receiver / trasmitter P.C.B. Terminal board P.C.B. Bracket...

  • Page 4: Mounting The Bracket

    Mounting the bracket Insert the bracket back to mounting plate A palo Pole mounting Diameter 50 mm Wall mounting...

  • Page 5: Installation Example

    Installation example Pole Wall mounting Wall mounting mounting With interposed brakets...

  • Page 6: Application Example

    Application example Application in Application couple TX/RX, couple, crossed crossed beams beams Application in Application in couple parallel perimeter beams control...

  • Page 7: Alignment

    Alignment Initial alignment Once beam columns have been correctly installed point the transmitter optics towards its corresponding receiver and vice versa, repeat for all the beam pairs. This is achieved by manually positioning the lens holder horizontally and vertically using one of the two screws (which ever is more convenient) to be found above the lens.

  • Page 8: Terminal Connections For And To The P.c.b

    Terminal connections for and to the P.C.B. +12 Vdc 24 Vac -12 Vdc 24 Vac G .IN +12 Vdc 24 Vac A ND -12 Vdc 24 Vac BEAM G.IN SG N LO W R L2 ANTI MASK BEAM +S.OUT + S.IN SGN LOW -S.OUT -S.IN...

  • Page 9: Synchronism Cabling

    Synchronism cabling Arrangement Tx/Rx synchronism connection Sincr Sincr + Sincr Sincr Sincr Sincr Synchronisms out are the transmitters which are connected with receivers to which synchronism In have to be linked.

  • Page 10: Set-Up Using The Test Points

    Set-up using the test points It is necessary to put the transmitter PBC into test mode in order to complete the alignment. Phase 1 Insert into ON position the TEST P SET Link on the main transmitter PCB Phase 2 Move in OFF the dip switch corresponding to the beam to be aligned. Phase 3 Connect the Voltmeter, using the cable supplied, to the corresponding receiver test point, move the transmitter optics slightly in both axes (horizontal and vertical) until the maximum voltage is obtained.
  • Page 11 Transmitter The optical identifications are factory set...
  • Page 12 Receiver The optical identifications are factory set The optical identifications are factory set...

  • Page 13: Factory Setting For Tx And Rx Sequence Identification

    Factory setting for Tx and Rx sequence identification It is necessary to put the transmitter PBC into test mode in order to complete the alignment. Phase 1 Insert into ON position the TEST P SET Link on the main transmitter PCB Phase 2 Move in OFF the dip switch corresponding to the beam to be aligned.

  • Page 14: Set Up Examples

    Set up examples Jumper TEST POINT SET on Transmitters main P.C.B. Tx into ON Position Move the dip switch 1 in OFF Replace in ON after each set up Move the dip switch 2 in OFF Replace in ON after each set up Move the dip switch 3 in OFF Replace in ON after each set up Move the dip switch 4 in OFF...

  • Page 15: P.c.b Setting And Programming

    P.C.B setting and programming  1. MASTER ON : Normal operation  2. MASTER OFF : Optic n.1 gives alarm only if interrupted for more than 2sec.  3. SYNC WIRE ON : Environment disqualification with low signal on 2 optics random ...

  • Page 16: Functional Description Of The Led's

    Functional description of the leds The five LED’s on the PCB give system status indication. Placing the appropriate link into the ON position can enable these LEDs. It is good practice, to increase security, to place the jumper (link) into the OFF position, once the beams have been set-up.
  • Page 17 Description jumper settings characteristics The PCB can be set-up in a number of different configurations that are selected using the appropriate Links. LEDS When this jumper is ON , the leds are activated. AND 1 + 2 This configuration can be useful when tall grass and small animals are present .
  • Page 18 MASTER ON/OFF: Positioned in ON it gives to the barrier the normal operativity to the barrier, if placed in OFF enables the “anti-creeping”, the first optic to activate the alarm must be interrupted for more than 2 seconds. SYNC ON : SYNC WIRE ON Environment disqualification with low signal on 2 optics random SYNC AUTO ON Environment disqualification with low signal on 1...

  • Page 19: Technical Specifications

    Technical specifications Max range 1350 m. Max range indoors 450 m. Max range outdoors 100 m. Synchronization wire Optical sensors Synchronised beams, twisted pair connection Enviroment Disqualification Automatic with signal towards exterior. masked sensoring with another infrared signal, with signaling Masking towards exterior Available KIT heaters for lower...
  • Page 20 POLITEC s.r.l. Via Adda 66/68 – 20040 – Bellusco (Mi) – Italia Tel. + 39.(0)39.6883019 r.a. – Fax + 39.(0)39.6200471 www.politecsrl.it - E mail: info@politecsrl.it...
