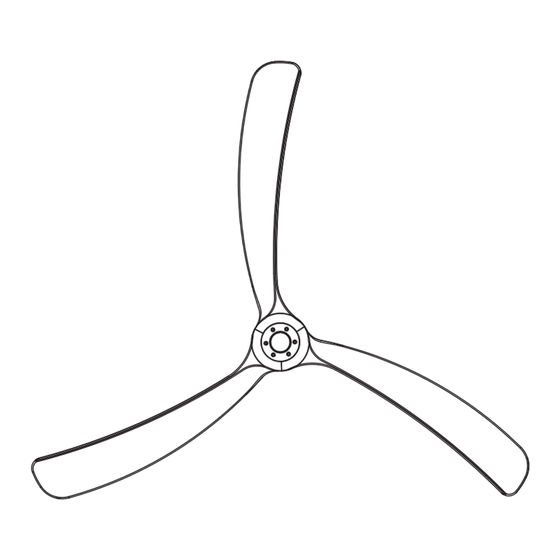

- Page 2 MAYSA G2 3B/56 Instruction Manual Model: FC-AC03/B Version: 2024 V1...
-
Page 3: Table Of Contents
Content Item Page No. 1. Safety Precaution 2. Parts & Accessories 3. Installation Instruction 4. Transmitter Function & Assembly 5. Power Supply Connection & Circuit Diagram 6. Maintenance 7. Technical Specifications 8. Customer Service Centre... -
Page 4: Safety Precaution
Safety Precaution WARNING Installation and maintenance work shall only be performed by qualified persons, familiar with local code and regulation, and experienced with this type of appliance. Primary suspension system length more than 300 mm of modified (non-standard length rod) shall be supplied by the same manufacturer, with similar material, complete with safety wire rope, marking and installation instruction. - Page 5 Safety Precaution WARNING Tighten the blade firmly using a screw driver. Blades that are detached from the unit during operation will cause serious injuries and property damages. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 6 Safety Precaution CAUTION The mounting of the suspension system shall be performed by the manufacturer, its service agent or suitably qualified persons. The fan is to be installed so that the blades are more than 2.5m above the floor. Safety cord should not be longer than the earthing conductor. Should failure of the suspension system occur, the supporting of the fan must not rely on the earthing conductor.
- Page 7 Safety Precaution Do not operate any heating apparatus too close to the ceiling fan unit or use in room where mineral oil, oil vapour or oil steam exist, this may cause plastic part to melt or deform as a result of excessive heat or chemical reaction.
-
Page 8: Parts & Accessories
Parts & Accessories Downrod Assembly Canopy Fan Blade x 3 Motor Assembly Coupling Cover Motor Assembly Blade Blade Decorative with Canopy, Coupling Cover & Panel x 1 Screw x 7 Cover x 1 Donwrod Assembly... - Page 9 Parts & Accessories Wall Screw x 2 Rubber Pulley Assembly x 1 Receiver x 1 Battery x 2 Transmitter & Holder x 1...
-
Page 10: Installation Instruction
Installation Instruction Fix the Rubber Pulley Assem- bly to the Downrod with Bolt, Washer, Nut and tighten them firmly, then insert the Clevis Pin. CLEVIS PIN MUST BE INSERT TO PREVENT NUT FROM... - Page 11 Installation Instruction a. Remove the Bolt, Clevis Pin, Nut, Washer and Rubber Pulley from the Downrod. b. Place the Rubber Pulley onto the ceiling hook and fix back the Bolt, Clevis Pin, Nut and Washer. c. Remove the Safety Wire screw and washer from the Downrod. Clevis Rubber Hook...
- Page 12 Installation Instruction a. Remove the Safety Wire screw and washer from the Downrod. b. Install the Safety Cable. Safety Wire...
- Page 13 Installation Instruction House Supply Wires Brown (L) Green/Yellow(E) a. Connect the Connectors Blue (N) from Fan and Receiver. b. Connect the wires from the Receiver to House’s Green/Yellow(E) Supply Wire. Brown (L) Blue (N) c. Connect Earth Wire to House Supply Earth Terminal.
- Page 14 Installation Instruction a. Insert the Blades on Motor b. Install the Blade Panel with Blade Screw. Blade Blade Panel Blade Screw...
- Page 15 Installation Instruction Install Decorative Cover by twisting into motor shaft. Decorative Cover...
- Page 16 Installation Instruction Below shows a complete installation diagram...
- Page 17 Transmitter Learning Process The receiver & transmitter is pre-programmed in factory. If you wish to control 2 or more fans using 1 transmitter, the below steps are required. DO NOT PRESS ANY OTHER BUTTON DURING THIS PROCESS Turn on power to fan. Within 30 sec, press and hold “LEARN”...
-
Page 18: Transmitter Function & Assembly
Transmitter Function Fan Speed Power 1 - Lowest speed Turn off fan 8 - Highest speed Natural Wind Fan speed changes within Forward Reverse its range creating gentle Anti-clockwise or sea-breeze effect clockwise rotation. Timer On 1h - Fan turns on after 1 hour 3h - Fan turns on after 3 hours Lorem ipsum 6h - Fan turns on after 6 hours... - Page 19 Function of Forward & Reverse Fan must be turned on and rotating. Press and hold Forward/Reverse button for 3 sec. Fan will slow down and then change direction (approx. 15 sec). When the fan is slowing down to change direction, the Fan Speed function is disabled until direction has been changed.
-
Page 20: Transmitter Assembly
Transmitter Assembly Install the Transmitter Holder to wall with the 2 Wall Screws provided. Transmitter Holder... -
Page 21: Power Supply Connection
Power Supply Connection IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO REGULATOR OR DIMMER SWITCH. Regulator Dimmer Switch 220-240V~ 50Hz Power Supply Double Pole Switch Earth Single Pole Switch... -
Page 22: Circuit Diagram
Circuit Diagram Motor MAIN PCB Neutral (Blue) Blue Live (Brown) Brown Earth (Green/Yellow) Green/Yellow Power Supply 220-240V~ 50Hz... -
Page 23: Maintenance
Maintenance Due to the fan’s natural movement, connections may get loose after a period of usage. To ensure a proper and safety usage, it is highly recommended to inspect and tighten all connections every 6 months. Cleaning Cleaning your fan periodically will prolong its new appearance. Basic cleaning procedures are as follows : 1. -
Page 24: Technical Specifications
Technical Specifications MODEL FC-AC03/B MAYSA G2-3B/56 Alt. Name No. of Blades 1420mm (56") Fan Width Motor RPM 88 - 198 Voltage 220-240V~ 50Hz Motor Wattage 5W - 55W Nett Weight 5.7kg Information may subject to 5% variation. - Page 25 Technical Specifications (56”) 316mm (56”)380mm More than 1m FC-AC03/B : 1420mm (56”)
-
Page 26: Customer Service
Customer Service If you need any technical assistance or faulty report, please contact our customer service centre at : ALPHA HOME APPLIANCES SDN. BHD. (390258-H) Head Office Melaka 6, Jalan Sungai Kayu Ara 32/37, Berjaya Park, 19, 19-1 & 19-2, Jalan KSB 11, Section 32, 40460 Shah Alam, Selangor.
