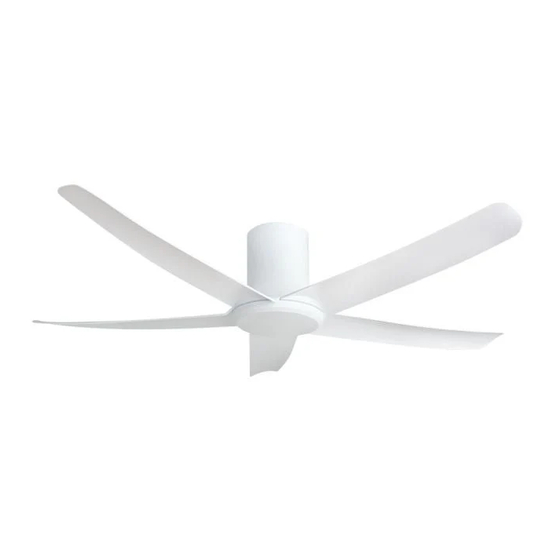

ALKOVA Pazion G2(HG)-5B/56 LED Instruction Manual
  1. Manuals
  2. Brands
  3. ALKOVA Manuals
  4. Fan
  5. Pazion G2(HG)-5B/56 LED
  6. Instruction manual

ALKOVA Pazion G2(HG)-5B/56 LED Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pazion G2(HG)-5B/56 LED and is the answer not in the manual?

Questions and answers

Related Manuals for ALKOVA Pazion G2(HG)-5B/56 LED

Summary of Contents for ALKOVA Pazion G2(HG)-5B/56 LED

  • Page 2 Pazion G2(HG) 5B/56 LED 5B/46 LED 5B/40 LED Instruction Manual Version: 2024 V1...

  • Page 3: Table Of Contents

    Content Item Page No. 1. Safety Precaution 2. Parts & Accessories 3. Installation Instruction 4. Transmitter Function & Assembly 5. Power Supply Connection & Circuit Diagram 6. Maintenance 7. Technical Specifications 8. Customer Service Centre...

  • Page 4: Safety Precaution

    Safety Precaution WARNING Installation and maintenance work shall only be performed by qualified persons, familiar with local code and regulation, and experienced with this type of appliance. Primary suspension system length more than 300 mm of modified (non-standard length rod) shall be supplied by the same manufacturer, with similar material, complete with safety wire rope, marking and installation instruction.
  • Page 5 Safety Precaution WARNING The unit must be GROUNDED to prevent possible hazard due to insulation failure. The earth wire is approximately 60mm longer than safety wire. This is to ensure at the event whereby the suspension system fails, the (L) and (N) wire will break leaving the fan remain earthed to prevent electrocution.
  • Page 6 Safety Precaution WARNING Confirm that the power supply has been switched OFF before installing or servicing the unit. Ensure that the blade is fully static before doing any maintenance work. Disconnect from the main power supply before servicing the unit. DO NOT pull out the power cord when the power is ON.
  • Page 7 Safety Precaution CAUTION Please take note of the following important points when installing. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a sufficient strength to withstand 10 times the weight of the ceiling fan. The mounting of the suspension system shall be performed by the manufacturer, its service agent or suitably qualified persons.
  • Page 8 Safety Precaution CAUTION Before turning off the power supply set the remote controller’s ON/OFF switch to the “OFF” position. If this is not done, the unit’s fans will start turning automatically when power resumes, posing a hazard to service personnel or the user. Do not operate any heating apparatus too close to the ceiling fan unit or use in room where mineral oil, oil vapour or oil steam exist, this may cause plastic part to melt or deform as a result of excessive heat or chemical reaction.

  • Page 9: Parts & Accessories

    Parts & Accessories Rubber Pulley Assembly x 1 LED Light Kit x 1 Body Cover Motor Assembly Lamp Shade x 1 Receiver x 1...
  • Page 10 Parts & Accessories Blade x 5 Wall Screw x 2 Battery x 2 Light Kit Blade Screw Screw x 3 Bolt x 2 & Washer x 11 Transmitter & Holder x 1...

  • Page 11: Installation Instruction

    Installation Instruction Fix the Rubber Pulley Assembly to the Downrod with Bolt, Washer, Nut and tighten them firmly then Washer, insert the Clevis Pin. Nut & Bolt Clevis Pin IMPORTANT : CLEVIS PIN MUST BE INSERT TO PREVENT NUT FROM LOOSENING.
  • Page 12 Installation Instruction Remove the Bolt, Washer, Nut, Clevis Clevis Pin and Rubber Pulley from downrod. Rubber Pulley Place the Rubber Pulley onto the Washer ceiling hook and fix back the Bolt, Washer, Nut and Clevis Pin. Bolt IMPORTANT : CLEVIS PIN MUST BE INSERT TO PREVENT NUT FROM LOOSENING.
  • Page 13 Installation Instruction Remove the Safety Wire screw and spring washer from the Downrod. Tie the Safety Wire across the hook as shown and firmly screw the Safety Wire onto the Downrod.
  • Page 14 Installation Instruction a. Install the Blades on Motor with Blade Screw and Washer. b. Install the LED Light Kit on Motor with Light Kit Screw. c. Install Lamp Shade by twisting in clockwise. Step 4a Step 4b Step 4c Blades Screw &...
  • Page 15 Installation Instruction House Supply Wires Brown (L) Green/Yellow (E) Blue (N) Connect the Connectors from Fan and Receiver. Green/Yellow(E) Connect the wires from the Orange Orange Brown (L) receiver to House’s Supply Blue Blue Wire. Blue (N) Connect Earth Wire to House Supply Earth Terminal.
  • Page 16 Installation Instruction Place the Receiver inside Mounting Plate and secure with double side tape provided. Receiver Mounting Plate...
  • Page 17 Installation Installation Instruction Instruction a. Attach both Body Cover together from side direction b. Adjust Body Cover according to desired height. Then, rotate Body Cover towards “Lock” direction until guide pin fix into slot and snug. Step 7a Step 7b Adjust Height Body Cover...
  • Page 18 Installation Instruction Below shows a complete installation diagram...
  • Page 19 Transmitter Learning Process The receiver & transmitter is pre-programmed in factory. If you wish to control 2 or more fans using 1 transmitter, the below steps are required. DO NOT PRESS ANY OTHER BUTTON DURING THIS PROCESS Turn on power to fan. Transmitter Within 30 sec, press and hold “LEARN”...

  • Page 20: Transmitter Function & Assembly

    Transmitter Function Natural Wind Fan speed changes within its range creating gentle sea-breeze effect Forward/Reverse Timer On Anti-clockwise or Setting from 1h to 12h clockwise rotation Fan Speed 1 - Lowest speed Power 12 - Highest speed Turn on/off fan Light On/Off &...
  • Page 21 Function of Forward & Reverse Fan must be turned on and rotating. Press and hold Forward/Reverse button for 3 sec. Fan will slow down and then change direction (approx.15 sec). When the fan is slowing down to change direction, the Fan Speed function is disabled until direction has been changed.

  • Page 22: Transmitter Assembly

    Transmitter Assembly Install the Transmitter Holder to wall with the 2 Screws provided.

  • Page 23: Power Supply Connection & Circuit Diagram

    Power Supply Connection IMPORTANT : DO NOT CONNECT THIS REMOTE CONTROL CEILING FAN TO REGULATOR OR DIMMER SWITCH. Regulator Dimmer Switch 220-240V~ 50Hz Power Supply Double Pole Switch Earth Single Pole Switch...
  • Page 24 Circuit Diagram Motor Orange Blue MAIN PCB Blue Neutral (Blue) Orange N LED+ Live (Brown) Brown Blue LED- Earth (Green/Yellow) Green/Yellow Power Supply 220-240V~ 50Hz...

  • Page 25: Maintenance

    Maintenance Due to the fan’s natural movement, connections may get loose after a period of usage. To ensure a proper and safety usage, it is highly recommended to inspect and tighten all connections every 6 months. Cleaning Cleaning your fan periodically will prolong its new appearance. Basic cleaning procedures are as follows : 1.

  • Page 26: Technical Specifications

    Technical Specifications PAZION G2(HG)-5B/56 PAZION G2(HG)-5B/46 PAZION G2(HG)-5B/40 MODEL No. of Blades 1420mm (56”) 1165mm (46”) 1015mm (40”) Fan Width 80 - 184 100 - 240 107 - 270 Motor RPM 220-240V~ 50Hz Voltage 5W - 40W Motor Wattage 5W - 55W 5W - 40W LED Wattage Nett Weight...
  • Page 27 Technical Specifications Min: 200mm (7.8”) Min: 290mm (11.4”) Max: 230mm (9”) More than 1m Max: 320mm (12.6”) PAZION G2(HG)-5B/56 LED - 1420mm (4’ 8”) PAZION G2(HG)-5B/46 LED - 1165mm (3’ 10”) PAZION G2(HG)-5B/40 LED - 1015mm (3’ 4”)

  • Page 28: Customer Service Centre

    Customer Service If you need any technical assistance or faulty report, please contact our customer service centre at : ALPHA HOME APPLIANCES SDN. BHD. (390258-H) Head Office Melaka 6, Jalan Sungai Kayu Ara 32/37, Berjaya Park, 19, 19-1 & 19-2, Jalan KSB 11, Section 32, 40460 Shah Alam, Selangor.

This manual is also suitable for:

Pazion g2(hg)-5b/46 ledPazion g2(hg)-5b/40 ledPazion g2 5b/56Pazion g2 5b/46Pazion g2 5b/40
