Quick Installation Guide
2/4 Port Secure Single/Dual-Head DP/HDMI-DP/HDMI HA KVM Switches
Objectives
• This guide includes instructions for installing Belkin F1DN102KVM-HA-3, F1DN202KVM-HA-3, F1DN104KVM-HA-3 and F1DN204KVM-HA-3 KVM Switches.
• A KVM allows sharing keyboard, video, mouse, audio and USB peripherals between multiple computers.
• This Manual and additional product documentation is available for online download on Belkin website. For further assistance please refer to:
http://www.belkin.com/us/Resource-Center/Cybersecurity/Secure-KVM-Switching/.
General
• Verify the product's configuration and rev by comparing the labels on the
package and the product itself.
• Verify that all peripherals and computers are turned OFF prior to
connecting them to the product.
• The KVM's back panel is divided into sections of Console Ports and
Computer Ports.
– Connect the peripherals to be shared by the KVM to the Console
Ports.

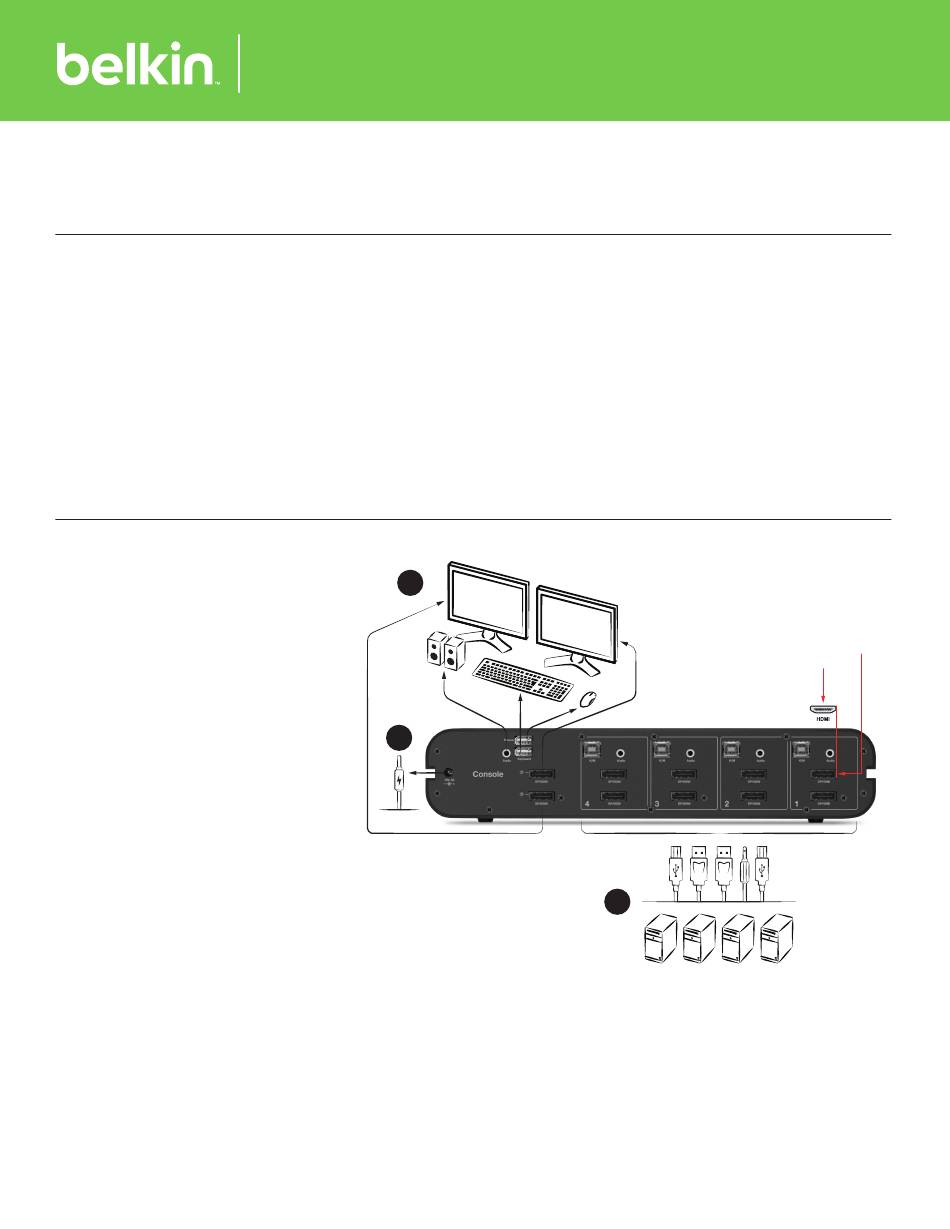

F1DN204KVM-HA-3 Model is shown
Connect peripherals to the KVM
Console Ports:
• Keyboard & Mouse: Connect a USB keyboard
and mouse to the corresponding KVM console
port.
• Video: Connect the monitor cable to the KVM
console video port.
• Audio peripherals: Connect headphones /
speakers to the KVM console audio-out port.
Connect computers to the KVM
Computer ports:
• Computer keyboard & mouse connection:
Connect each computer to the KVM keyboard
& mouse computer port using a USB A to
USB B cable.Connect the USB A end to the
computer and the USB B end to KVM.
• Computer video connection: Connect each
computer to the KVM computer video
port using the corresponding video cable
(DisplayPort/HDMI).
• Computer audio connection: Connect each
computer to the KVM audio-in port using an
audio cable. Connect one end of the cable to
the computer's audio-out port using the 1/8"
(3.5mm) stereo plug. Connect the other end of
the audio cable to the KVM audio-in computer
port.
Power ON your system:
• Power ON the monitor/s: Make sure that the
monitor/s is/are turned ON prior to powering
ON the KVM.
• Power ON the system: Connect all peripherals
and computers to the KVM prior to powering
it up. Power ON the KVM by plugging it to
the AC wall outlet. By default, after product
power-up, the active channel will be computer
F1DN102KVM-HA-3: Belkin 2-Port Single Head DP/HDMI to DP/HDMI Video HA Secure KVM Switch
F1DN202KVM-HA-3: Belkin 2-Port Dual Head DP/HDMI to DP/HDMI Video HA Secure KVM Switch
F1DN104KVM-HA-3: Belkin 4-Port Single Head DP/HDMI to DP/HDMI Video HA Secure KVM Switch
F1DN204KVM-HA-3: Belkin 4-Port Dual Head DP/HDMI to DP/HDMI Video HA Secure KVM Switch
1
3
#1, indicated by the applicable front panel
push button LED lit.
• Important Notes:
Anti-Tamper System: This Switch is equipped
with active anti-tamper triggers. Any attempt
to open the enclosure will activate the anti-
tamper triggers, render the unit inoperable
and warranty will be void. If the unit's
enclosure appears disrupted or if all the port
LEDs flash continuously, please call Belkin
Technical Support at (800) 282-2355.
– Connect each computer that needs access to shared
peripherals to a specific Computer Ports section.
– Make sure that every computer is connected to a separate Computer
Ports section.
– The push buttons on the product's front panel indicate which
computer has currently access to shared peripherals.
– To switch peripherals between computers, press the appropriate push
button on the product's front panel.
NOTE:
The video connectors can accept a
Display Port or HDMI cable. In order to
properly insert an HDMI cable, move it
to the far right of the socket (as
viewing the SKVM from the rear panel)
and insert with the wide side up.
2
Product Enclosure Warning Label and
Tamper Evident Labels: Belkin Secure
Switch uses product enclosure warning label
and holographic tamper evident labels to
provide visual indications in case of enclosure
intrusion attempt. If for any reason one of
these seals is missing or appears disrupted,
please avoid using product and call Belkin
Technical Support at: (800) 282-2355.
far right of the socket
wide side up
HLT33434 Rev.A00
