Hyundai power products HMEL20V2A Original Instructions Manual

Cordless garden saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USING THIS MACHINE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMEL20V2A and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HMEL20V2A

Summary of Contents for Hyundai power products HMEL20V2A

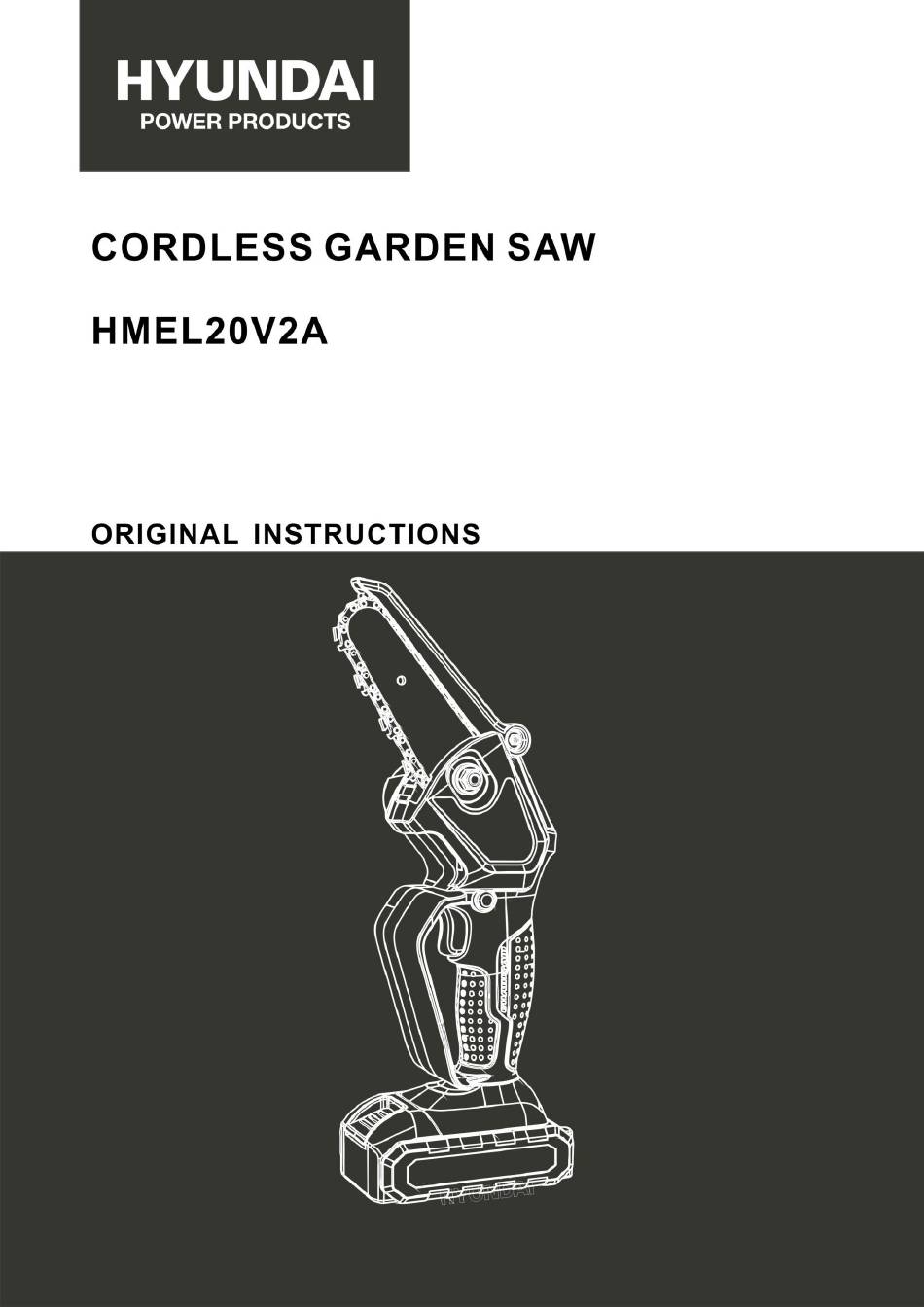

  • Page 1 WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USING THIS MACHINE.

  • Page 2: Table Of Contents

    CONTENTS 1. INTENDED USE..............3 2. SAFETY INSTRUCTIONS............3 3. SYMBOLS................7 4. TECHNICAL DETAILS............4 5. PRODUCT DESCRIPTION.............9 6. ASSEMBLY AND REMOVAL OF CHAIN SAW....10 7. INSPECTION OF CHAIN SAW..........11 8. OPERATION................13 9. CLEANING, MAINTENANCE AND REPAIR......16 10. DISPOSAL................18 11. DECLARATION OF CONFORMITY........18 12.

  • Page 3: Intended Use

    1. INTENDED USE Application scope of the tool: sawing, pruning branches and cutting some small diameter trees. It is suitable for gardens and orchards. 2. SAFETY WARNINGS 2.1 GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

  • Page 4: Technical Details

    a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  • Page 5 e) Do not operate a chain saw in a tree, on a ladder, from a rooftop, or any unstable support. Operation of a chain saw in this manner could result in serious personal injury. f) Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface.
  • Page 6 Charge only at ambient temperatures between 5° C and 40° C  Charge only using the charger provided with the tool.  Store your batteries in a cool dry place (5° C-20° C/41° F-68° F). Never store batteries in  discharged state.

  • Page 7: Symbols

    and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning  and user maintenance shall not be made by children without supervision.

  • Page 8: Technical Data

    Maximum sawing diameter (mm) Linear speed of saw chain (m/s) Effective length of guide plate (mm) Chain pitch (mm) Number of teeth of drive sprocket Specification of lithium battery HMEL20V2A (5INR19/66) (V/Ah) 20Vd.c. 2.0Ah, 40Wh Guide bar and saw chain (4") combination(s)

  • Page 9: Product Description

    5. PRODUCT DESCRIPTION 1. Chain 6. Chain guard 11. power input interface 2. Guide plate 7. Tension knob 12. battery pack 3. Lock nut 8. Self-locking switch 13. charger 4. Sprocket cover plate 9. Trigger 5. Protective plate 10. Handle...

  • Page 10: Assembly And Removal Of Chain Saw

    6. ASSEMBLY AND REMOVAL OF CHAIN SAW Do not install the battery during the assembly. Wear protective gloves to avoid injuries from the cutting blade. The characteristics of the guide, chain and sprocket are listed in the parameter table. 6.1 ASSEMBLY OF GUIDE PLATE AND SAW CHAIN The characteristics of the guide, chain and sprocket are listed in the parameter table.

  • Page 11: Inspection Of Chain Saw

    b. The chain can be easily pulled along the guide groove 4. If engraving guide plate is used: adjust the tightness of the chain and pull the chain by hand, half of the driving teeth can be seen outside the guide plate groove. 5.
  • Page 12 5. If the following conditions are met, please replace the guide plate in time: a. The guide plate is damaged b. The measured depth is less than the minimum allowable depth c. The groove of chain saw is deformed and damaged 6.

  • Page 13: Operation

    8. OPERATION 8.1 INSTALLING/REMOVAL THE BATTERY Slide the battery under the power input interface until hearing a click. To remove the battery, push the unlock button located on the top of the battery. Then slide the battery to remove it. 8.2 STARTING AND STOPPING To start the tool push and hold the self-locking switch.
  • Page 14 8.4 PRECAUTIONS FOR PRUNING 1. If the branches under the fallen tree are pruned first, the trunk will not be supported by the branches. Trees can roll, causing serious or fatal injuries. a. Turn the main pole over and trim the branches on it b.
  • Page 15 8.7 PRUNING OF BRANCHES a. Put the chain saw guide on the branch to be pruned. b. Chain cutting at full speed. c. Cut the branch with the upper part of the guide plate. d. Cut the branch with tension: first cut a small opening (1) on the loose side, and cut continuously under the tension.

  • Page 16: Cleaning, Maintenance And Repair

    c. The fiber of the uncut part of the trunk acts as a hinge. Under any circumstances, do not directly cut the whole trunk, otherwise the direction of the tree dumping cannot be confirmed. Please insert a wedge on the back side incision in time.
  • Page 17 2. Clean the guides and chains a. Turn off the chain saw. Cut off the power. b. Remove the guide plate and chain. c. Use a soft brush to clean the rear slot of the guide plate. d. Use a soft brush to clean the chain. e.

  • Page 18: Disposal

    BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: CORDLESS GARDEN SAW HMEL20V2A Serial number: 20210539753-20210540752 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it; Also complies with the following European directives:...

  • Page 19: Warranty

    12. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 20: Product Failure

    13. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 21: Warranty Exclusions

    14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
  • Page 22 NOTES...
  • Page 23 NOTES...
