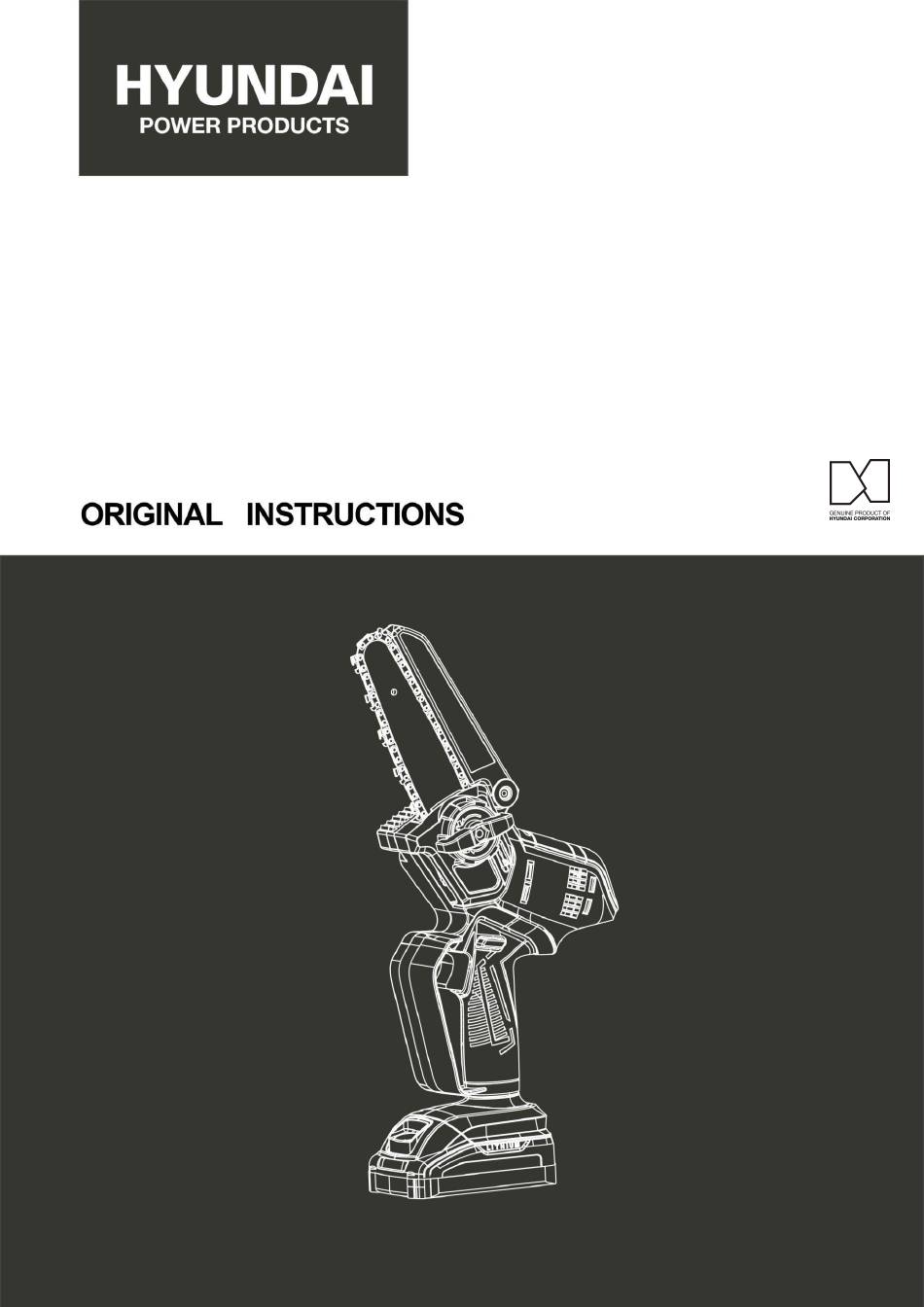

- Page 1 CORDLESS GARDEN PRUNING SAW HMELB20V2A-A WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. KNOW YOUR PRODUCT........................9 ASSEMBLY............................10 OPERATION............................12 5. CLEANING AND MAINTENANCE ....................14 DISPOSAL............................16 7. DECLARATION OF CONFORMITY....................17 WARRANTY............................18 9. PRODUCT FAILURE.........................19 10. WARRANTY EXCLUSIONS......................20... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1 GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f)Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts.
- Page 5 batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f)Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
- Page 6 2) Causes and operator prevention of kickback - Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. - Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.
- Page 7 4) Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and this is risk of explosion. 5) Allow a hot battery to cool before charging. 6) Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract.
- Page 8 potential risks of injury and damage remain. Due to its construction and build, this tool may present the following hazards: 1) Electric shock from insufficient insulation. Do not use the product when the product or your hands are damp or wet. 2) Ear damage if working without ear protection.
-
Page 9: Know Your Product
Ambient temperature of 40°C max. (only for the battery). Battery and charger to be used indoors only. Recycling. Type of fuse. Guarantee sound power level 2. KNOW YOUR PRODUCT 2.1 DESCRIPTION 2.2 TECHNICAL DATA Rated voltage 20V d.c. Cutting depth 100mm (4”) Chain speed 5.0m/s... -
Page 10: Assembly
Guide bar Length 127mm (5”) Saw chain Length 127 (5”) , Pitch 6,35 Weight (without battery pack) 1.02kg HMELB20V2A-A Battery type 20V d.c. 2,0Ah, Lithium-ion HMELB20V2A-A Charger type Input 220-240V~ 50-60Hz, 65W Output 21V d.c., 2,5A Sound pressure level Max. LpA =82,7 dB(A), K= 3 dB(A) Sound power level Max. - Page 11 Attached the side panel cover Insert the battery pack into the Rotate the bar tightening knob clockwise spin the tool-firee slot of bottom, check if the safety for proper bar clamping force. chain tensioning to adjust the lock is locked and then you can tightness of the chain.
-
Page 12: Operation
4. OPERATION 4.1 INSTALLING/REMOVAL THE BATTERY Note: battery and charger not included in the pack, you can buy Energizer 20V battery platform 2Ah or 4Ah. 1) Slide the battery under the power input interface until hearing a click. 2) To remove the battery, push the unlock button located on the top of the battery. Then slide the battery to remove it. - Page 13 First cut a force relief groove from the tight side (1), and then cut it into the loose side (2). 4.4 PRECAUTIONS FOR PRUNING If the branches under the fallen tree are pruned first, the trunk will not be supported by the branches. Trees can roll, causing serious or fatal injuries.
-
Page 14: Cleaning And Maintenance
4.6 OPERATION OF TIMBER MAKING WARNING! If the chain saw rebounds, the chain saw will spring to the operator. Can cause serious or fatal injury. 1) When cutting, it is necessary to cut at full speed. 2) Do not cut with the guide head. 3) When cutting, keep the chain saw at full speed and the guide plate vertical. - Page 15 2) Corrosive cleaning agents, high-pressure cleaning equipment or sharp cleaning tools may damage chain saws, guides, chains, battery packs and chargers. If the chain saw, guide plate, chain, battery pack and charger cannot be cleaned in the correct way, the relevant parts may no longer function as they should, or the safety device may no longer function, which can cause serious injury.
-
Page 16: Disposal
The file should only grind the saw blade forward in one direction, and do not make the file contact the saw blade when pulling back. First, grind the shortest saw blade, and the length of the saw blade is the reference dimension of other saw blades on the chain 1) The round file must match the pitch of the chain 2) Round file head from inside out... -
Page 17: Declaration Of Conformity
32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France, Declares that, Product: CORDLESS GARDEN PRUNING SAW Model: HMELB20V2A-A Serial number: 20240712860-20240713059 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 18: Warranty
8 . WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 19: Product Failure
9 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 20: Warranty Exclusions
1 0 . WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
