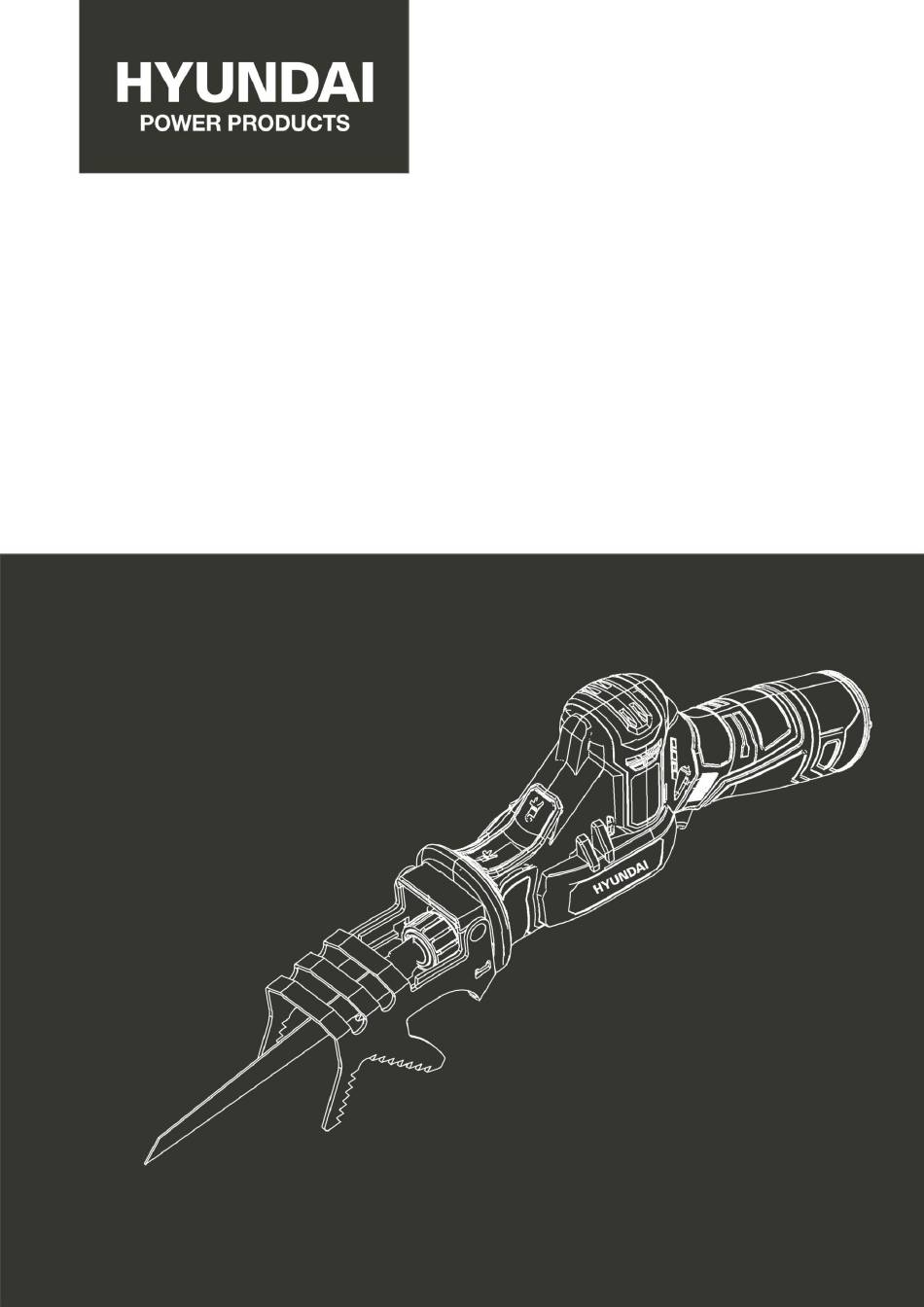

- Page 1 CORDLESS RECIPROCATING SAW HSSAB12V2A ORIGINAL INSTRUCTIONS CAUTION: READ THIS INSTRUCTION MANUAL BEFORE USING THIS MACHINE!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE 2. SAFETY INSTRUCTIONS 3. EXPLANATION OF SYMBOLS 4. YOUR PRODUCT 5. TECHNICAL DETAILS 6. OPERATION 7. MAINTENANCE 8. DISPOSAL 9. DECLARATION OF CONFORMITY 10. WARRANTY 11. PRODUCT FAILURE 12. WARRANTY EXCLUSIONS... -
Page 3: Intended Use
1. INTENDED USE The power tool is intended for sawing wood, metal and plastics. Not suitable for professional use. 2. SAFETY INSTRUCTIONS 2.1 GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. - Page 4 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Page 5 g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
- Page 6 ▪ Never stop the saw blade by applying pressure to the saw or to the side of the blade. ▪ Do not lift the saw from the item being cut if the blade is still running. ▪ Never place the saw on a table or workbench if it has not stopped completely. ▪...
- Page 7 Charger Use the charger provided with the tool only to charge the battery. Never attempt to charge non-rechargeable batteries. Have defective cords replaced immediately. Do not expose to water. Do not open the charger. Do not probe the charger. ...
-
Page 8: Explanation Of Symbols
3. EXPLANATION OF SYMBOLS To reduce the risk of injury, the user must read and understand this manual before using this product. Conforms to relevant safety standards Do not expose batteries to temperatures exceeding 40 degrees. Do not dispose of batteries in fire. They could explode and cause injury Do not dispose of batteries in water. -
Page 9: Your Product
4. YOUR PRODUCT 1. Blade clamp and release mechanism 2. Soleplate 3. Lock-off button 4. ON/OFF switch 5. Hand grip 6. Battery pack 7. Release button for battery pack 8. Charger 9. Charger indicator light 10. Battery capacity indicator 11. Blade guard... -
Page 10: Technical Details
5. TECHNICAL DETAILS Rated voltage 12 V d.c. Speed 0-2700/min Cutting capacity 80 mm Stroke Length 20mm Battery Pack DC33 12V d.c.2.0Ah, 24Wh Li-ion battery Charger DC122400, Input 220-240V~, 50-60Hz, 50W, output 12V d.c., 2.4A Charging time 50-60min. Acoustic pressure level LpA 84.3 dB(A) K= 3 dB(A) Acoustic power level LwA 95.3 dB(A) K= 5 dB(A) - Page 11 NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries. 6.2 INSTALLING THE BATTERY PACK Warning! Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, carrying, transporting or when not in use.
- Page 12 6.9 GENERAL CUTTING Hold the saw firmly in front and clearly away from you. Make sure that the blade is clear of any foreign material. Be sure material to be cut is held firmly. Small workpiece should be securely clamped in vice or with clamps to the workbench or table.
-
Page 13: Maintenance And Storage
7. MAINTENANCE AND STORAGE 7.1 MAINTENANCE - After use and before cleaning and maintenance, remove the blade and the battery form the tool. - Clean the housing only with a damp cloth. Do not use solvents! Then wipe thoroughly. - Check the condition of the tool. If the tool is damaged or has malfunction, do not use it and bring it to a qualified service for inspection or reparation. -
Page 14: Declaration Of Conformity
Product: Cordless Reciprocating saw Trade mark: Hyundai Model: HSSAB12V2A Serial number: 20210632933-20210635542 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. -
Page 15: Warranty
10. WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 16: Product Failure
11. P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 17: Warranty Exclusions
12. WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •...
