Hyundai power products HSBE402 Original Instructions Manual

Electric log saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WARNING: Read thoroughly the instruction manual before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSBE402 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HSBE402

Summary of Contents for Hyundai power products HSBE402

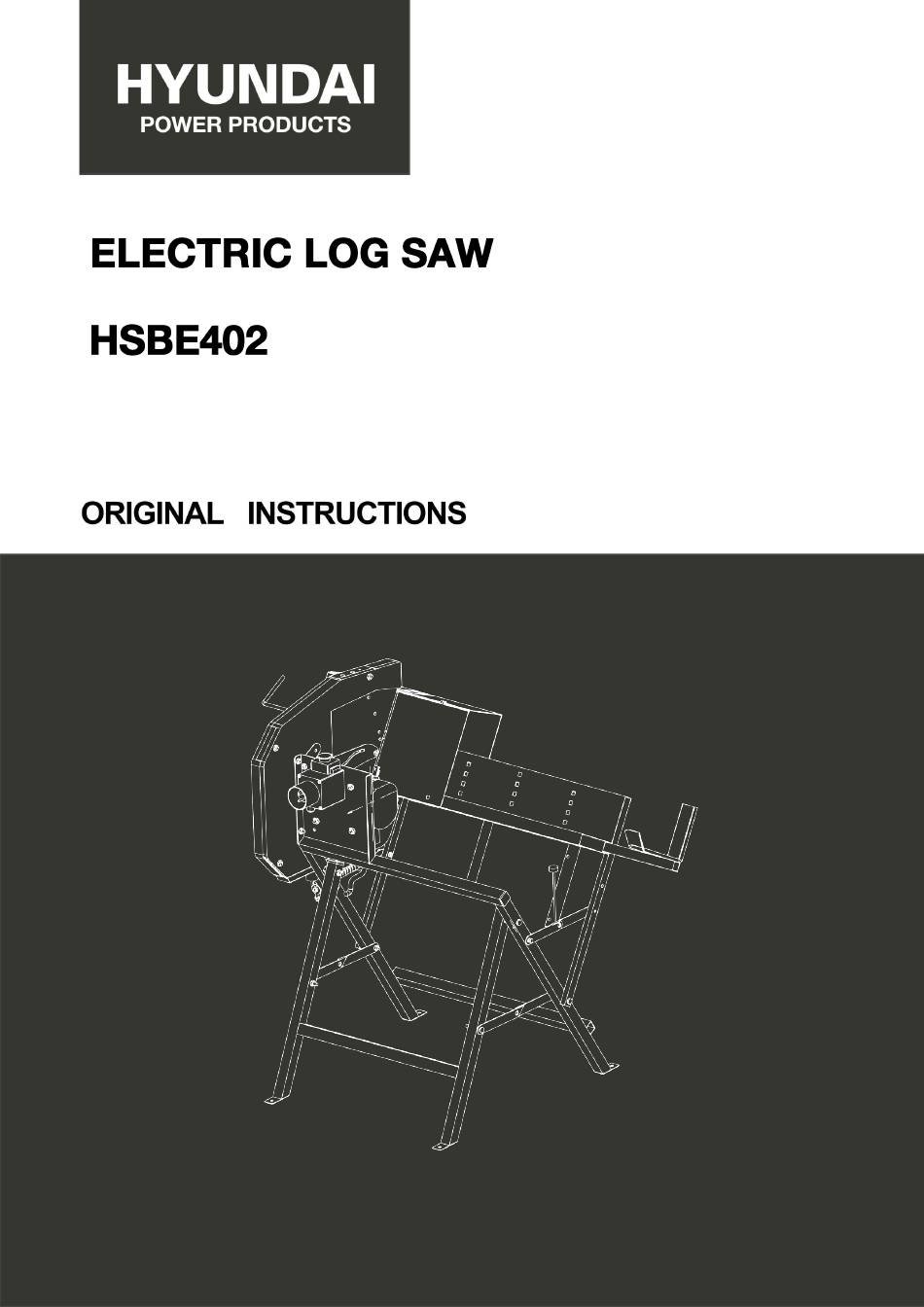

  • Page 1 WARNING: Read thoroughly the instruction manual before use.

  • Page 2: Safety Warnings And Cautions

    SYMBOL AFFIXED TO SAFETY WARNINGS & CAUTIONS THE MACHINE ⚫ UNDERSTAND YOUR CUTTER Read and understand the owner’s manual and labels affixed to the cutter. Learn its application and limitations as well as the specific potential hazards peculiar to it. ⚫...
  • Page 3 Connections must be made with protected material suitable for outdoor use. ⚫ AVOID ELECTRICAL SHOCK Check that the electric circuit is adequately protected and that it corresponds with the power, voltage and frequency of the motor. Check that there is a ground connection, and a regulation differential switch upstream.

  • Page 4: Disconnect Power

    ⚫ DISCONNECT POWER Unplug when not in use, before making adjustments, changing parts, cleaning, or working on the log saw; Consult technical manual before servicing. ⚫ MAINTAIN YOUR CUTTER WITH CARE Keep the log saw clean for best and safest performance. ⚫...

  • Page 5: Safe Working Practice

    Remove plug from mains before maintenance or if cord is damaged WARNING! Electricity - Risk of electric shock. Warning symbol Use a protection for face ⚫ SAFE WORKING PRACTICE It is essential all operators are: A Adequately trained in the use, adjustment and operation of the machine;...

  • Page 6: Application Conditions

    close to the sawblade when using a dual purpose circular sawing machine for firewood/circular saw bench in the saw bench mode; H Wear suitable personal protective equipment when necessary; this could include; i) hearing protection to reduce the risk of induced hearing loss; ii) respiratory protection to reduce the risk of inhalation of harmful dust;...

  • Page 7: Specifications

    ⚫ Start the log splitter to push the wedge wood to go completely under the jammed one. ⚫ Repeat above procedure with sharper slope wedge woods until the log is completely freed. SPECIFICATIONS Model Number HSBE402 Motor 230V~ 50Hz S6 40% 2200W Cutter Capacity Ø30-Ø135mm Blade Diameter Ø405mm×Ø30mm×3.2mm×32T...

  • Page 8: Wiring Diagram

    The figures quoted are emission levels and are not necessarily safe working levels. Whilst there is a correlation between the emission and exposure levels, this cannot be used reliably to determine whether or not further precautions are required. Factors that influence the actual level of the workforce include the characteristics of the work room, the other sources of noise etc.i.e.
  • Page 9 LIST OF MAIN PART 1. Sliding support 2. working table 3. Motor 4. Saw blade inner guard 5. Saw blade outer guard 6. Support leg 7. Spanner (2X1) 8. On/Off switch 9. extended holder 10. Guide plate 11. locking knob 12.
  • Page 10 ASSEMBLY 1 Unpacking Danger! Hazard generated by missing parts! To prevent accidental starting that could cause possible serious personal injury, assemble all parts to your machine before connecting it to power supply. This machine should never be connected to power supply when you are assembling parts, making adjustments, installing. Carefully remove all parts from the carton and place the machine on a level work surface.
  • Page 11 G. Saw blade H. Saw blade inner guard 1pc I. Parts plastic bag for F. Saw blade guard 1pc fasten parts. extended holder 1pc Table cover plate L. Table cover M, Parts plastic bag for handles and locking knob ,fasten parts.
  • Page 12 semicircle head inner-hex screws M6x12 screw M5x15 Washer Ø5 Locking nut Screw M5X12 Washer Ø5 Spring washer Ø5 5. Procedure 5 Locking knob Locking knob Remark: All the fasten parts and spare parts are listed in the table will be used for assembly as the Machine installation following detail “...
  • Page 13 Use only rubber-jacked cable of sufficient lead cross section as extension cable. Do not pull on power supply cable to unplug. 4 Machine installation 1. Align the two holes on the supporting leg (A) into the two holes on the supporting leg (B), and use 2 bolts (M8X40), 2 washers (Ø8) and 2 locking nut (M8) to fasten these two legs together, and leave the supporting leg to lie on the ground.
  • Page 14 M6X15 M8X15 M8X40 Assemble inside of saw blade inner guard and connect it to the worktable mount the movable baffle. movable baffle . Assemble the Lower cover，use screw M6X12 to connect the lower cover to worktable, and use screw M6X25 to fix.
  • Page 15 M6X12 M6X25 Lower cover Put the inner flange, blade, outer flange and M20 nut on the motor shaft. Hold outer flange with spanner and fasten the nut by spanner. - 15 -...
  • Page 16 Assemble the outside of sawblade inner guard, connect it to the worktable with 2 screws(M6x12),then use screws(M5x6) to connect the the outside and inseide of inner sawblade guard. Assemble the sawblade outer guard, pls remove the lower plastic cover of inner guard first, mount the outer guard and tighten the bols of outer guard,then mount the lower plastic cover.
  • Page 17 Assemble the extension worktable，use 2 bolts (M8X12), 2 washers (Ø8) and 2 locking nuts (M8) to connect the extension worktable to worktable. Assemble the table cover plate, use 3 bolts(M8X15), 3 locking nuts (M8) to connect the table cover plate to worktable，then use 2 bolts( M5X8) ,2 locking nuts (M5) to connect the table cover plate to sawblade inner guard extension worktable...
  • Page 18 11.Assemble the table cover. a. Assemble the handle Lossen 2 screws (M4X6) of the table cover,then connect it to the table cover plate and tighten 2 screws (M4X6)
  • Page 19 12.Install the sliding support, extended holder, handle 13. Install 2 knobs (M8X20)
  • Page 20 13. Install spring guide tube, loosen bolt ,flat washer and locking nut on spring guide tube，put spring and washer onto spring guide tube, push the supporting leg (A) towards the blade, and insert spring guide tube into hole on supporting leg(B) and fasten it .
  • Page 21 OPERATION Please take note of the following safety information before operating the machine! Also follow the safety instructions given at the beginning of this manual! Hazard generated by machine defects! NOTE: Before Using the Machine, Please fix the 4 holes with Bolts (M8X20) at the Bottom of the Stand...
  • Page 22 Before starting work, check to see that the following are in proper working order: 1. Saw blade (firmly mounted? Undamaged? Sharp? Sufficient distance to other parts?) 2. Blade guard (undamaged? Distance to saw blade sufficient?) working table (must automatically return to the starting position) 4.
  • Page 23 2. Wear hair protection. 3. Wear safety glasses. 4. Wear dust mask 5. Wear non-slip safety shoes. 6. Take care that no parts of your body or clothing are caught by rotating components (do not wear ties or loose fitting garment; contain long hair with a hairnet). Risk of personal injury and crushing by moving parts! 1.
  • Page 24 Push feed working table until it hits the stop. 4. Return working table completely to the starting position. Note: If the log was not completely separated, turn it over and repeat the cutting operation from the opposite side (reversing cut). 5.
  • Page 25 2. Replace damaged parts, especially safety devices, only with genuine replacement parts since parts not tested and approved by the equipment manufacturer can cause unforeseeable damage. 3. Repair and maintenance work other than described in this section should only be carried out by qualified specialists.
  • Page 26 3. Loosen 2 semicircle head inner-hex screws on the right blade inner guard Right blade inner guard 4. Hold outer flange (14) with spanner and loosen the nut (13) by spanner. 5. Remove the nut (13) and outer flange (14) from the saw spindle 6.
  • Page 27 8. Install new saw blade (15), observing the direction of rotation. Danger! Use only saw blades conforming to the technical specifications and EN 847-1 – parts of unsuitable or damaged saw blades may be hurled away explosive-like. Do not use: saw blades made of high speed steel (HS or HSS);...
  • Page 28 Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 The undersigned, hereby certifies that the units described below ELECTRIC LOG SAW Model: HSBE402 S/N: 20230310464-20230310607 is in compliance with the provisions of the following European directives: 2014/30/EU " ElectroMagnetic Compatibility " 2006/42/EC "Machinery"...

  • Page 29: Warranty

    WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 30: Product Failure

    PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 31: Warranty Exclusions

    WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
