Summary of Contents for Hyundai power products HSC12125

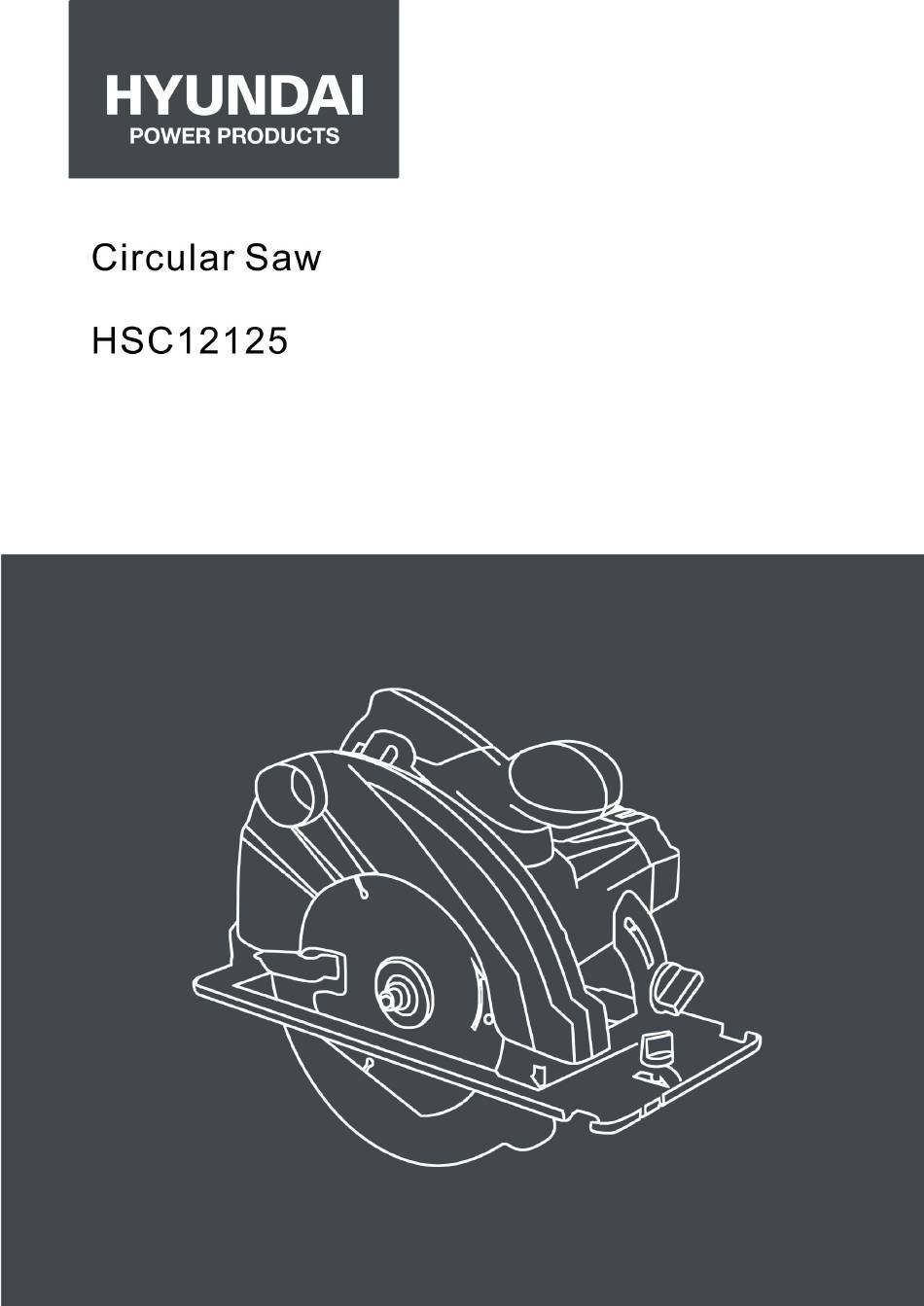

- Page 1 ORIGINAL INSTRUCTIONS WARNING: Read thoroughly the instruction manual before use...
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. -
Page 3: Specific Safety Rules
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. - Page 4 hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
- Page 5 To reduce the risk of injury, the user must read and understand this manual before using this product. Wear ear protectors. Exposure to noise can cause hearing loss. Wear eye protection. Wear respiratory protection. Wear protective gloves Tool of Class II protection (double isolation) LASER RADIATION - DO NOT ATTACH THE SIGHT BAY - CLASS 2 LASER PRODUCT.
-
Page 6: Your Product
2. YOUR PRODUCT... - Page 7 Cutting piece Lower guard Base Saw cover Workbench Parallel adjustment screw Saw blade Marking-off-line Wing nut Front scale at 45° incline Cutting depth Front scale when not inclined Guide Cutting position at 45° Bolt Wing bolt Scale Set screw Hinge part Washer (B) Screw of sleeve Washer (A)
-
Page 8: Prior To Operation
Information The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another; The declared vibration total value may also be used in a preliminary assessment of ... -
Page 9: Cutting Procedures
The angle of inclination can also be regulated by loosening the wing bolt at the scale (Fig. CAUTION It is very hazardous to allow this wing bolt to remain loosened. Always thoroughly clamp it. Regulating the guide The cutting position can be regulated by moving the guide to the left or right after loosening its wing bolt. -
Page 10: Maintenance And Inspection
Dismounting the saw blade (1) Set the cutting depth to maximum and place the circular saw in a rigid position. (2) Carefully turn the bolt with the supplied wrench. (3) When the saw shaft is fixed, turn the box wrench counter clockwise to remove bolt and washer (B). -
Page 11: Declaration Of Conformity
8. DECLARATION OF CONFORMITY BUIDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declare that the following machine: Circular Saw HSC12125 20210305718-20210308869 Serial number : Is in conformity with the Directive Machine 2006/42/EC and with the regulation transposing it. - Page 12 9. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose. Talk with your local authorities or dealer for advice on recycling.
-
Page 13: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
