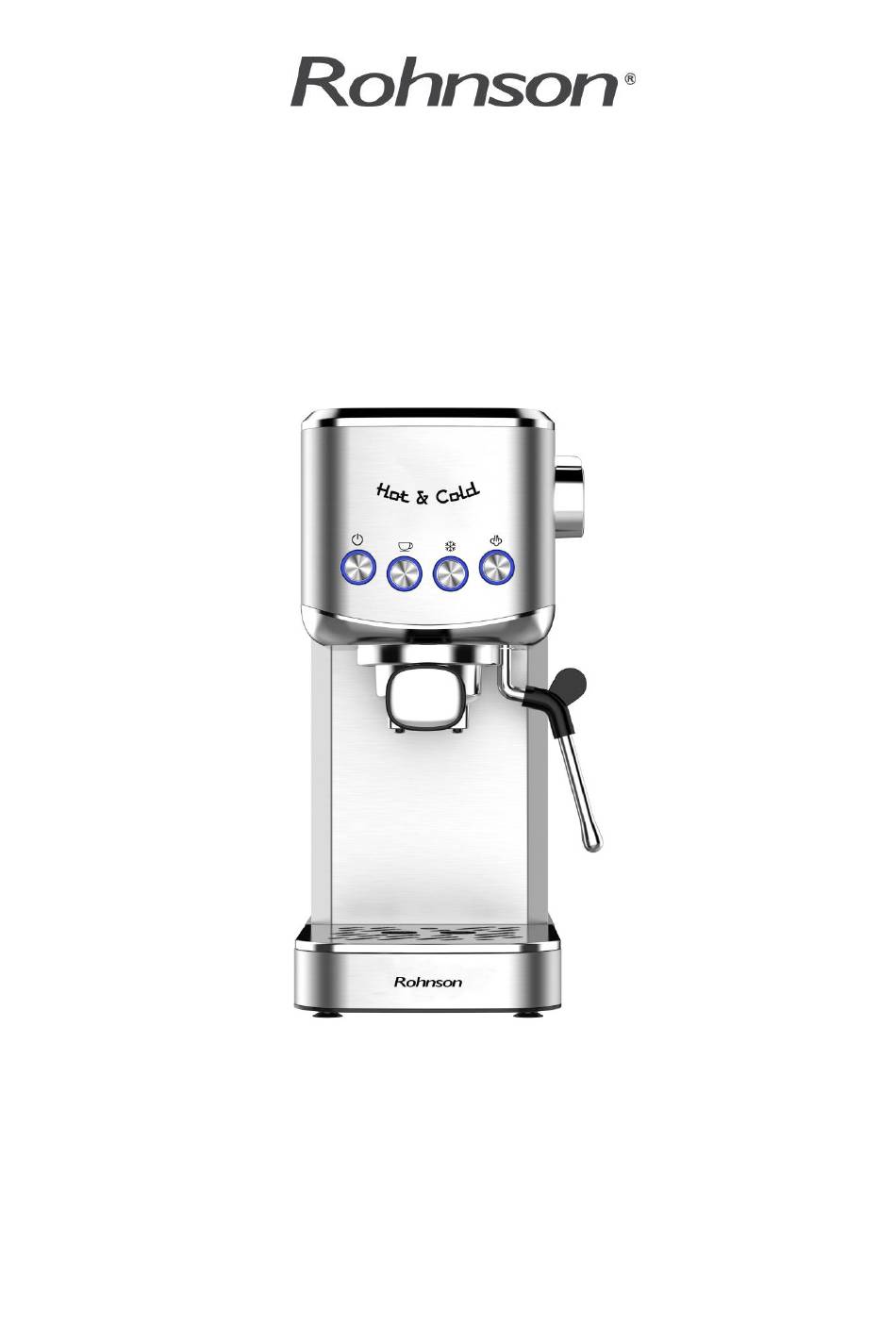

- Page 1 Instructions Manual Espresso Maker R-98013 Hot & Cold Read this manual thoroughly before using and save it for future reference...
-
Page 2: Know Your Coffee Maker
KNOW YOUR COFFEE MAKER 1. Tank cover 2. Water tank 3. Steam knob 4. Buttons 5. Control panel 6. Cup plate 7. Frothing nozzle 8. Drip tray 9. 1-cup filter 10. 2-cup filter 11. Funnel 12. Funnel handle 13. Measuring spoon and tamper A. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock or injury to people, including the followings: 1．Before using checks that the voltage of wall outlet corresponds to coffee maker rating plate. - Page 4 16．To ensure safety, please read the instructions carefully and grasp the correct use method. 17．Do not wash the coffee maker or power cord in water or other liquids. 18．Household use only, don’t use outdoors. 19．Before using it for the first time, please cook it twice with clean water to remove the odor.
- Page 5 First use/cold machine state preparation 1．Pour the water into the tank and the water level should not exceed the "Max" mark in the tank, cold water is needed for Cold/Cool Brew coffee. 2．Remove the funnel from the packaging box, put the filter into the funnel and screw it into the corresponding position of the machine.
- Page 6 3．In standby mode, press the " " on/off, all indicators are always on. 4．Hot coffee: Press " " button and the indicator light blinks, signifying that the machine is warming up the heating system. When the indicator is constant on, the internal components are heated and ready to brew coffee".
-
Page 7: Hot Water Function
forms a straight line, turn the steam dial off. Put more ice into the water tank; Now your machine is ready for cold/cool coffee brewing). Steam milk foam function 1．Press " " and then" ". At this time, the " "... -
Page 8: Cleaning Mineral Deposits
CLEANING MINERAL DEPOSITS 1. To make sure your coffee maker operating efficiently, internal piping is cleanly and the peak flavor of coffee, the coffee machine needs to be descaled, cleaned, and maintained periodically. Descaling warning will be shown when the appliance has cumulatively worked for 300 cycles. -
Page 9: Troubleshooting
Troubleshooting Problem Reason Method 1．Whether there is water in 1．Fill the tank with water and turn the water tank/whether the on the power switch and the coffee water tank is stuck in place. switch. 2．Water is not added in 2．How to add water to the advance in the machine. - Page 10 The temperature is too high Water cooling. after steaming. No coffee, coffee light and steam light flash. In the steam state, the steam Turn the steam switch to OFF. switch is not off. Not boil coffee. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
