Summary of Contents for Chauvet DJ Obey 70

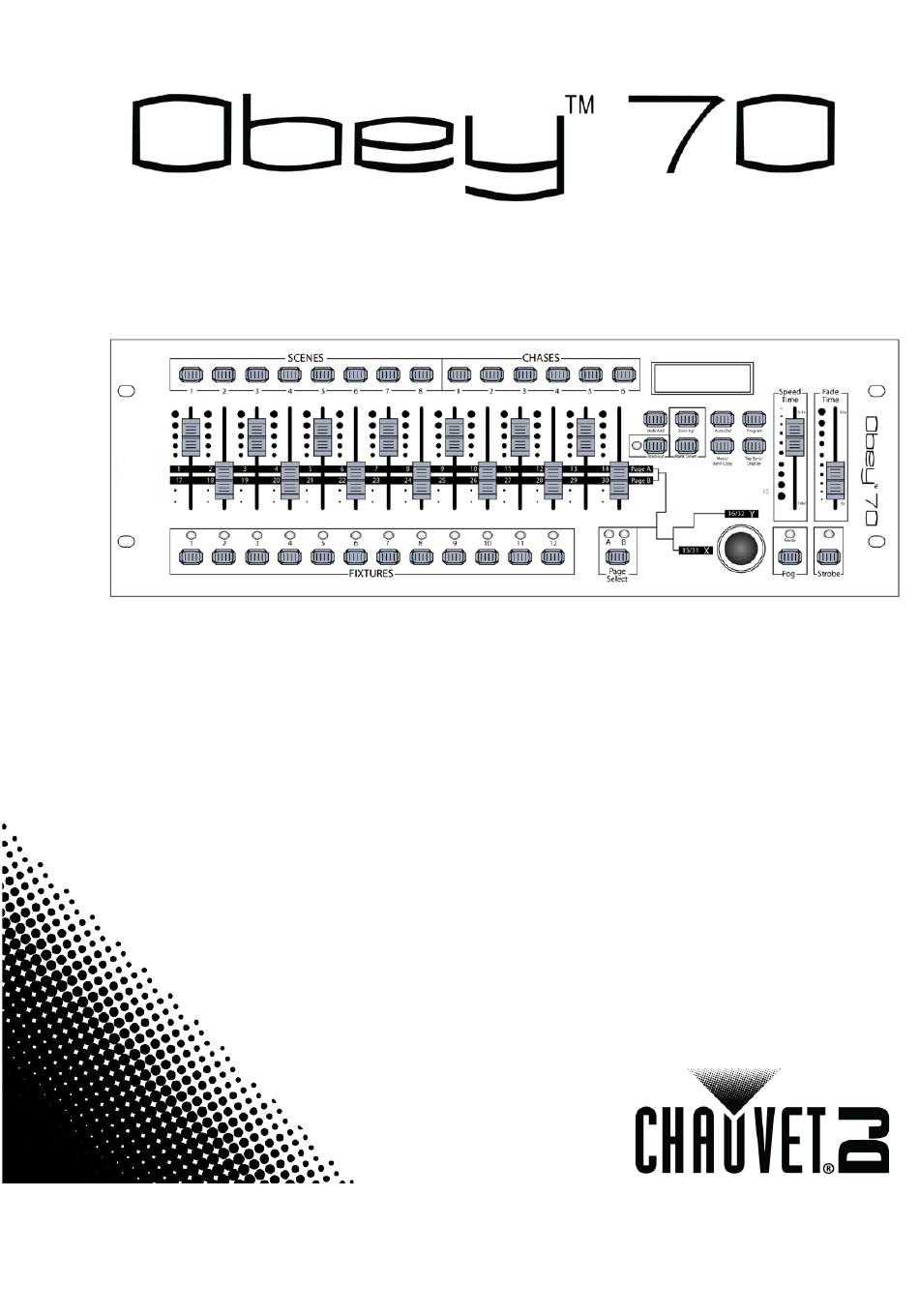

- Page 1 User Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Before You Begin ............................ 8 What is Included ................................. 8 Claims ..................................8 Text Conventions ................................ 8 Symbols ..................................8 Disclaimer ................................... 8 Safety Notes ................................9 2. Introduction ............................. 9 Product Overview ............................... 9 Dimensions ................................10 3. - Page 3 Playback Modifications ............................. 16 MIDI Operation ..............................16 Setting the MIDI Channel ............................16 MIDI Configuration (Response) ..........................16 Tap Sync ..................................16 Fog Control ................................16 Strobe Control ................................16 7. Technical Information ........................... 17 Maintenance ................................17 Technical Specifications ............................17 Returns ..................................
-
Page 4: Before You Begin
1. Before You Begin · What is Included Obey™ 70 · 12 VDC, 500 mA External Power Supply · Warranty Card · User Manual If the box or the contents appear damaged from shipping, or show signs of Claims mishandling, notify the carrier immediately, not Chauvet. Failure to do so in a timely manner may invalidate your claim with the carrier. -
Page 5: Safety Notes
Safety Notes Please read these instructions carefully. It includes important information about the installation, usage, and maintenance of this product. · Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this manual. ·... -
Page 6: Dimensions
Connections DMX Polarity MIDI In Description Switch Power On/Off Fog Out DMX Out Sticker DC Power In Strobe Out Dimensions Page 10 of 72 Obey™ 70 User Manual Rev. 6... -
Page 7: Setup
3. Setup This product requires an external power supply, which is included. The included AC Power power supply is rated for 100–240 VAC, 50/60 Hz, 500 mA max. Before powering on the unit, make sure the line voltage to which you are connecting it is within the range of accepted voltages listed on the label affixed to the product or refer to the Technical Specifications. -
Page 8: Product Addressing
The Obey™ 70 can control up to 12 separate fixtures. Each fixture must be set to Product predetermined DMX addresses. Please see the chart below for the DMX starting Addressing addresses of each of the 12 fixtures. Product Address Product Address Product Address switch switch... -
Page 9: Copying Physical Fader Assignment
This process will copy the physical fader assignment from one fixture into another. Copying Physical Press <PROGRAM> and <TAP SYNC/DISPLAY>. This will enter the physical fader Fader Assignment assignment mode. Press & hold the fixture button that contains the desired physical fader assignment. While still holding the previous fixture button, press &... -
Page 10: Create A Chase
A chase is a series of scenes. Program the scenes before programming the chases. Create a Chase Enter program mode. Select the chase that will be programmed (1–6). Call up the first scene for the chase by pressing the appropriate <SCENE> button. You may use <BANK UP/DOWN>... -
Page 11: Playback
6. Playback Scene Playback This controller is capable of playing back a single scene at a time. The <SPEED> Manual Scene and <FADE TIME> faders will not function in this mode. Please see the instructions Playback (Single) below for further explanation. Set the controller in [MANUAL] playback mode. -
Page 12: Playback Modifications
Playback Modifications The controller will only respond to MIDI commands on the MIDI channel when it is MIDI Operation set to full stop. Perform all MIDI control using Note on commands. All other MIDI instructions are ignored. To stop a chase, send the blackout on note. The controller is always in MIDI receive mode. -
Page 13: Technical Information
7. Technical Information To maintain optimum performance and minimize wear, fixtures should be cleaned Maintenance frequently. Usage and environment are contributing factors in determining frequency. As a general rule, fixtures should be cleaned at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 14: Returns
In case you need to return a product or request support, follow the procedure below: · If you live in the U.S., contact Chauvet World Headquarters (see Contact Us). · If you live in the UK or Ireland, contact Chauvet Europe Ltd. (see Contact ·... -
Page 15: Antes De Empezar
WORLD HEADQUARTERS - Chauvet Contact Us General Information Technical Support Address:5200 NW 108th Avenue Voice: (954) 577-4455 (Press 4) Sunrise, FL 33351 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free:(800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd.
