Installation guide for :
- SPH-EVO950DAB-T
- SPH-EVO950DAB-C-T
Ford Transit - V362MCA + V363MCA
From 2018 onwards

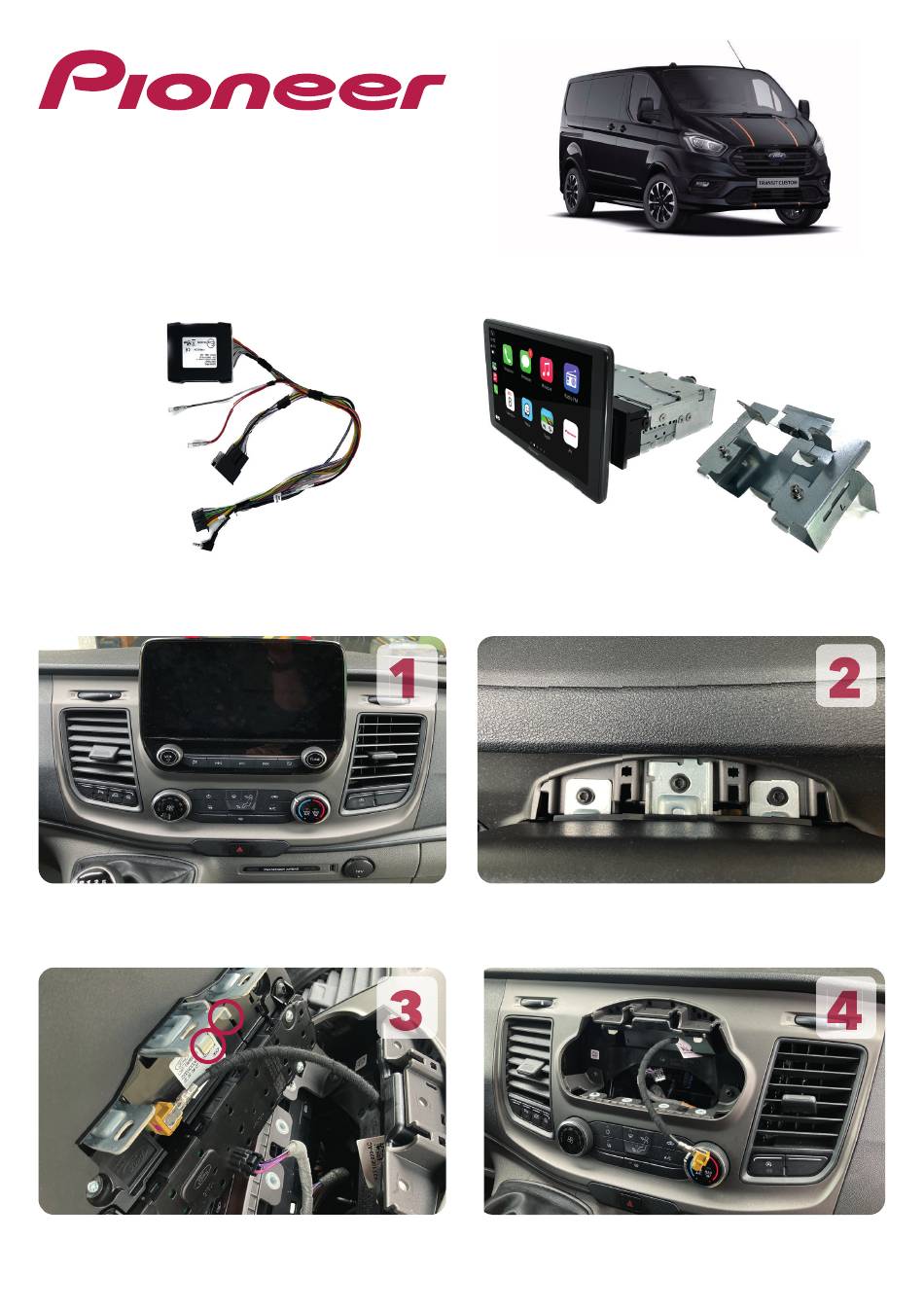

Interface
Pre-assembled SPH-EVO950DAB unit with
Depending on the kit, the interface may look different
Ford Transit installation kit
Steps 1 - 7 are for vehicles with OEM touch screen unit only.
Original dashboard setup
Remove the cover right behind the top of the
with 5" / 7" / 8" touch screen head unit.
screen and remove the three screws.
Slightly lift the unit and remove it from the
Remove the original frame from the dashboard.
dashboard. Remove the two connectors.
Pioneer installation manual - Ford Transit SPH-EVO950DAB - v1.01
