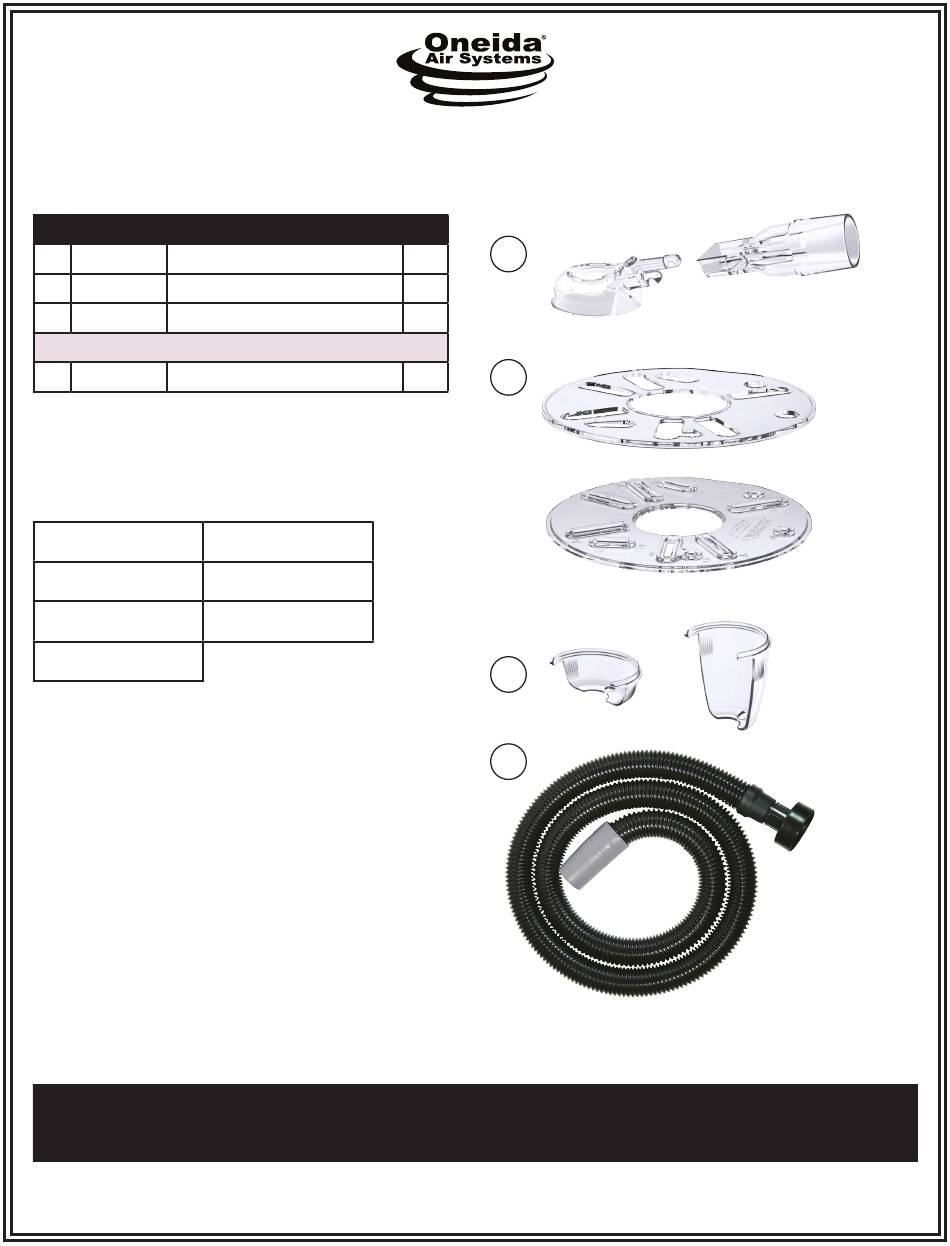

Universal Dust-Free Router Hood Instruction Sheet
ID
Part Number
Part Description
A
ARH000002
Dome and Cuff
B
ARH000000
Base Plates
C
ARH000001
Shallow and Deep Chip Cover
INCLUDED ONLY WITH ROUTER HOOD KIT (AXH000200)
D
AHE000001
1.5" x 6.5' Hose Whip
Please unpack the parts carefully and confirm you received each item listed here.
You will need the following tools:
Phillips Head Screwdriver
Tape
Power Drill
Drill Bit
Wet/Dry Vacuum
Countersink Bit
Vacuum hose adapters
Contact our Customer Service Department for further assistance
1-866-387-8822 • support@oneida-air.com • oneida-air.com/contact-us
1001 West Fayette Street, Syracuse, NY 13204 U.S.A. • Copyright © 2024
Qty
A
1
1
1
B
1
C
D
Oneida Air Systems, Inc.
Doc. #ZBI000011
