QCIOT-013-28022POCZ
QCIOT-013 Digital Power Monitor Board
This document provides quick-start instructions for the QCIOT-013 Digital Power Monitor (DPM) Board that
include setting up and programming the board.
Important: To ensure the QCIOT-013 Digital Power Monitor (DPM) Board is set up correctly, complete the steps
in the order listed in Quick Start Procedure.
Contents
1.
Board Information .......................................................................................................................................... 1
1.1
How to Get the Board ............................................................................................................................ 1
1.2
Board Contents ...................................................................................................................................... 2
2.
Quick Start Procedure ................................................................................................................................... 3
2
2.1
studio and the Mobile App ....................................................................................................... 3
2.2
Kit Hardware Connection ....................................................................................................................... 3
3.
Board Test ...................................................................................................................................................... 5
3.1
Program the Renesas Development Board ........................................................................................... 5
4.
Revision History ............................................................................................................................................ 9

1. Board Information

1.1

How to Get the Board

To obtain the QCIOT-013 Digital Power Monitor (DPM) Board (QCIOT-013-28022POCZ), go to the Renesas
product page.
Part Number
QCIOT-013-28022POCZ
R15UZ0009EU0100 Rev.1.00
Mar 25, 2024

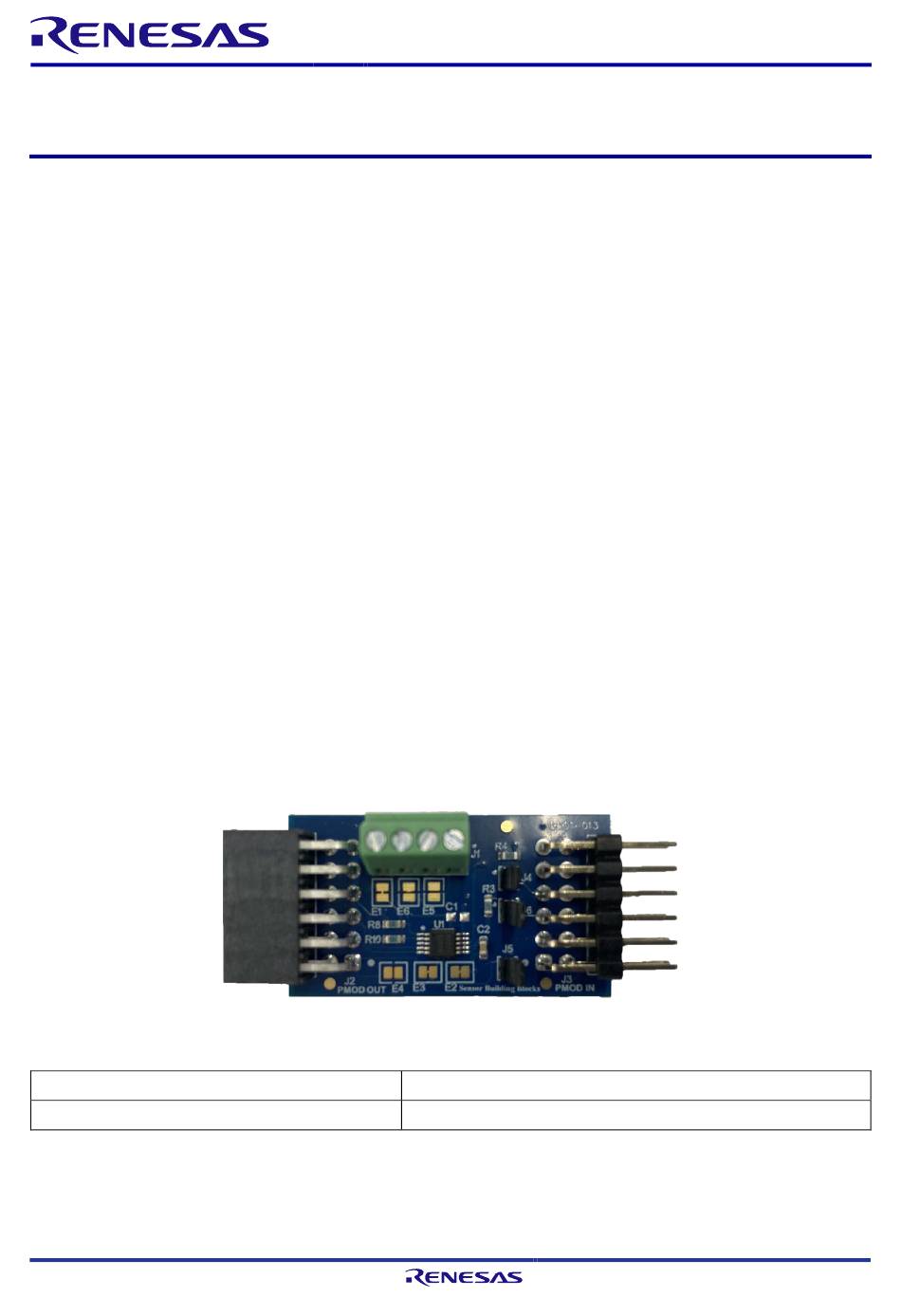

Figure 1. QCIOT-013 Digital Power Monitor Board
Quick Start Guide
Description
QCIOT Digital Power Monitor Pmod Board
© 2024 Renesas Electronics
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QCIOT-013 and is the answer not in the manual?

Questions and answers

Related Manuals for Renesas QCIOT-013

Summary of Contents for Renesas QCIOT-013

  • Page 1: Table Of Contents

    This document provides quick-start instructions for the QCIOT-013 Digital Power Monitor (DPM) Board that include setting up and programming the board. Important: To ensure the QCIOT-013 Digital Power Monitor (DPM) Board is set up correctly, complete the steps in the order listed in Quick Start Procedure.

  • Page 2: Board Contents

    QCIOT-013-28022POCZ Quick Start Guide Board Contents The QCIOT-013 board can measure voltages in the presence of common-mode voltages ranging from 0V to 60V, and it can measure the variable input current and power consumption. The board can also report diagnostics by configuring the fault thresholds of the bus voltage and shunt voltage.

  • Page 3: Quick Start Procedure

    US082-INTERPEVZ interposer board. Insert the board into the MCU connector before adding any sensor boards. 2. Ensure that the Pin 12 of Pmod is 3.3V, which is requested by QCIOT-013. a. For FPB-RA4E1 and FPB-RA6E1, the Pin 12 of Pmod is 5V by default. Short the trace jumper E1 and open E2 to get 3.3V on Pmod1.
  • Page 4 Rshunt Figure 3. Connect the Target System with QCIOT-013 5. Plug in the QCIOT-013 Board to PMOD1 connector of FPB4AE1. Be careful to align Pin 1 on the power board and MCU kit. 6. Connect the FPB board with the computer using the USB micro-B cable.

  • Page 5: Board Test

    QCIOT-013-28022POCZ Quick Start Guide 3. Board Test Program the Renesas Development Board 1. Open the sample project in e studio. Figure Figure 5. ISL28022 Project Structure Open the ra_isl28022_profile.c file. Verify the ISL28022_RSHUNT_OHM_USER setting. This value should match the shunt resistor you have chosen. In this example, the default 25Ω resistor is used. If the shunt resistor is different than 25Ω, change this setting.
  • Page 6 QCIOT-013-28022POCZ Quick Start Guide Figure 6. Project Header Files 2. Go to the menu bar and select Run > Debug Configuration. Figure 7. Debug Configuration Page 6 R15UZ0009EU0100 Rev.1.00 Mar 25, 2024...
  • Page 7 QCIOT-013-28022POCZ Quick Start Guide 3. Select Renesas GDB Hardware Debugging > isl28022_Sandbox_Debug. 4. Click the Debug button. Figure 8. Start Debug Mode After clicking the Debug button, the code enters debug mode. Figure 9. Debug Mode Page 7 R15UZ0009EU0100 Rev.1.00...
  • Page 8 QCIOT-013-28022POCZ Quick Start Guide 5. Go to the menu bar, select Renesas Views > Debug > Renesas Debug Virtual Console. Figure 10. Open Virtual Console In the bottom panel, the Renesas Debug Virtual Console appears. Figure 11. Renesas Debug Virtual Console Page 8 R15UZ0009EU0100 Rev.1.00...

  • Page 9: Revision History

    QCIOT-013-28022POCZ Quick Start Guide 6. Click and information appears in the Renesas Debug Virtual Console window. Figure 12. Debug Information 4. Revision History Revision Date Description 1.00 Mar 25, 2024 Initial release. Page 9 R15UZ0009EU0100 Rev.1.00 Mar 25, 2024...

  • Page 10: Contact Information

    Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
