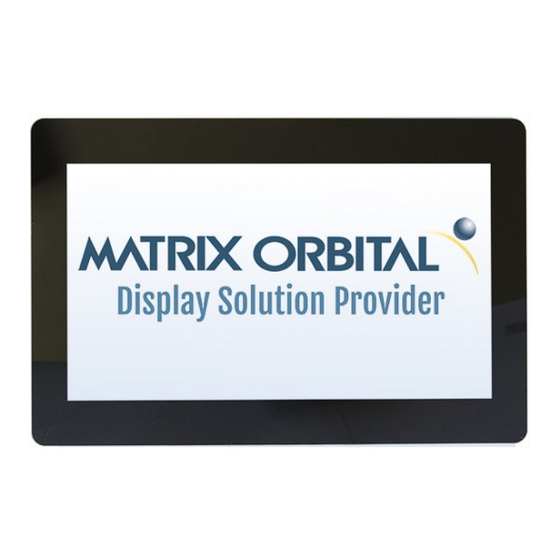

- Page 1 HTT101A/G-IPS-1280800A For all variants of the HTT101A/G-IPS Hardware Manual Revision 1.0 PCB Revision: 3.0 or Higher...
-
Page 2: Table Of Contents
Backlight Auto Dim ......................................12 Mounting ............................................. 12 10.1 HTT101G Series ........................................12 10.2 HTT101A Series ........................................13 Getting Started ..........................................13 USB Drivers............................................14 TFT & Extended Display Information Data ................................ 14 Troubleshooting ..........................................15 Recommended Accessories ....................................... 16 Revision History .......................................... -
Page 3: Contact
Need a custom solution? No problem! Since we manufacture our products in-house, we are highly flexible, have low MOQ`s and provide you what you need. From custom headers to custom cables to entire custom displays, we can make what you need. MATRIX ORBITAL Phone: 403.229.2737 Email:... -
Page 4: Introduction
DVI/HDMI interface • Automatic resolution detected provided by EDID • Available with: • No touch panel (-TPN) • Resistive touch panel (-TPR) Capacitive touch panel (-TPC) Oversized Capacitive touch panel (G -TPC) Functional Diagram MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 5: General Information
Display Colors 16.7M 24-bit Interface HDMI 1.0 Type-A or FFC Display Driver IC TFP401A or Equivalent Touch USB HID, Multi Touch (TPC) Operating Temperature -20 to 70 °C Storage Temperature -30 to 80 °C MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 6: Part Numbering
-H8: Vertical HDMI, MATE-N-LOK USB & Power Protocol -CH: HDMI interface Voltage -V5: 5.0V -VPT: 9V - 35V Designator Addons Speaker -SPK Piezo Speaker Haptic -HAP Haptic Motor Gorilla Glass -GG Gorilla Glass Gen 3 Water/Glove -WG Water/Glove Capable MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 7: Dimensional Drawings
Dimensional Drawings All dimensions are maximum +/- 0.3mm, typical is +/- 0.15mm maximum HTT101A MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 8: Htt101G
All dimensions are maximum +/- 0.3mm, typical is +/- 0.15mm maximum HTT101G MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 9: Characteristics & Specifications
Touch Panel sensitivity can be set on the touch panel. Settings are Normal, High, Extra (thickness is dependent of Touch Sensitivity display) A Series G Series A/G -WG Material Acrylic Glass Acrylic Glass Acrylic Glass Normal High Extra High MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 10: Environmental
*Note: The composition of the Cover Lens may affect the touch panel’s operation. The values listed should be taken as reference only. Environmental Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C Operating Relative Humidity* 90% (T < 60°C) No condensation at any temperature *Note: MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 11: Headers
5.5mm center positive barrel jack that conforms to the voltage and current requirements of your display. Please consult the Power section for details. By default, the display must be powered by the 2 pin MATE-N-LOK header or barrel jack. MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 12: Micro Mate-N-Lok Power Header
The HTT has a number of advanced optional features that are software configured by direct commands to the display or Additional Features by the HTT Utility. Haptic motor and piezo speaker can be used individually or together for the maximum user experience. MATRIX ORBITAL Phone: 403.229.2737 Email:... -
Page 13: Screen Rotation
Adhesive: 3M VHB 0.6mm (3M 5925) or similar. The tape can maintain its bond in environments of 100% relative humidity at 38°C, and can withstand temperatures up to 149°C. MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 14: Htt101A Series
The A series uses 4 mounting points with a 3.05mm diameter. M3 and 4/40 screws can be used. Chassis grounding is 10.2 HTT101A Series optionally provided, please contact us for more information. When connecting your HTT display, power must first be applied through the Micro Mate-N-Lok or optional barrel jack Getting Started header. -
Page 15: Usb Drivers
The HTT’s on-board EDID comes preconfigured, so users won’t have to worry about setting up their screen resolution or EDID display timings. Once plugged in, the EDID settings will be read automatically, setting the HTT’s display resolution. For modifications or custom EDID please contact us. MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 16: Troubleshooting
• Check the power connector in use on your display. If the connector has become loose or you are unable to resolve the issue, please contact a friendly Matrix Orbital support representative. • If your display is powered successfully and connected to an HDMI source, the video feed should appear on screen Display immediately. -
Page 17: Recommended Accessories
Output Voltage: 5V DC @ 2A AC Plugs Included: North American (NEMA), Europlug (Type C), UK (Type G), Australia/China/New Zealand/Argentina (Type I) Revision History March 30 2024 First Release Henry Revision Date Description Author MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca...
