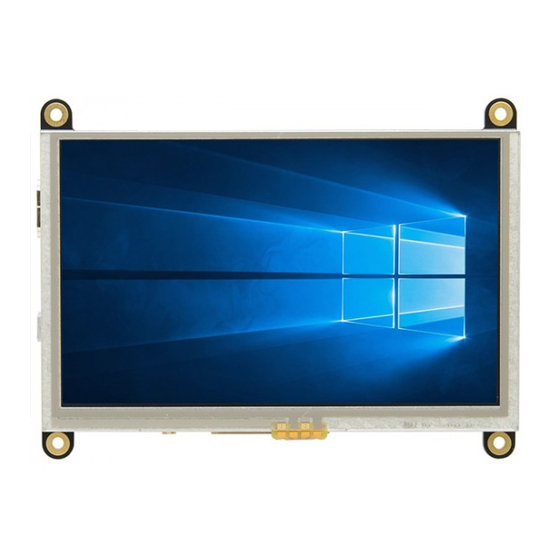

Summary of Contents for Matrix Orbital HTT50A/G-IPS
- Page 1 HTT50A /G-IPS For all variants of the HTT50A/G-IPS Hardware Manual Revision 1.0 PCB Revision: 3.0 or Higher...
-
Page 2: Table Of Contents
HTT50G Series ................................13 10.2 HTT50A Series ................................14 Getting Started ..................................14 USB Drivers.................................... 15 TFT & Extended Display Information Data ..........................15 Troubleshooting ..................................16 Recommended Accessories ..............................17 Revision History..................................17 MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 3: Contact
Need a custom solution? No problem! Since we manufacture our products in-house, we are highly flexible, have low MOQ`s and provide you what you need. From custom headers to custom cables to entire custom displays, we can make what you need. MATRIX ORBITAL Phone: 403.229.2737 Email:... -
Page 4: Introduction
HDMI / DVI interface • Automatic resolution detected provided by EDID Available with: • No touch panel (-TPN) Resistive touch panel (-TPR) Capacitive touch panel (-TPC) Oversized Capacitive touch panel (G -TPC) Functional Diagram MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 5: General Information
Display Colors 16.7M 24-bit Interface HDMI 1.0 Type-A or FFC Display Driver IC TFP401A or Equivalent Touch USB HID, Multi Touch (TPC) Operating Temperature -20 to 70 °C Storage Temperature -30 to 80 °C MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 6: Part Numbering
-CH: HDMI interface Voltage -V5: 5.0V -VPT: 9V - 35V Designator Addons Speaker -SPK Piezo Speaker Haptic -HAP Haptic Motor Bonding -OPT Optical Bonding Gorilla Glass -GG Gorilla Glass Gen 3 Water/Glove -WG Water/Glove Capable MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 7: Dimensional Drawings
Dimensional Drawings HTT50A All dimensions are maximum +/- 0.3mm, typical is +/- 0.15mm maximum MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 8: Htt50G
HTT50G All dimensions are maximum +/- 0.3mm, typical is +/- 0.15mm maximum MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 9: Characteristics & Specifications
-GG uses generation 3 Gorilla Glass for extra hardness. A Series G Series Parameter -TPR -TPC -TPC -WG -TPC -TPC -WG IC Driver MXT366T ILI2511 GT911 ILI2511 Touch Points Hardness Water/Glove Capable IC Driver listed or equivalent MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 10: Touch Sensitivity
*Note: The composition of the Cover Lens may affect the touch panel’s operation. The values listed should be taken as reference only. Environmental Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C Operating Relative Humidity* 90% (T < 60°C) *Note: No condensation at any temperature MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 11: Headers
2.1mm Center Positive Header Options Header Horizontal HDMI, Mini-B USB, Vertical Barrel Jack Power Vertical HDMI, Mini-B USB, Vertical Barrel Jack Power Horizontal HDMI, MATE-N-LOK USB & Power Vertical HDMI, MATE-N-LOK USB & Power MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 12: Standard Type A Hdmi
Low profile power header available in vertical or horizonal configuration. The display must be powered by the 2 pin MATE-N-LOK header or barrel jack. Display Header Standard Mate Micro MATE-N-LOK 2-1445057-2 Micro MATE-N-LOK 1445022-2 Table 2: Power Adaptor Pinout Function Optional Mate-n-Lok to 2.1mm barrel jack cable adapter. MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 13: Micro Mate-N-Lok Usb Header
Touch panel sensitivity can be set on Capacitive touch panels. Settings are Normal, High, Extra (thickness is dependent on display) A Series G Series Material Acrylic Glass Acrylic Glass Normal 0.55 0.55 High 1.50 2.00 MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 14: Backlight Brightness
Adhesive: 3M VHB 0.6mm (3M 5925) or similar. The tape can maintain its bond in environments of 100% relative humidity at 38°C, and can withstand temperatures up to 149°C. Figure 2: Installation Figure 3: Completed Assembly Application Best Practices: MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 15: Htt50A Series
No further software configuration is required. The HTT is not fully compatible with TinkerOS-Android Marshmallow. The BeagleBone board will autodetect the HTT’s EDID display settings automatically. No further software configuration is required. MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 16: Usb Drivers
For modifications or custom EDID please contact us. TFT Display Used For more detailed information for the TFT’s Electro-Optical Characteristics, Reliability Test Conditions, Inspection Criteria, and Handling Precautions. Please consult the Parallel TFT Datasheet MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 17: Troubleshooting
Once downloaded, run the calibration program and follow the instructions that appear on screen. • If you are using a capacitive touch display, make sure the screen is clear of debris or droplets. MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca... -
Page 18: Recommended Accessories
Output Voltage: 5V DC @ 2A AC Plugs Included: North American (NEMA), Europlug (Type C), UK (Type G), Australia/China/New Zealand/Argentina (Type I) 16 Revision History Revision Date Description Author March 31 2020 First Release Henry MATRIX ORBITAL Phone: 403.229.2737 Email: support@matrixorbital.ca...
