Summary of Contents for Pulsar PG13000BRCO
-
Page 1: Installing The Handles

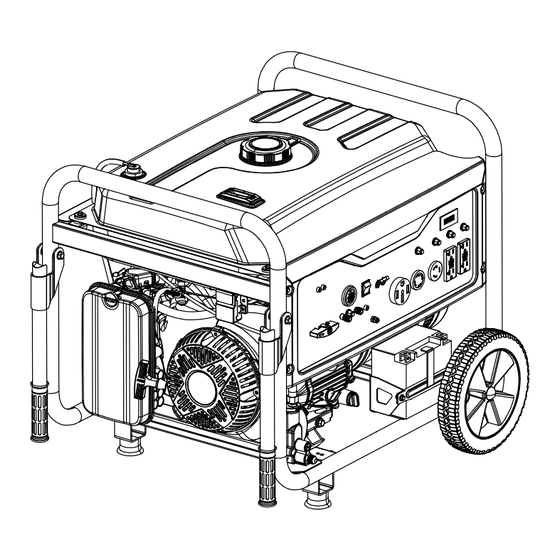

Model No.: PG13000BRCO Generator OPERATOR’S MANUAL support@pulsar-products.com... -
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction.....................................3 Product Specifications..............................3 Parts Ordering / Customer Service..........................3 Safety Rules....................................4 Safety Symbols................................4 Safety Instructions ..............................4 Features....................................7 Assembly ....................................9 Unpacking ..................................9 Packing List ................................9 Attaching Wheels ................................ 1 0 Installing support leg .............................. -
Page 3: Introduction
INTRODUCTION Thank you for purchasing this superior quality portable generator from Pulsar P roducts Inc. When operating and maintaining this product as instructed in this manual, your generator will give you many years of reliable service. Product Specifications: This generator is an engine-driven, revolving field, alternating current (AC) portable generator. It is designed to supply electrical power to operate tools, appliances, camping equipment, lighting, or serve as a backup power source during power outages. -
Page 4: Safety Rules
SAFETY RULES Safety Symbols Indicates a potentially hazardous situation which could result in serious injury or death if not WARNING! avoided. Indicates a potentially hazardous situation which could result in damage to equipment or CAUTION! property. Toxic Fumes Risk of fire Risk of explosion Risk of electric shock Hot surface... - Page 5 SAFETY RULES WARNING! Never exceed generator’s wattage / amperage capacity. This could damage the generator and / or connected electrical devices. Check operating voltage and frequency requirements of all electrical devices prior to plugging them into the generator. • WARNING! Never start or stop engine with electrical devices plugged in to the receptacles.
- Page 6 SAFETY RULES This generator produces high voltage which could result in burns or WARNING! electrocution causing serious injury or death. • Never handle the generator, electrical devices, or any cord while standing in water, while barefoot, or when hands or feet are wet.
-
Page 7: Features
FEATURES I J K L H. 12 Volt 8.3 Amp Output (For charging batteries only) A. Push Start I. Battery Indicator B. ON/OFF Switch J. Ground Terminal C. Main Circuit Breaker K. 120V/240V AC, 50 A Outlet (NEMA 14-50R) D. Status Display L. - Page 8 FEATURES O. Tank Vapor Valve P. Fuel Gauge Q. Choke Lever R. Air Filter Housing S. Handle T. Pull Start U. Support Feet V. Fuel Cap W. Gas Tank X. Fuel Valve Y. CO sensor Z. Oil Fill (Dipstick) AA. Propane Inlet BB.
-
Page 9: Assembly
ASSEMBLY Unpacking 1. Place box on a level surface. 2. Remove all items from box except the generator. Make sure all items listed on the packing list are included and undamaged. 3. Cut-down the sides of the box being careful to avoid touching the generator. 4. -
Page 10: Attaching Wheels
ASSEMBLY Attaching Wheels (See fig 1) • Parts needed - 2 wheels, 2 axles, 2 hair pins, and 2 washers. • Raise or tilt generator so you can slide the wheel axle pin into the wheel, the washer, the wheel mounting hole located on the side of the frame. -
Page 11: Attaching Battery Cable
ASSEMBLY Attaching Battery Cable (See fig 3) • Locate the pigtail harness already attached to the battery (-) negative post • Ensure the hardware is tight and the red rubber boot is fitted over the (+) battery • connection Align the male and female battery cable connectors and firmly fit them together CAUTION! Be careful not to short across the terminals when installing. -
Page 12: Adding Oil/Checking Engine Oil
ASSEMBLY DANGER/POISON NON-SPILLABLE FLUSH EYES SEALED BATTERY IMMEDIATLEY WITH WATER This is a ready filled, SHIELD activated sealed battery. SULFURIC EYES. Never remove strip. EXPLOSIVE ACID MEDICAL SPARKS Refer to owner’s manual GASES CAN CAN CAUSE HELP FLAMES CAUSE BLINDNESS or instruction sheet for BLINDNESS OR FAST... -
Page 13: Adding Fuel
ASSEMBLY Adding Fuel (See fig 6) • Set generator outdoors in a well-ventilated area, away from structures and people. • Slowly remove fuel cap. • Insert a funnel into the fuel tank and carefully pour gasoline into the tank until fuel level reaches 1 ½ inches below the top of the neck. -
Page 14: Operation
OPERATION Grounding the Generator (See fig 7) The portable generator is equipped with a terminal for the connection of a ground electrode conductor where a grounding electrode system is required by NEC Article 250.34(A). The equipment grounding conductors of the generator receptacles are bonded to the generator frame. -
Page 15: How To Stop Engine
OPERATION Never start or stop engine with electrical devices plugged in to the receptacles. Failure to WARNING! heed this warning could damage the generator and / or connected electrical devices. • Always start the engine and let it stabilize before connecting any electrical devices. •... -
Page 16: Extension Cord Selection
OPERATION 120 / 240 Volt AC, 30 Amp locking receptacle • This receptacle has a 30 Amp push-to reset circuit breaker to protect against overload. • This receptacle is rated to operate 120 Volt, AC, single phase, 60Hz loads requiring up to 3600 watts (3.6 kW) at 30 Amps. -
Page 17: Wattage Reference Guide
OPERATION Operating voltage and frequency requirement of all electrical equipment should be checked prior to plugging them into this generator. Damage may result if the equipment is not designed to operate within a +/- 10% voltage variation, and +/- 3 Hz frequency variation from the generator name plate ratings. -
Page 18: Power Management
OPERATION Hour Meter (See Fig 19) Use this meter along with the manual to determine when and what type of service on the unit is needed. The display will show the word “LUBE” at the first 25 hours of operation and again at every 100 hours of operation after. Power Management Start engine without anything connected to generator. -
Page 19: Maintenance
MAINTENANCE Regular maintenance will extend the life of this generator and improve its performance. The warranty does not cover items that result from operator negligence, misuse, or abuse. To receive full value from the warranty, operator must maintain the generator as instructed in this manual, including proper storage. Before inspecting or servicing this machine, make sure the engine is off and no parts are WARNING! moving. -
Page 20: Changing Oil
MAINTENANCE Changing Oil (See Fig 21) • Run the Generator until the Engine is warm, then shut OFF. • Place generator on a level surface. • Remove the crankcase dipstick. • Place an oil pan underneath the oil drain hole to collect used oil. Oil Fill &... -
Page 21: Cooling System
Spark Arrestor (See Fig 24) • Inspect the spark arrestor for breaks or holes. Replace if necessary. To purchase a replacement spark arrestor contact PULSAR customer service. • Use a brush to remove carbon deposits from the spark arrestor screen as needed. -
Page 22: Draining Fuel Tank And Carburetor
MAINTENANCE Hi High Altitude Operation At high altitude, the standard carburetor air/fuel mixture will be too rich. Performance will decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting. Operation at an altitude that differs from that at which this engine was certified, for extended periods of time, may increase emissions. -
Page 23: How To Store
MAINTENANCE Draining the carburetor • Turn the fuel valve to the OFF position. • Turn the battery switch to stop. • Position a suitable container under the carburetor drain screw to catch fuel; loosen and remove the screw. • Allow fuel to drain completely into container, be sure to wipe up any spilled fuel right away. •... -
Page 24: Troubleshooting
TROUBLESHOOTING Problem Cause Solution Engine is running, but AC output is not 1. Open circuit breaker 1. Reset circuit breaker available 2. Poor connection 2. Check and repair 3. Defective cord set 3. Check and repair 4. Connected device is faulty 4. -
Page 25: Co Sensor
The YELLOW light will flash for at least five minutes after a fault. The generator can be re-started, but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Pulsar service center. -
Page 26: Diagrams
DIAGRAMS...
