Eaton

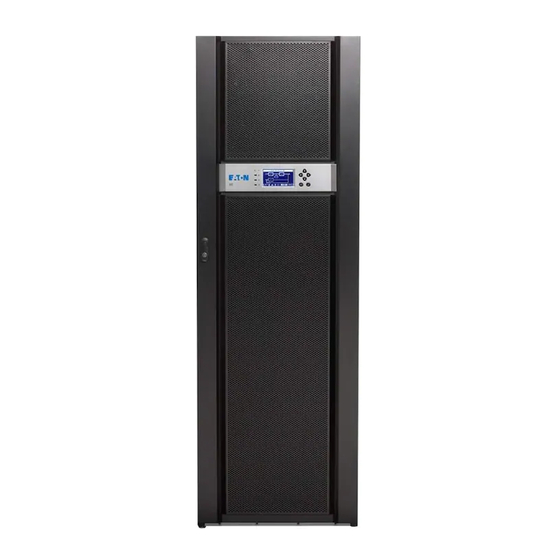

93E UPS
300-500 kVA (380/400/415V)
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 93E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton 93E

Summary of Contents for Eaton 93E

  • Page 1 ® Eaton 93E UPS 300-500 kVA (380/400/415V) Installation and Operation Manual...
  • Page 3 ©2019 Eaton Corporation All Rights Reserved The contents of this manual are the copyright of the publisher and may not be reproduced (even extracts) unless permission granted.

  • Page 4: Table Of Contents

    Single UPS ................Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...
  • Page 5 DAILY Maintenance ............. . . Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...
  • Page 6 UPS Environmental ..............Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 7: List Of Figures

    Eaton 93E UPS (300-500 kVA) ........

  • Page 8: List Of Tables

    Table 3-5. UPS External Power Cable Terminations for the Eaton 93E 300-500kVA......

  • Page 9: Introduction

    Eaton Customer Service Engineer, or the warranty terms may become void. This service is offered as part of the sales contract for the UPS. Contact an Eaton service representative in advance (usually a two-week notice is required) to reserve a preferred startup date.

  • Page 10: Ups Standard Features

    The 93E Series UPS offers a High-Efficiency (HE) normal mode with double-conversion on demand that allows the UPS to operate in standby bypass mode. This mode allows the 93E 80-200kVA UPS to achieve 99% efficiency while still protecting the load. See Chapter 6, “UPS Operating Instructions, ” for additional information.

  • Page 11: Options And Accessories

    1 .2 Options and Accessories Contact an Eaton sales representative for information about the following options. 1 .2 .1 External Battery Cabinet Battery backup protection is provide by equipping the UPS system with up to four External Battery Cabinets (EBCs) containing sealed lead-acid, maintenance-free batteries. The EBCs are housed in single, free-standing cabinets designed for line-up-and-match installation, but may be installed separate from the UPS cabinet.

  • Page 12: Battery System

    1 .5 Using This Manual This manual describes how to install and operate the Eaton 93E 80-200 kVA. Read and understand the procedures described in this manual to ensure trouble-free installation and operation. In particular, be thoroughly familiar with the REPO procedure (see paragraph 6.3.13).

  • Page 13: Symbols, Controls, And Indicators

    Installation instructions, including site preparation, planning for installation, wiring and safety information, and detailed illustrations of cabinets with dimensional and connection point drawings. Visit www.eaton.com/powerquality or contact an Eaton service representative for information on how to obtain copies of these manuals.

  • Page 14: Safety Warnings

    The UPS unit is not suitable for IT or corner-earthed power distribution systems. • Only when LCD indicate: please close battery breaker", it is OK to close external battery breaker. • Polarity of battery should be connected correctly. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...
  • Page 15 This product is designed for commercial and industrial applications. In a residential environment, the product may cause radio interference , in which the user may be required to take additional measures. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 16: Ups Installation Plan And Unpacking

    Have authorised service personnel perform preliminary operational checks and start up the system. NOTE Startup and operational checks must be performed by an authorized Eaton Customer Service Engineer, or the warranty terms specified in Warranty become void. This service is offered as part of the sales contract for the UPS.

  • Page 17: Preparing The Site

    When ignored, either one of these aspects can create an undesirable microclimate at the UPS location. If the environment created by this microclimate exceeds the Eaton UPS operating specification, the UPS reliability, over time, will be reduced. These same environmental extremes will also create reliability concerns for any servers that are exposed to them.

  • Page 18: Table 3-1. Ups Cabinet Weights

    Rating Input/Output Voltage BTU/hr x1000 (kg-cal/hr) Eaton 93E-300/300 300 kVA 380/380 400/400 415/415 43.42(10940) Eaton 93E-400/400 400 kVA 380/380 400/400 415/415 57.90(14587) Eaton 93E-500/500 500 kVA 380/380 400/400 415/415 72.34(18232) Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...
  • Page 19 Top View Front View Right View Bottom View Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 20: Figure 3-1 . Ups Cabinet Dimensions (Top Front \ Right \ Bottom Views)

    Rear View Figure 3-1 . UPS Cabinet Dimensions (Top Front \ Right \ Bottom Views) Dimensions are in millimetres [inches] Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 21: Figure 3-2. Ups Cabinet Centre Of Gravity

    Figure 3-2 . UPS Cabinet Centre of Gravity Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 22: Ups System Power Wiring Preparation

    30°C, higher temperature wire and/or larger size wire may be necessary. Wire sizes are based on using the specified breakers. • Material and labour for external wiring requirements are to be supplied by designated personnel. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...
  • Page 23 UPS. If a 4 pole Automatic Transfer Switch is installed upstream of the UPS it must work with a break before make transition with a minimum transfer time of 50ms. • Figure 4-2 show the location of the UPS power cable terminals. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 24: Table 3-4. Input/Output Ratings And External Wiring Requirements For The Eaton 93E 300-500Kva

    Table 3-4 . Input/Output Ratings and External Wiring Requirements for the Eaton 93E 300-500kVA Units Rating 50/60 Hz cross-sections Basic Unit Rating Refer the IEC 62040-1 Input and Output Voltage Volts 400/400 400/400 400/400 A: AC Input to UPS Rectifier (0 .99 Minimum pF)

  • Page 25: Table 3-5. Ups External Power Cable Terminations For The Eaton 93E 300-500Kva

    Table 3-5 . UPS External Power Cable Terminations for the Eaton 93E 300-500 kVA Terminal Tightening Torque Function Terminal Function Bus landing Nm (lb in) Screw Size and Type AC Input to UPS Rectifier Phase A M12 bolt mounting 30(256.56) M12 Hex.(113mm2)

  • Page 26: Table 3-8. Recommended Maintenance Bypass Switch Ratings

    If the conductors used for DC input from the battery cabinets to the UPS are those provided by the UPS manufacturer, and the UPS and battery cabinets are manufactured by the same supplier, then it is acceptable if they do not meet the noted minimum conductor sizes. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 27: Ups System Interface Wiring Preparation

    The maximum distance between the REPO and the UPS cannot exceed 150 metres (500 feet). • The harness between UVR/feedback coil of external battery breaker and relate terminal in UPS should be twisted- pair and double insulation . Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 28: Inspecting And Unpacking The Ups Cabinets

    Carefully inspect the outer packaging for evidence of damage during transit. CAUTION Do not install a damaged cabinet. Report any damage to the carrier and contact an Eaton service representative immediately. NOTE For the following step, verify that the forklift or pallet jack is rated to handle the weight of the cabinet (see Table 3-1 for cabinet weight).
  • Page 29 Inspect the contents for any evidence of physical damage, and compare each item with the Bill of Lading. If damage has occurred or shortages are evident, contact an Eaton service representative immediately to determine the extent of the damage and its impact on further installation.

  • Page 30: Ups System Installation

    (see Figure 4-1). Remove the shipping bracket. If installing the cabinet permanently, retain the shipping bracket and securing hardware for later use. Roll the cabinet to the final installation location.Fix the UPS on the basement bracket refer to FIG.3-1 DIMENSION REQUEST Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 31: External Maintenance Bypass Installation

    Refer to Table 3-4 for External Maintenance Bypass Wiring Requirements. • Refer to Table 3-8 for External Maintenance Bypass Breaker Ratings. • Refer to Figure 6-8 for External Maintenance Bypass connection method. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 32: External Battery Cabinet Installation

    Must confirm the correct polarity for the connections of bat+ and bat-! • Don't close battery breaker until receiving relate command from LCD. UPS and battery cabinet connection diagram is as follows: Battery Cabinet Battery Intput PE (protective earthing) Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 33: External Power Wiring Installation

    There are protective earthing terminals within the UPS for mains supply, load supply and battery. The battery cabinet earth protection can be connected either to the UPS or to a common earthing terminal outside the UPS. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 34: Figure 4-2. Power Terminal Locations

    Phase A (L1) Phase A (L1) AC Output to Critical Load Neutral (N) Ground Terminals Note: See Table 3-5 for bolt specifications for power terminals. Figure 4-2 . Power Terminal Locations Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 35: Installing Interface Connections

    +24V, BAT_UVR, FD_A, FD_B.+24V UVR in battery breaker should connect with +24V, BAT_UVR. The feedback coil in external battery breaker should connect with FD_A,FD_B. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 36: Figure 4-3. Interface Terminal Locations

    Building Alarm (See Figure 4-4 for detail) Parallel CAN Output (RJ45) REPO Terminals (See Figure 4-7 for detail) Parallel CAN Input (RJ45) Pull chain Terminals Figure 4-3 . Interface Terminal Locations Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 37: Installing Parallel Pull Chain And Can Control Wiring And Connections

    Ensure that each UPS static bypass is fed from a single common source, as is an external bypass switch if installed. If each UPS is fed with a separate rectifier source, please consult Eaton for advice on compatibility. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 38: Installing Mini-Slot Interface Connections

    NOTE LAN drop for connection to UPS communications card is to be supplied by customer. For installation and setup of an Mini-Slot card, contact an Eaton service representative (see paragraph 1.8) To install wiring: If not already installed, install the LAN drop.

  • Page 39: Figure 4-6. Parallel Diagram

    UPS 2 Battery Battery UPS 3 UPS 3 Outputs from Outputs from UPSs UPSs Battery Battery UPS 4 UPS 4 Battery Battery Parallel UPS system connections Figure 4-6 . Parallel Diagram Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 40: Installing A Repo Switch

    The REPO switch must be a normally-open or normally-closed latching-type switch not tied into any other circuits. • This procedure is intended for installing the Eaton-supplied REPO switch. If installing another manufacturer's switch, use this procedure, and Figure 4-8 and Figure 4-9 as a guide. •...

  • Page 41: Figure 4-8 Normally-Open Repo Switch Wiring

    Tightening Torque 3,4 NO See Figure 4-8 for wiring Twisted Wires (2) 7 lb in (0.5 -2.0 mm (0.8 Nm) REPRO Switch (No) Figure 4-8 . Normally-Open REPO Switch Wiring Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 42: Initial Startup

    Eaton Customer Service Engineer, or the warranty terms may become void.This service is offered as part of the sales contract for the UPS. Contact an Eaton service representative in advance (usually a two-week notice is required) to reserve a preferred startup date.

  • Page 43: Installation Checklist

     Air conditioning equipment is installed and operating correctly.  The area around the installed UPS system is clean and dust-free. (Eaton recommends that the UPS be installed on a  level floor suitable for computer or electronic equipment.) Adequate workspace exists around the UPS and other cabinets.

  • Page 44: Parallel System Installation Checklist

     Adequate workspace exists around the UPSs, parallel tie cabinet, and other cabinets.  Startup and operational checks are performed by an authorised Eaton Customer Service Engineer, for parallel systems.  Battery wire has correctly polarity and installation . ...
  • Page 45 Notes Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 46: Understanding Ups Operation

    5 .1 UPS System Overview The Eaton 93E UPS is a continuous-duty, solid-state, transformer-free, three-phase, true online system that provides conditioned and uninterruptible AC power to the UPS system's output and critical load. The basic system consists of a rectifier, battery converter, inverter, monitoring/operation control panel, integrated communication server, and digital signal processor (DSP) logic.

  • Page 47: Single Ups

    5 .2 .1 Modes The Eaton 93E UPS supports a critical load in four different modes of operation: • In Standard Normal mode, the critical load is supplied by the inverter, which derives its power from rectified utility AC power.

  • Page 48: High-Efficiency Mode

    NORMAL light on the front display will illuminate. 5 .2 .4 Bypass Mode CAUTION The critical load is not protected from voltage or frequency fluctuations or power outages while the UPS is in Bypass mode. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 49: Figure 5-3. Path Of Current Through The Ups In Bypass Mode

    Main Power Flow Contactor Switch Battery breaker Trickle Current (with 24V UVR Coil) Closed Energised Open De-Energised Battery Figure 5-3 . Path of Current Through the UPS in standard Bypass Mode Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 50: Battery Mode

    Normal mode. Depending on the total load and the duration of the battery discharge, battery current limit alarms may be seen for a short time due to the current required to recharge the battery. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 51: Single Ups Unit System Oneline Configurations

    The system oneline drawings in this section show the simplified internal structure of the UPS, battery supply, and basic maintenance bypass. Voltage Oneline Drawing UPS Model Input Output System Type See Figure 5-5 93E-300/300 380/400/415 380/400/415 Single Reverse Transfer UPS with External Battery 93E-400/400 93E-500/500 Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 52: Figure 5-5. Ups System Oneline

    L1, L2, Battery L3, N Converter Fuse CABINET Battery breaker (with 24V UVR Coil) EXTERNAL BATTERY CABINET NOTE Callout letters A,B,C,and Dmap to Table 3-4. Figure 5-5 . UPS System Oneline Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 53: Ups Operating Instructions

    Before operating the UPS, confirm the UPS nominal voltage and frequency from display by selecting Settings -> Info. • If the UPS need to be operated with another voltage or frequency, contact your closest Eaton office or Eaton authorized partner. NOTE The UPS in not a measuring device.

  • Page 54: Ups Controls And Indicators

    The controls and indicators identified and described in this section are used to control and monitor UPS operation. Figure 6-1 shows the controls and indicators and Figure 6-2 shows the UPS switches. Control Panel Door Latch Figure 6-1 . UPS Controls and Indicators Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 55: Control Panel

    6 .1 .1 Control Panel The control panel is used to set up and control the UPS, and to monitor UPS operation. For a description of the UPS control panel functions, see paragraph 6.2. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 56: Using The Control Panel

    The following paragraphs describe using the UPS control panel to monitor the UPS. See paragraph 6.3 for use of the operational controls. When the unit powers up, the screen displays the Eaton logo as shown in Figure 6-3. To advance to the Main Menu and Mimic screen, press any control panel pushbutton once.

  • Page 57: Table 6-1. Status Indicators

    Normal indicator is visible during normal UPS system operation. The other indicators illuminate to indicate alarms or events. When an alarm occurs, first check these indicators to see what type of event has taken place. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 58: Using The Lcd And Pushbuttons

    Figure 6-4 . Parts of the LCD A: The UPS status area automatically scrolls between the Eaton model number, current date and time, active alarms, UPS status, load percent, and battery runtime for the UPS. The top line of display blinks while scrolling when the system needs attention.

  • Page 59: Using The Menu

    The Mimic screen shows the internal components of the UPS cabinet and a real-time graphical representation of the operating status of the system. Figure 6-5 . Main Menu and Mimic Screen Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 60: Display Menu Operation

    RETURN pushbutton to display the Set Date and Time screen. To return to the System Setup screen, press the ESC pushbutton. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...
  • Page 61 LEFT or RIGHT arrow pushbutton to select the password character position. Use the UP or DOWN arrow pushbutton to change the password character. Once the password is entered, select CHANGE and then press the RETURN pushbutton Controls See paragraph 6.2.7 for details. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 62: System Controls

    Table 6-4 describes the control functions and provides instructions to access and use the command menu screens. Table 6-5 lists the typical System Status Screen Messages that are displayed during UPS operation. For detailed information about using the System Controls, see paragraph 6.3. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 63: Figure 6-7 . Typical System Control Screen

    Turns the battery charger on. Resting Turns the battery charger off. Table 6-5 . Typical System Status Messages Function Message Load Off; Bypass; Online, HE Bypass Off; On; Available Charger Charger Resting; Charger Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 64: Single Ups Operation

    Power is now supplied to the critical load in Standard Normal mode. It takes approximately one minute for the UPS to achieve Standard Normal mode. The Normal status indicator is illuminated. 16. If the UPS contains an output switch, close the output switch. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 65: Starting The Ups In Bypass Mode

    BYPASS command, then press the RETURN On the UPS System Control screen, select the NORMAL pushbutton. The UPS transfers to Bypass mode. The BYPASS status indicator is illuminated. The power module remains on. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 66: Transfer From Bypass To Normal Mode

    On the UPS System Control screen, select the HE: ENABLE DISABLE command, then press the RETURN pushbutton. The UPS transfers to Standard Normal mode. The NORMAL status indicator is illuminated. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 67: Transfer From Normal Mode To Internal Maintenance Bypass

    NOTE • The Neutral Switch should remain closed unless operated by a service technician. • Maintenance Bypass operate must be performed by an authorized Eaton Customer Service Engineer. WARNING Power is present inside the UPS cabinet. Rectifier input breaker Rectifier input...

  • Page 68: Transfer From Internal Maintenance Bypass To Normal Mode

    Select the CONTROLS symbol on the main menu bar. The System Control screen is displayed. Select Battery on the System Control screen. On the Battery System Control screen, select the CHARGING RESTING command, then press the RETURN pushbutton. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 69: Battery Test

    Do not attempt to restart the system after Load Off until the cause of the shutdown has been identified and cleared. To restart the UPS after pressing the LOAD OFF pushbutton, follow the procedure in paragraph 6.3.1 or 6.3.2. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 70: Using The Remote Emergency Power-Off Switch

    NOTE The following instructions are for the Eaton-supplied REPO switch. If a customer-supplied REPO switch is used, it may not activate in the same manner; refer to the operating instructions provided with the switch.

  • Page 71: Multiple Ups Parallel Operation

    Standard Normal mode. It takes approximately one minute for the UPS to achieve Standard Normal mode. The Normal status indicator is illuminated. 16. If the UPS contains an output switch, close the output switch. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 72: Starting The Parallel Ups In Bypass Mode

    If not already selected, select UPS on the System Control screen. On the UPS System Control screen, select the NORMAL BYPASS command, then press the RETURN pushbutton. All of the UPSs transfer to Bypass mode. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 73: Transfer From Bypass To Normal Mode

    To restart a single UPS from a shutdown state: Firstly make sure that external battery breaker is off and polarity of battery is correct. Close the MOB for the UPS being restarted. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 74: Ups And Critical Load Shutdown

    Open all external battery breakers. Make sure battery breaker is off before starting up UPS in next time. Only when LCD indicate" please close battery breaker" during start up UPS, it is OK to close external battery breaker. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 75: Charger Control

    LOAD OFF or BYPASS LOAD OFF command depending on the UPS mode, then press the RETURN pushbutton. The Verify Action screen is displayed, providing a choice to proceed or abort the shutdown. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 76: Using The Remote Emergency Power-Off Switch

    NOTE The following instructions are for the Eaton-supplied REPO switch. If a customer-supplied REPO switch is used, it may not activate in the same manner; refer to the operating instructions provided with the switch.
  • Page 77 Restart the UPS by following the procedure in paragraph 6.4.1 or 6.4.2. WARNING Power is present inside the UPS cabinet after the upstream input feeder circuit breakers are opened because of the installed external battery cabinet. Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 78: Communication

    Chapter 7 Communication This chapter describes the communication features of the Eaton 93E UPS. For terminal wiring information, see paragraph 3.2.3 and paragraph 4.5. For location of the customer interface panel and terminals, see Figure 4-3. 7 .1 Mini-Slot Cards The Eaton 93E UPS has two standard, factory-installed Mini-Slot communication bays.

  • Page 79: Ups Maintenance

    Each battery string is an energy source in itself. DO NOT ATTEMPT TO ACCESS ANY INTERNAL AREA OF THE BATTERY STRING YOURSELF . VOLTAGES ARE ALWAYS PRESENT IN THE BATTERY STRING. If you suspect that a battery string needs service, contact an Eaton service representative. If the string requires service contact an Eaton service representative.

  • Page 80: Performing Preventative Maintenance

    Monitor system parameters as described in paragraph 6.2, “Using the Control Panel” . Check the UPS air filters (located behind the front door) and wash or replace as necessary. See Figure 8-1 for filter location. Contact an Eaton service representative for replacement filters. To remove the filters: CAUTION Verify washed filter is thoroughly dry before reinstalling .

  • Page 81: Periodic Maintenance

    8 .2 .4 ANNUAL Maintenance Annual preventive maintenance should be performed only by authorised service personnel familiar with maintenance and servicing of the UPS system. Contact an Eaton service representative for more information about service offerings. 8 .2 .5 BATTERY Maintenance Contact an Eaton service representative for battery maintenance.

  • Page 82: Recycling The Used Battery Or Ups

    8 .5 Maintenance Training A basic training course, available from Eaton Corporation, gives you a competent working knowledge of the UPS system operation and teaches you how to perform first level corrective maintenance. For more information about training and other services, contact the Help Desk (see paragraph 1.8).

  • Page 83: Product Specifications

    160A maximum at any load up to100% load for 400KVA UPS 200A maximum at any load up to100% load for 500KVA UPS Line Surges 6 kV OC, 3 kA SC per ANSI 62.41 Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...

  • Page 84: Ups Output

    Acoustical Noise 300K<70dB, 400K<71dB,500K<70dB; At 1 m per ISO 7779 standard, at fully rated resistive load, normal mode and nominal input voltage at 25 °C. GB 7260.2 2009/ IEC 62040-2:2005 Eaton 93E UPS (300-500 kVA, 380/400/415V) Installation and Operation Manual...
