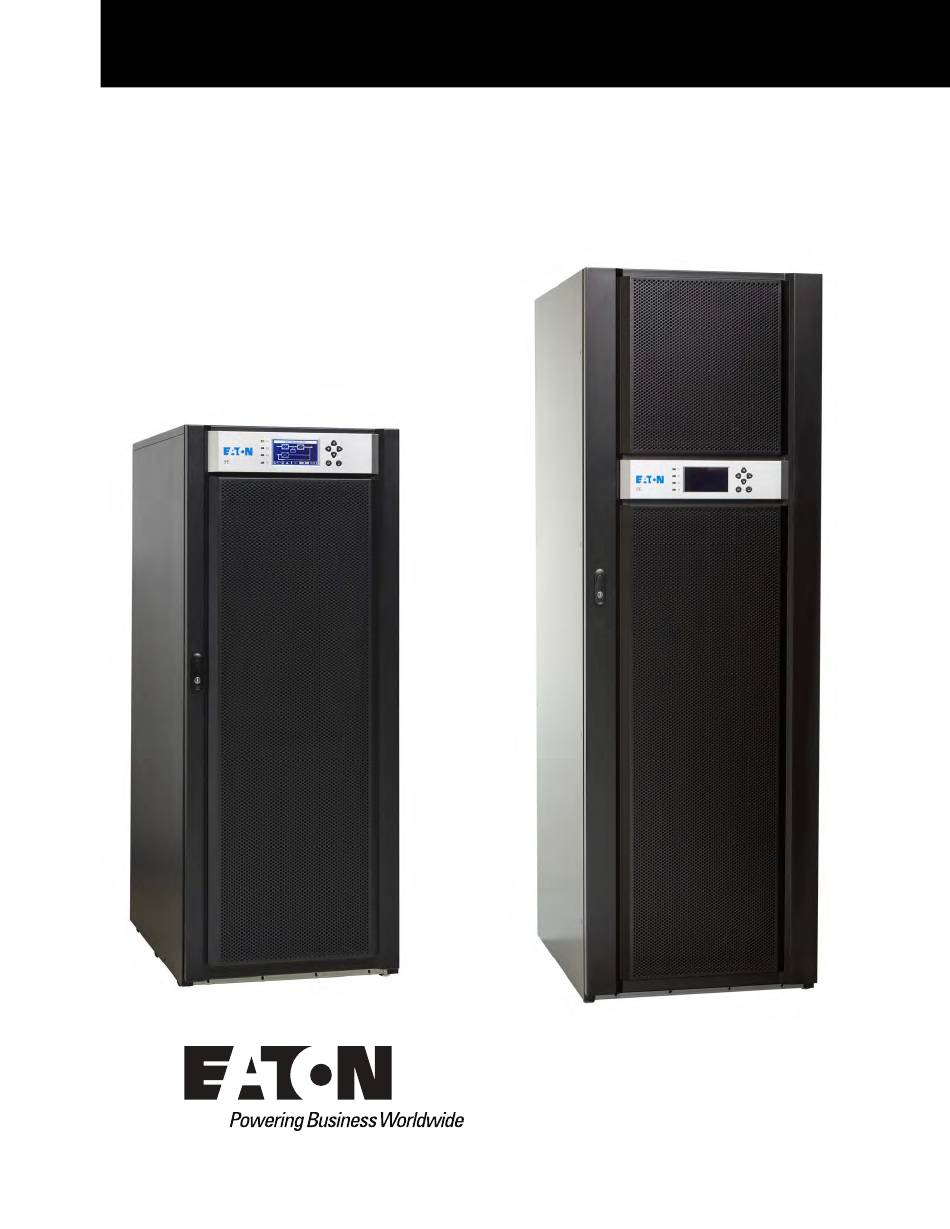

- Page 1 Eaton Series Battery Upgrade Instructions For use with the Eaton ® 93E (20–60 kVA) p/n: P-164000967 Revision 01...
- Page 2 Eaton reserves the right to change specifications without prior notice. Eaton is a registered trademark of Eaton. All other trademarks are property of their respective companies. ©Copyright 2020 Eaton, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Eaton.
- Page 3 Figure 1. Upgrade Kit P-106000220 (Two Cartons) Includes Two Single-Row Battery Trays and Two Wiring Harness Adapters Figure 2. Wiring Harness Adapter P-152001881 Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01...
- Page 4 Introduction Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01...
- Page 5 In the event of input power failure while performing this procedure, battery backup will not be available. Follow the instructions in the Eaton 93E UPS Installation and Operation Manual to place the 93E UPS in bypass and in maintenance bypass. However, if the UPS cannot be placed in maintenance bypass, this procedure can still be performed.
- Page 6 Battery Upgrade Instructions Figure 3. Eaton 93E 30 kVA and 60 kVA UPS Breaker Locations Input Breaker Battery Breaker (EBC capable option only.) 93E 30 kVA UPS 93E 60 kVA UPS Follow appropriate Lock Out /Tag Out (LOTO) and electrical safety procedures Remove dead front panels: •...
- Page 7 Battery Upgrade Instructions Figure 4. Eaton 93E 30 kVA and 60 kVA Battery Tray and Cabinet Wiring WARNING All battery trays must be disconnected before proceeding. Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01...
- Page 8 UPS harness. Arc-flash incident may occur when incorrectly mated. Install the adapter on each UPS cabinet battery harness. Connect the adapter to the UPS cabinet wiring harness (red–to–red and black–to–black). Figure 5. Wiring Harness Adapter Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01...
-
Page 9: Battery Upgrade Instructions
Cabinet *Battery Tray Wiring Connection Harness Only Connector Black Black Sleeving *Cabinet Harness Connection Only Verify the absence of DC voltage on the harness (use precautions when verifying the voltage readings) Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01... - Page 10 Slowly push the black sleeving over the cabinet harness Anderson connectors until centered Tie wrap each end of the sleeving Figure 8. Battery Wiring Adapter Harness — Sleeving Detail Wiring Adapter Harness Tie Wraps Cabinet Wiring Harness Connector Sleeving Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01...
- Page 11 Failure to do this could result in a serious arc- flash injury Utilizing one shelf at a time, attach the Wiring Harness Adapter to the left most battery string cables Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01...
- Page 12 Figure 10. Battery Wiring Adapter Connection to Battery Tray Cabling Verify battery voltage polarity at the battery fuses (Gen 1 & 2) and the UPS battery breaker (Gen 3, top side on the breaker). The measured voltage is around “+230vdc” Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01...
- Page 13 Battery Upgrade Instructions Figure 11. Eaton 93E 30 kVA UPS Fuse Location Detail Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01...
- Page 14 Battery Upgrade Instructions Figure 12. Eaton 93E 60 kVA UPS Fuse Location Detail Disconnect the new harness from the right most battery string cables and connect the second new harness to the left most battery string cables Verify battery voltage polarity at the battery fuses (Gen 1 & 2) and the UPS battery breaker (Gen 3)
- Page 15 Battery Upgrade Instructions Figure 13. Eaton 93E 30 kVA UPS — Battery Shelf Cabling Clean Up Leave some stress relief for installing the battery dead front panel Use tie wraps to help secure the battery harness Press the battery harness as close to the batteries and next to the battery shelf (the red mark on...
- Page 16 Battery Upgrade Instructions Figure 14. Eaton 93E 60 kVA UPS — Battery Shelf Cabling Clean Up Leave some stress relief for installing the battery dead front panel Repeat step “a” for the remaining battery shelves Press the battery harness as close to the batteries and next to the battery shelf (the red mark on...
- Page 17 Reinstall remaining dead front panels Refer to the Eaton 93E UPS Installation and Operations Manual instructions to return the UPS to normal and supporting the load Battery Upgrade Instructions for 93E (20–60 kVA)
- Page 18 P-16400096701 P-164000967 01...
