Fly Dragon LIGHT SKY E280 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
n
E-mail:
E280
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China
Please read these user manual carefully before use!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIGHT SKY E280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fly Dragon LIGHT SKY E280

Summary of Contents for Fly Dragon LIGHT SKY E280

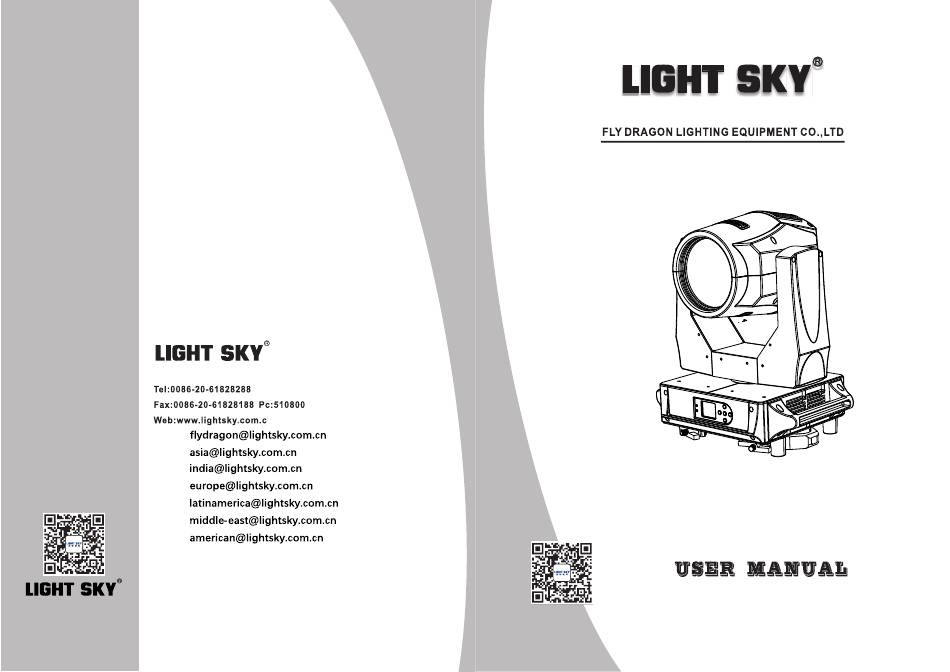

  • Page 1 E-mail: E280 Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China Please read these user manual carefully before use!

  • Page 2: Table Of Contents

    Contents 1. Safety information..........................2 2. Technical information.........................4 3. Attachment and body size.......................6 4. Installation and connecting......................7 5. Control panel............................9 6. Menu setting.............................10 7. Channel function..........................12 8. Circuit connecting diagram......................21 9. Cleaning and maintenances......................22 10.Troubeshooting..........................23 11.Duty exonerative and copyright protection..................24 Congratulations on choosing our company product! We thank you for your custom. ◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements.

  • Page 3: Safety Information

    ■This lighting fixture is for professional use only - it is not for household use. Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be prgperly hooked onto the fitting and secured to the framework.
  • Page 4 80℃ The maximun temperature that can be reached on the external surface of the fitting, in a thermally steady state,is 80℃。 Avoid contact bypersons and materials. Allow the fixture to cool for at least 15 minutes before handling. Light The light source in this fixture shall be replaced by the manufacturer or its service agent or similar qualification.

  • Page 5: Control And Programming

    Electrical specifications and connections CONTROL AND PROGRAMMING ● Power supply: Electronic auto-ranging ● Display: The display panel adopts a 1.77-inchTFTLCD screen ● Intelligent control：Display board can record device’s ● Input voltage range: 100-240V 50/60Hz； using time , showdevice’s temperature, channel data and ●...
  • Page 6 1 1 1 1 1 1 B l u e white distance,spot diameter and illumination diagram Standard 2°) 136666(12701) 35390(3289) 9211(856) 4021(374) 2216(206) 1358(126) 993(92) Distance m(ft in) 5(16'5") 10(32'10") 20(65'7") 30(98'5") 40(131'2") 50(151'5") 60(196'10") 2° diameter m(ft in) 0.17(7'') 0.35(1'2'') 0.70(2'4'') 1.1(3'7'')

  • Page 7: Attachment And Body Size

    power cord...

  • Page 8: Safety Rope

    Safety rope Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
  • Page 9 power in power end The N terminal is connected with the blue line. Ground The L terminal is connected with the brown line. The stage lighting power supply can not be more than 3pcs pre line, ● different types of lamps are connected as follows: connection to the eiectricty mains must be carried out by a qualified electrical ●...

  • Page 10: Control Panel

    DMX512 in signal end Up arrowhead: page up Display Down arrowhea d:page down Left arrowhea d:reduce Right arrowhe ad:increase Enter: OK func tion Exit:i n the choice screen...

  • Page 11: Menu Setting

    Main menu I menu II menu III menu ESC is -1, ENTER is +1, UP is + current channel number, DMX Address →1-512 DOWN is - current channel number Total time 000：00 Clear Total Times Light time 000：00 Clear Lamp Times Light source/display Temperature panel/sensor1/sensor2 temperature...
  • Page 12 Main menu I menu II menu III menu Screen Rot Forward/Reverse Mode1 On when there is a signal, off when there is no signal Mode2 Off when there is a signal, on when there is no signal Indicator Flashes when there is a signal, off when there is no Mode3 signal After a period of inactivity, it will return to the set...

  • Page 13: Channel Function

    CHANNEL FUNCTION(V1.0) C hann e l t a b l e (14CH） Percentage Function Note Channel Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42 15.3-16.5...
  • Page 14 Percentage Function Note Channel 12-15 4.7-5.9 Gobo3 16-19 6.3-7.5 Gobo4 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 32-35 12.5-13.7 Gobo8 36-39 14.1-15.3 Gobo9 40-43 15.7-16.9 Gobo10 44-47 17.3-18.4 Gobo11 48-51 18.8-20.0 Gobo12 52-55 20.4-21.6 Gobo13 56-59 22.0-23.1 Gobo14 60-73 23.5-28.6 Gobo1 Shake Slow-Fast Speed...
  • Page 15 Percentage Channel Function Note Fast→Slow,16 prism + 8 prism to free switch from fast to slow 176-215 69.0-84.3 Fast→Slow,From fast to slow,8 prism and 16 the prism interlock switch 216-255 84.7-100 0-255 0-100 Frost 0-255 0-100 Focus 0-255 0-100 0-255 0-100 Pan Fine 0-255...

  • Page 16: C Han N E L T A B Le

    C han n e l t a b le(16C H） Percentage Channel Function Note Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46...
  • Page 17 Percentage Channel Function Note 16-19 6.3-7.5 Gobo4 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 32-35 12.5-13.7 Gobo8 36-39 14.1-15.3 Gobo9 40-43 15.7-16.9 Gobo10 44-47 17.3-18.4 Gobo11 48-51 18.8-20.0 Gobo12 52-55 20.4-21.6 Gobo13 56-59 22.0-23.1 Gobo14 60-73 23.5-28.6 Gobo1 Shake Slow-Fast Speed 74-87 29.0-34.1 Gobo2 Shake Slow-Fast Speed...
  • Page 18 Percentage Function Note Channel 0-255 0-100 Frost 0-255 0-100 Focus 0-255 0-100 0-255 0-100 Pan Fine 0-255 0-100 TILT 0-255 0-100 TILT Fine 0-255 0-100 Unused Range Reset 0-25 Unused Range 26-76 Effects Reset 77-127 PAN/TITL Reset 128-255 Complete Reset Function 0-255 -17-...
  • Page 19 Ch a n n el table(1 6 C H P L U S） Percentage Channel Function Note Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42...
  • Page 20 Percentage Channel Function Note 16-19 6.3-7.5 Gobo4 20-23 7.8-9.0 Gobo5 24-27 9.4-10.6 Gobo6 28-31 11.0-12.2 Gobo7 32-35 12.5-13.7 Gobo8 36-39 14.1-15.3 Gobo9 40-43 15.7-16.9 Gobo10 44-47 17.3-18.4 Gobo11 48-51 18.8-20.0 Gobo12 52-55 20.4-21.6 Gobo13 56-59 22.0-23.1 Gobo14 60-69 23.5-27.1 Gobo1 Shake Slow-Fast Speed 70-79 27.5-31 Gobo2 Shake Slow-Fast Speed...
  • Page 21 Percentage Channel Function Note 136-175 53.3-68.6 Fast→Slow,8 prism + 16 prism to free switch from fast to slow 176-215 69.0-84.3 Fast→Slow,16 prism + 8 prism to free switch from fast to slow 216-255 84.7-100 Fast→Slow,From fast to slow,8 prism and 16 the prism interlock switch 0-255 0-100 Frost...

  • Page 22: Circuit Connecting Diagram

    -21-...

  • Page 23: Cleaning And Maintenances

    CLEANING AND MAINTENANCES ■1.In order to ensure the projector could work normally. It should be kept clean always . The lens should also be regularly cleaned to maintain an optimum light output. Do not use any type of solvent on lens. It will damage the projector. ■2.Suggestion: The continue usage of the light don't exceed 4 hours.

  • Page 24: Troubeshooting

    TROUBESHOOTING It is recommended some solution for some normal trouble shooting. Any inextricability problems should always be handling by the professional person. Disconnect the power supply before maintenance the light. ■ LED off ： 1.Please check if install the suitable voltage 2.Please check whether the led will reach the end of their life can explode;...

  • Page 25: Duty Exonerative And Copyright Protection

    -24-...
