Fly Dragon LIGHT SKY SUPER SCOPE PLUS User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SUPER SCOPE PLUS
n
E-mail:
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIGHT SKY SUPER SCOPE PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fly Dragon LIGHT SKY SUPER SCOPE PLUS

Summary of Contents for Fly Dragon LIGHT SKY SUPER SCOPE PLUS

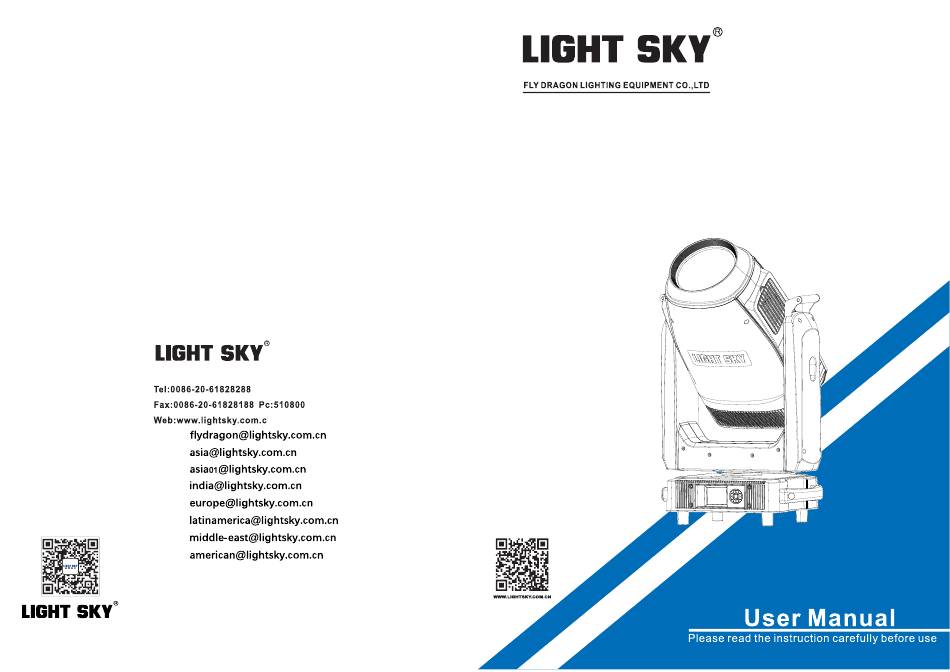

  • Page 1 SUPER SCOPE PLUS E-mail: Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China...

  • Page 2: Table Of Contents

    CONTENTS 1、Safety Instructions.........................2 2、Technical Specifications .......................5 2.1、Attachment And Size....................8 3、Color/pattern ..........................9 3.1、Replacing Rotating Gobos ..................10 4、Control Panel........................13 5、Connection and control.......................14 5.1、Power supply connection ..................14 5.2、DMX 512 Connection ....................15 6、How To Set The Unit ......................16 6.1、Main Function ......................16 6.2、Channel Setting ......................24 6.3、Address Setting ......................24 6.4、DMX 512 Configuration....................25 7、...

  • Page 3: 1、Safety Instructions

    1.Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this manual. The following symbols are used to identify important safety information on the product and in this manual: Important:...
  • Page 4 The unit must be installed in a location with adequate ventilation, at least 20cm from ► adjacent surfaces. Be sure that no ventilation slots is blocked, otherwise the unit will be overheated. ► Before operation, ensure that you are connecting this product to the proper voltage in ►...
  • Page 5 Do not operate this product if you see damage on the housing, shields, or cables. ► Have the damaged parts replaced by an authorized technician at once. Installation: The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid vibration and slipping off during operation.

  • Page 6: 2、Technical Specifications

    Technical Specifications OPTICS - Light source: 880W white LED module - Zoom range: 5.5° -52 ° - Optical lens: coated with high anti-reflection film, diameter 180mm - Color temperature: 6800 K - Color rendering index: RA≥71 / RA≥90 ( Cutting into high resolution digital filters - Total light output flux: 40800 L COLOR...
  • Page 7 - Electronic dimming, 0-100% linear dimming, uniform spot - Electronic strobe speed is 1-25 times/S - LED refresh frequency: 1000Hz ~ 25KHz CONTROL AND PROGRAMMING - Control channels: 43CH, 55CH - Protocol: Standard DMX512 protocol, RDM protocol, Art-Net - Data connection: three or five core signal input/output - RJ45 interface (optional) - Display: LCD screen SOFTWARE...
  • Page 8 OTHERS - IP rate : IP20 - Working Ambient : 0℃~ 40 ℃ ℃ Maximum temperature of lamp body surface: 80 - Maximum current of luminaire: 6.4A/220V; 12.8A/110V STANDARDS AND CERTIFICATION The product implementation standard: GB 7000.1-2015 GB7000. 217-2008 、 Approved certifications: CE RoHs The product complies with the following EU directives: Low Voltage Directive 2014/35/EU .

  • Page 9: Attachment And Size

    2.1.Attachment And Size Attachment contents-Fig.1 power cord Certificate of conformity Size-Fig.2...

  • Page 10: 3、Color/Pattern

    3.Color/pattern C -B CTO-A CTO-B Color plate Effect disc Drawing Number Part Number FG2370A C0700780025 FG1912C C0700780026 FG2371A C0700780027 FG2372A C0700780028 Rotation Gobo Size FG2373A C0700780029 FG2374A C0700780030 Rotating gobo wheelA FG2375A C0700780031 Drawing Number Part Number FG2376A C0700780032 FG2377A C0700780033 FG1901E C0700780034...

  • Page 11: Replacing Rotating Gobos

    3.1.Replacing Rotating Gobos 1.Use a screwdriver to unscrew the two screws at A to take out the pattern color module assembly; 2. Reverse the assembly, and use a screwdriver to unscrew the four screws at B to separate the pattern color module from the CMY module; -10-...
  • Page 12 3. Use a screwdriver from the front of the pattern module to unscrew the two screws of the magnetic induction board at C, and remove the magnetic induction board; then half loosen the screws on the three motors at D, move the motor and take off the belt; turn the pattern module back Come here, unscrew the four screws at E with a screwdriver, and you can take out the rotating gobo and fixed gobo assembly (as shown in Figure F, the front is the rotating gobo, and the back is the fixed gobo)
  • Page 13 6.When assembling the gobo, avoid touching the gobo directly with your hands, and as shown in I, align the notched part of the gobo with the depression of the driven wheel assembly (the coating surface of the gobo should face the light source); 7.

  • Page 14: 4、Control Panel

    4.Control Panel 1.Display: To show the various menus and the selected function 2.Button: OK confirmation key DOWN To the left To the right 3.Socket version power input: connect the power supply. 4.Power switch: To turn on/of f the power. 5.DMX inputloutput: Used for DMX512 connection, use 3/5 core XLR signal cable toconnect console and lamps,And input/output DMX signal.

  • Page 15: 5、Connection And Control

    5.Connection and control 5.1.Power supply connection N(White/Blue) L(Black/Brown) (Green/Yellow Green) POWER IN The ground wire is connected to the yellow-green wire The N terminal is connected with the blue line. The L terminal is connected with the brown line. Watertight seal ring Watertight seal ring - The bus connecting the power supply must be installed by a qualified professional technician.

  • Page 16: Dmx 512 Connection

    5.2.DMX 512 Connection 6.1.DMX 512Connection DMX512 in SIGNAL END DMX-input DMX - output - Shield 1 - Shield - Signal (-) 2 - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected 1.

  • Page 17: 6、How To Set The Unit

    6.How To Set The Unit 6.1.Main Function ● SETTINGS Enter the MENU mode, select the setting function, press the OK button to confirm, use the up/down button to select: address code, channel mode, input mode. Address code: Select the DMX address, press the OK button to confirm, and the current DMX address will be displayed on the display.
  • Page 18 Version Information: Select the version information, press the OK button to confirm, and use the up and down keys to view the PCB version of the device: display board, XY board, CMY module, pattern module, cutting board 1, cutting board 2, scaling module, light source fan driver board, bottom fan board, etc. information.
  • Page 19 100% 100% 100% 100% 100% 100% 100% 100% DMX Value（0-255） DMX Value（0-255） DMX Value（0-255） DMX Value（0-255） LED frequency setting: Select the Led frequency setting, press the OK button to confirm, you can use the up and down keys to select: 1000 Hz, 3600 Hz, 7200 Hz, 25000 Hz, press the OK key to confirm, and then press the left/right button to return to the previous menu.
  • Page 20 ● Test equipment Enter the MENU mode, select the Test Equipment function, press the middle square button to confirm, use the up/down button to select: All Test, XY Test, Head Test. All tests: Select all tests, press the OK button to confirm, each function of the whole machine will start automatic testing, then press the left/right button to return to the previous menu.
  • Page 21 ● FACTORY SETTINGS Select factory settings, press the up and down keys to select, press the OK button to confirm, you can choose: factory reset, clear time, software upgrade, power adjustment, power selection, Logo selection and other functions, note that this function is factory settings Pan: Enter the initial setting menu, use the up and down keys to select the horizontal channel, use the left and right keys to adjust the DMX value, the adjustment range is 0-255, the default initial position...
  • Page 22 Pattern 1: Enter the initial setting menu, use the up and down keys to select pattern 1 channel, use the left and right keys to adjust the DMX value, the adjustment range is 0-255, the default initial position is 128, perform calibration, press the OK button to save and exit. Pattern 1 rotation: Enter the initial setting menu, use the up and down keys to select the pattern 1 rotation channel, use the left and right keys to adjust the DMX value, the adjustment range is 0-255, the default initial...
  • Page 23 Cut 3A: Enter the initial setting menu, use the up and down keys to select the cutting 3A channel, use the left and right keys to adjust the DMX value, the adjustment range is 0-255, the default initial position is 128, perform calibration, press the OK button to save and exit. Cut 3B: Enter the initial setting menu, use the up and down keys to select the cutting 3B channel, use the left and right keys to adjust the DMX value, the adjustment range is 0-255, the default initial position...
  • Page 24 Atomization 2: Enter the initial setting menu, use the up and down keys to select the atomization channel 2, use the left and right keys to adjust the DMX value, the adjustment range is 0-255, the default initial position is 128, perform calibration, press the OK button to save and exit. Aperture: Enter the initial setting menu, use the up and down keys to select the aperture channel, use the left and right keys to adjust the DMX value, the adjustment range is 0-255, the default initial position is...
  • Page 25 Main menu I menu II menu III menu Ⅳ menu Address → 1-512 Standard（43） DMX SETTING → Channel mode → Extended（55） Input mode → DMX 512 Power on time 0 - 99999H Fixture times → LED on time 0 - 99999H All time 0 - 99999H LED TEMP...
  • Page 26 Main menu I menu II menu III menu Ⅳ menu 1.Pan 0 - 255 Manual Control → 2.Pan fine → 0 - 255 3..0 - 255 Total reset Pan/Tilt reset Manual → Gobo reset Reset → Color reset Profile reset Focus reset Effect reset Test all...

  • Page 27: Channel Setting

    6.2 . Channel Setting Press the OK button to confirm, use the up/down buttons to select the channel mode: standard mode (43CH), extended mode (55CH), press the OK button to save.Press the left/right button to return to the previous menu. 6.3 .

  • Page 28: Dmx 512 Configuration

    6. DMX 512 Configuration 55 Channel 43 Channel Function Note 0--255 Pan movement/positioning Pan fine 0--255 Fine Pan positioning TILT 0--255 Tilt movement/positioning TILT fine 0--255 Fine Tilt movement/positioning PAN TILT Speed 0--255 Pan Tilt movement Speed From Fast To Slow Functions 0--10 NO function...
  • Page 29 55 Channel 43 Channel Function Note COLOR6 167--179 Forwards Color rotation from slow to fast 180--214 Backwards Color rotation from fast to slow 215--249 Random Color 250--255 Gobo Open 0--9 GOBO1 10--19 GOBO2 20--29 GOBO3 30--39 GOBO4 40--49 GOBO5 50--59 GOBO6 60--69 GOBO7...
  • Page 30 55 Channel 43 Channel Function Note Blade 1 A Fine Fine Blade positioning 0--255 Blade 1 B Blade Out→In 0--255 Blade 1 B Fine Fine Blade positioning 0--255 Blade 2 A Blade Out→In 0--255 Blade 2A Fine Fine Blade positioning 0--255 Blade 2 B Blade Out→In...
  • Page 31 55 Channel 43 Channel Function Note Prism Prism Out 0--10 Prism 1 11--100 Prism 2 101--190 Prism 1&2 191--255 Prism Rotation No Function 1--63 0--360° 64--127 Forwards rotation from fast to slow 128--191 Backwards rotation from slow to fast 192--207 from slow to fast 90°Swing 208--223 from slow to fast 180°Swing...
  • Page 32 55 Channel 43 Channel Function Note Autofocus Adjustment 0--255 Auto Focus Fine Strobe 0--9 No Function 10--49 Closing pulses in sequences from fast to slow 50--89 Opening pulses in sequences from fast to slow 90--119 No Function 120--179 Random strobe,slow → fast 180--255 Strobe,slow →...

  • Page 33: 7、 Electrical Connection Diagram

    7.Electrical Connection Diagram -32-...

  • Page 34: 8、 Error Information

    8.Error Information Error messages will be displayed under the Fixture state status menu when the fixture fails and they will not disappear until the fixture is repaired. 1. Memory IC: Check whether the Memory IC is damaged. Check whether the related circuit of the Memory IC is damaged.
  • Page 35 6. Tilt: Check whether there are other objects in the Y-axis running range interfering with its running and reset. Check whether the connecting wire connecting the Y-axis magnetic induction board is in poor contact or is disconnected. Check the Y-axis magnetic induction plate for looseness, falling off or damage. Check whether the related circuit of the Y-axis motor driver board is damaged.
  • Page 36 6. Tilt: Check whether there are other objects in the Y-axis running range interfering with its running and reset. Check whether the connecting wire connecting the Y-axis magnetic induction board is in poor contact or is disconnected. Check the Y-axis magnetic induction plate for looseness, falling off or damage. Check whether the related circuit of the Y-axis motor driver board is damaged.
  • Page 37 9. Yellow: Check whether there are other objects in the operation range of the Y color film interfering with its operation and reset. Check whether the connecting wire connecting the Y-color chip magnetic induction board is in poor contact or disconnected. Check the Y-chip magnets for looseness, falling off, or damage.
  • Page 38 12. Pattern 1: Check whether there are other objects in the pattern 1 revolution range that interfere with its operation and reset Check whether the connecting wires connected to the magnetic sensor board of the pattern 1 male wheel are in poor contact or disconnected Check whether the pattern 1 revolution magnet is loose, falling off or damaged Check whether the pattern 1 revolution magnetic induction plate is loose, falling off or damaged Check whether the circuit related to the pattern 1 revolution motor drive board is damaged...
  • Page 39 15. Pattern 2 rotation: Check whether there are other items in the range of the pattern 2 self-rotating gear interfering with its operation and reset Check whether the connecting wires of the pattern 2 self-rotating gear and the magnetic induction board are in poor contact or disconnected Check if the gobo self-rotating gear magnet is loose, falling off or damaged Check whether the pattern 2 self-rotating gear and the magnetic induction plate are loose, falling...
  • Page 40 18. Prism rotation Check whether there are other items in the operating range of the prism self-rotating gear that interfere with its operation and reset Check whether the connection wires of the prism self-rotating gear and the magnetic induction board are in poor contact or disconnected Check whether the prism rotation gear magnet is loose, falling off or damaged Check whether the prism self-rotating gear and the magnetic induction plate are loose, falling off or damaged...
  • Page 41 21. Focusing: Check whether there are other objects in the operating range of the focusing lens that interfere with its operation and reset Check whether the connecting wires of the focusing lens and the magnetic sensor board are in poor contact or disconnected Check if the focusing lens magnet is loose, falling off or damaged Check whether the focusing lens or the magnetic sensor board is loose, falling off or damaged Check whether the related circuits of the focusing lens and the motor drive board are damaged...

  • Page 42: 10、Fixture Cleaning

    10.Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust, dirt and smoke-fluid residues building up on or within the fixture. The cleaning frequency depends on the application environment.
