Summary of Contents for CTC Union FRM220-10G-3R

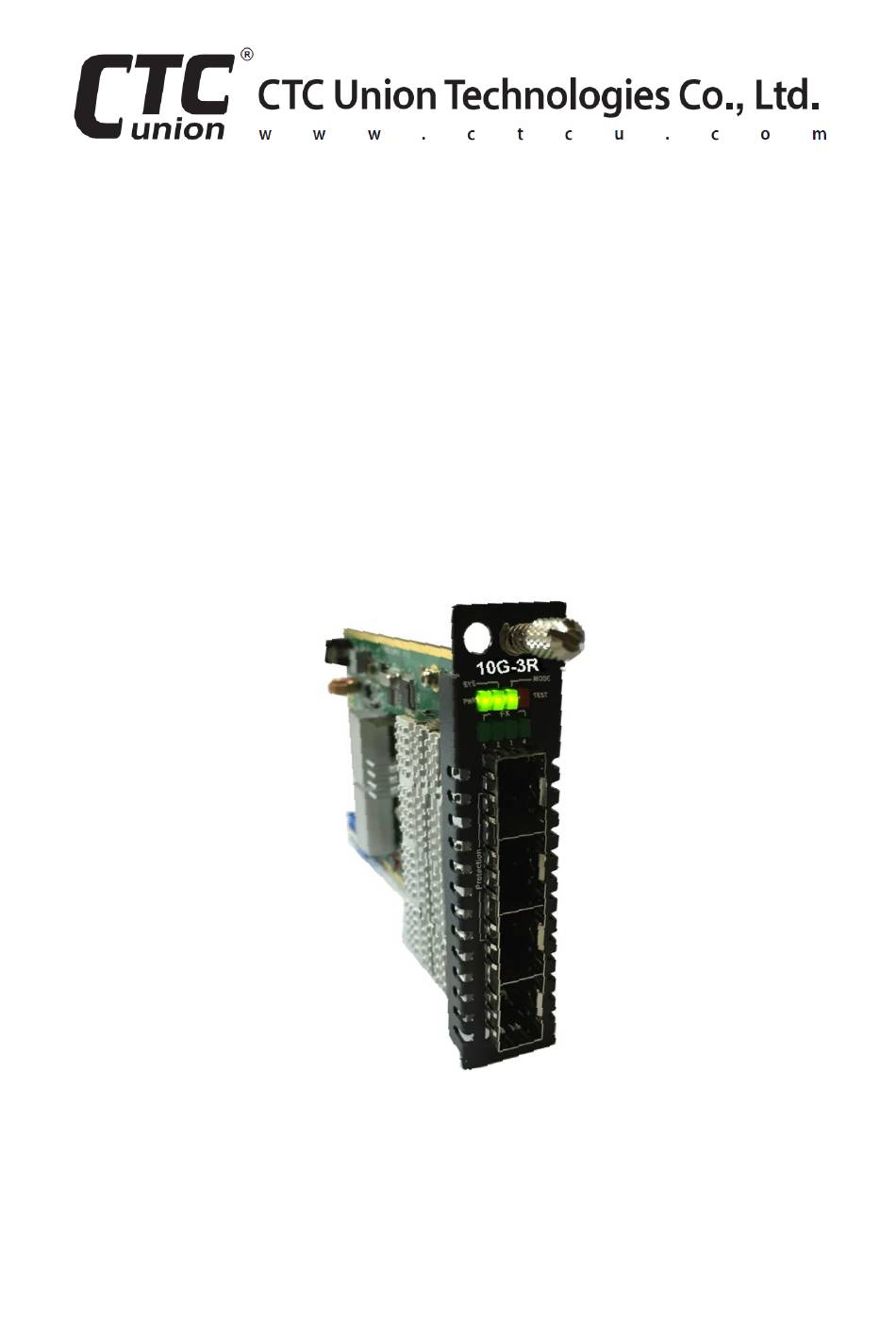

- Page 1 Quick Installation Guide FRM220-10G-3R 10G 3R Transponder sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2024 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Features ..................5 Specifications ................6 Management Features ..............6 Panel ..................... 7 Installation ..................7 LED Indicators ................8 DIP Switch..................8 DIP S PCB ................... 8 WITCH ON & D ............9 RANSMISSION ROTOCOL &... -
Page 5: Introduction
Introduction The FRM220-10G-3R is a multi-rate, up to 10G 3R optical regeneration device. The "3R" consists of Re-amplification, Re-shaping and Re-timing. The transponder card converts a data signal to the correct wavelength for transmission on a specific channel by supporting SFP+ optics on both line side and client side interfaces. -
Page 6: Specifications
FX1 LB, FX2 LB, FX3 LB, FX4 LB Management Features The FRM220-10G-3R has an on-board 8 pole DIP Switch which can be used to configure the device for stand-alone operation when non- managed. When placed in a stand-alone chassis with DB9 console port, these devices also support a text based serial terminal with an easy to use menu system for configuration. -
Page 7: Panel
This converter card can be placed in 1-slot CH01, CH01M w/console, 2- slot CH02M w/console, CH02-NMC with NMC or the full 20-slot CH20 chassis. FRM220-CH20 CH02-NMC Chassis or CH01 (CH01M) CH02M Chassis AC, DC, 2AC, 2DC, or AD AC, DC, 2AC, 2DC, or AD Figure 2. Slide-in Card mounting of FRM220-10G-3R... -
Page 8: Led Indicators
LED Indicators Color State Status Power on Flash Green (1 sec On/ Device is disabled 1 sec Off) No power Normal Green Flash Starting firmware upgrade System fail Protection Mode MODE Green Dual Channel Mode Loopback Test Mode TEST Normal CDR SYNC Flash (0.5 sec On/... -
Page 9: Transmission Protocol Mode & Date Rate
Transmission Protocol Mode & Date Rate DIP Switch Pins Transmission Data Rate Protocol Mode 10GE Ethernet 2500Base-X OC192/STM64 OC48/STM16 SONET/SDH OC24 OC12/STM4 Fiber Channel CRPI OBSAI 10GE OTU2e 10GE OTU1e STM64 OTU2 STM16 OTU1 10GFC OTU2 10GE ODU2e 10GE ODU1e STM64 ODU2 STM16 ODU1 HD-SDI... -
Page 10: Working Mode & Function Setting
Working Mode & Function Setting DIP Switch Pins Function Working Mode Setting Protection Auto-Revert Mode Non-Revert Dual Channel LFP Disable Mode LFP Enable Note: All of these settings are ignored if the card is placed in the FRM220-CH20 with NMC/SNMP management. The card will follow the settings done via the chassis management. -
Page 11: Console Management
Connect the serial cable to the CH01M or CH02M's DB9. Run the terminal emulation program. When prompted with Password, enter “admin”. Then, press [Enter] to display the "Main Menu" screen. The following is an example. **************************************** CTC UNION TECHNOLOGIES CO.,LTD FRM220-10G-3R **************************************** Ver:[1.100-1.106-0.000-0.000] [ CH-02M S2]... -
Page 12: Operation
Operation Select any of the menu items by keying in the menu item number or letter. Use the [ESC] to return to a previous menu. Any setting is immediately applied to the transponder's circuitry. After all of the parameter settings have been selected, press "s" from the main menu to save the parameters in non-volatile RAM (NVR). -
Page 13: Working Mode: Dual Channel
Working Mode: Dual Channel In the CWDM/DWDM (Dual Channel) application, the 3R transponder acts as a fiber-to-fiber repeater and optical frequency converter between the client side equipment and the Optical Multiplexer/De-multiplexer. You can set the transponder to the protocol's data rate either by local DIP or through management. 10G-3R Mux/DeMux SFP 2 Client... - Page 14 Auto-revert: When the Primary path is down, the working path will switch to the Secondary path. Once the Primary link is back, the working path will switch back to the Primary path. Non-revert: When the Primary path is down, the working path will switch to the Secondary path.
-
Page 15: Auto Laser Shutdown
Loss Propagation or Link Fault Pass-through (LFP) is a method of forwarding a link loss from one media to the other over the transponder. LFP function of FRM220-10G-3R can support fault application of fiber interfaces under both Dual Channel and Protection mode. -
Page 16: Digital Diagnostics In Sfp
8472. This feature is also known as digital optical monitoring (DOM) and gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, etc. **************************************** CTC UNION TECHNOLOGIES CO.,LTD FRM220-10G-3R **************************************** Ver:[1.000-1.000-0.000-0.000] [CH-01M <<... -
Page 17: Loopback Testing (Lbt)
Loopback Testing (LBT) The loop back capability of the FRM220-10G-3R is useful for debugging a dysfunctional link, or when commissioning a site. In loopback mode, the signal is routed into the CDR circuitry and then routed back to the signal source. For example, in the following diagram, when the loopback function of SFP 1 is enabled, received traffic from the external testing equipment will be routed back the source device. - Page 18 2. Send Firmware file via Xmodem and select the Firmware file that you want to upload. 3. Start upgrading new Firmware image. 4. Check the Firmware version after completing the Firmware upgrade process. **************************************** CTC UNION TECHNOLOGIES CO.,LTD FRM220-10G-3R **************************************** Ver:[1.000-0.001-0.000-0.000] [CH-01M...
-
Page 19: Nmc Firmware Upgrading
NMC Firmware Upgrading The FRM220-10G-3R card can also be firmware upgraded when it is placed in the FRM220 with NMC management card. The user may use a local console connection to the NMC, a remote Telnet (IP) connection, or a Web based (HTTP) connection with any available browser. The NMC communicates to all cards through a serial RS485 control bus. -
Page 20: Applications
DIP or through management. The rate setting is the only setting required. CWDM Transponder The FRM220-10G-3R functions primarily as a repeater or a media converter. As a repeater for long-haul applications, the signal is fully regenerated at the trunk. Clock Data Recovery (CDR) helps in reshaping, retiming, and regenerating (3R) the output signal at a number of pre- assigned frequencies or protocols. - Page 21 Version Date Description 2024/9/27 New format & rearrange contents Add 1.1 protection...
