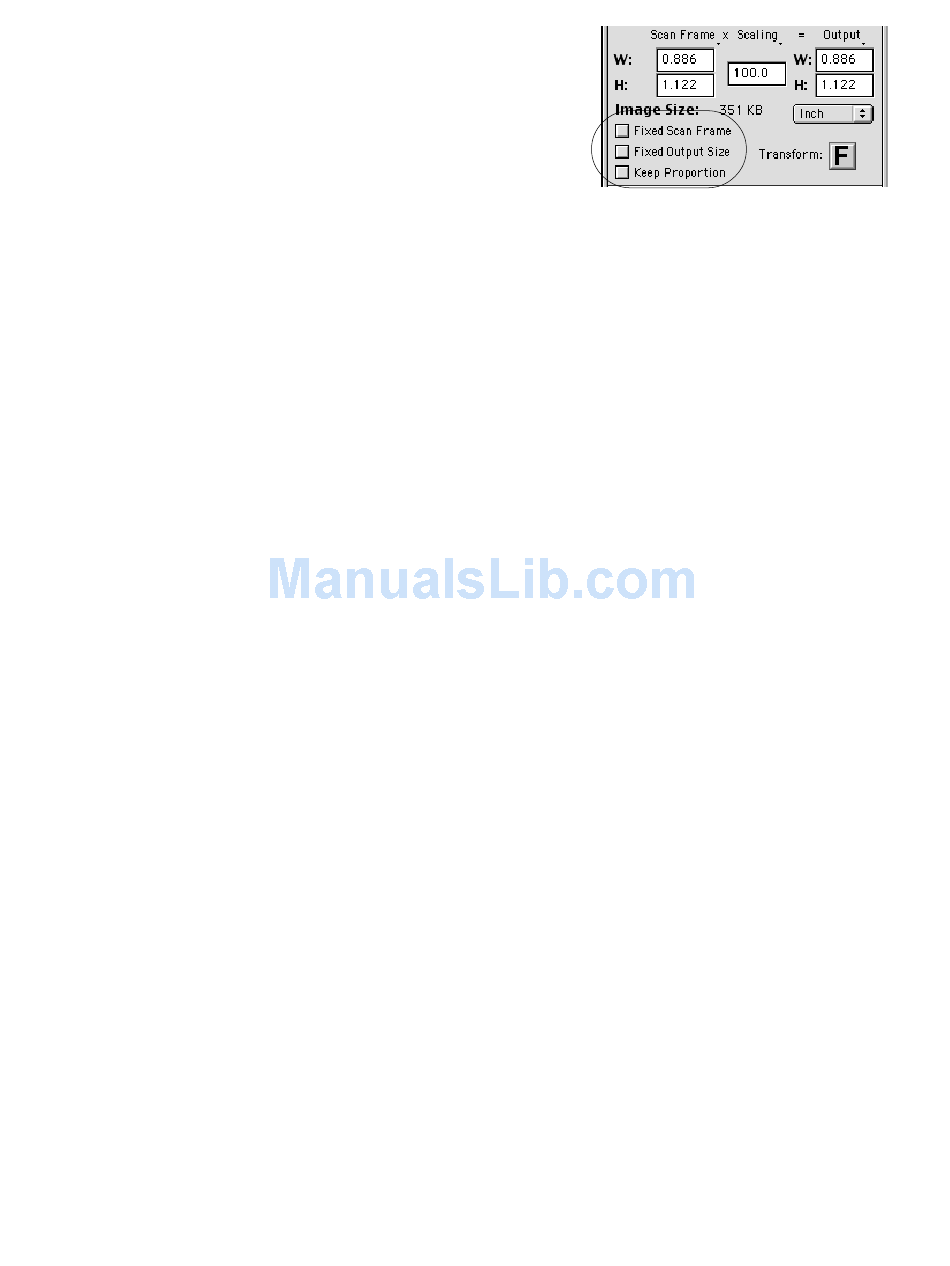

Scan Frame options

The Scan Frame options include Fixed
Scan Frame, Fixed Output Size, and Keep
Proportion.

Fixed Scan Frame

This option lets you lock in the settings of your scan frame, so that the width and
height dimensions of the frame are always preserved no matter where you move
the frame in your preview image.
If you know the exact input size for your image, or if you wish to "lock" the
settings of your scan frame to a particular size, enter the Scan Frame width and
height values first, then check Fixed Scan Frame. Your scan frame will be "fixed"
at those values, so even if you move the scan frame around the preview image,
the dimensions of the frame itself will remain unchanged.

Fixed Output Size

When the Fixed Output Size option is checked, the values specified for output
width and height remain unchanged. If any of the input values are changed, the
scaling will be adjusted automatically to preserve the output dimensions
correctly.
If you know the exact output size for your image, enter the output width and
height values first, then check Fixed Output Size. The image will then be scanned
and output at the values you specify.

Keep Proportion

When the Keep Proportion option is checked, the width and height values of the
image are kept in proportion regardless of changes made to either setting. This
preserves the aspect ratio of the image.
This option is automatically checked when either "Fixed Scan Frame" or "Fixed
Output Size" is selected.
NOTES : : : : :
• When none of the Scan Frame options are checked, all five dimension edit boxes are
•
•
62 Microtek ScanWizard Pro TX for Mac & PC
enabled; i.e., you are allowed to edit or enter values into any of the boxes.
The Fixed Scan Frame Fixed Scan Frame Fixed Scan Frame Fixed Scan Frame and Fixed Output Size Fixed Scan Frame
one of the options can be checked at a time; checking one option will automatically
uncheck the other.
When an illegal value is entered (e.g., the input width exceeds the scan frame size),
the value will appear in red as a flag or warning indicating an out-of-range value.
Fixed Output Size Fixed Output Size Fixed Output Size options are mutually exclusive. Only Fixed Output Size
