Section A - Mount IQ System Controller 3 INT
Step 4:
Mount the IQ System Controller 3 INT
WARNING: Risk of electric shock. To maintain the warranty, do not modify the dead front other than to remove or replace filler
plates as needed.
Please note the following:

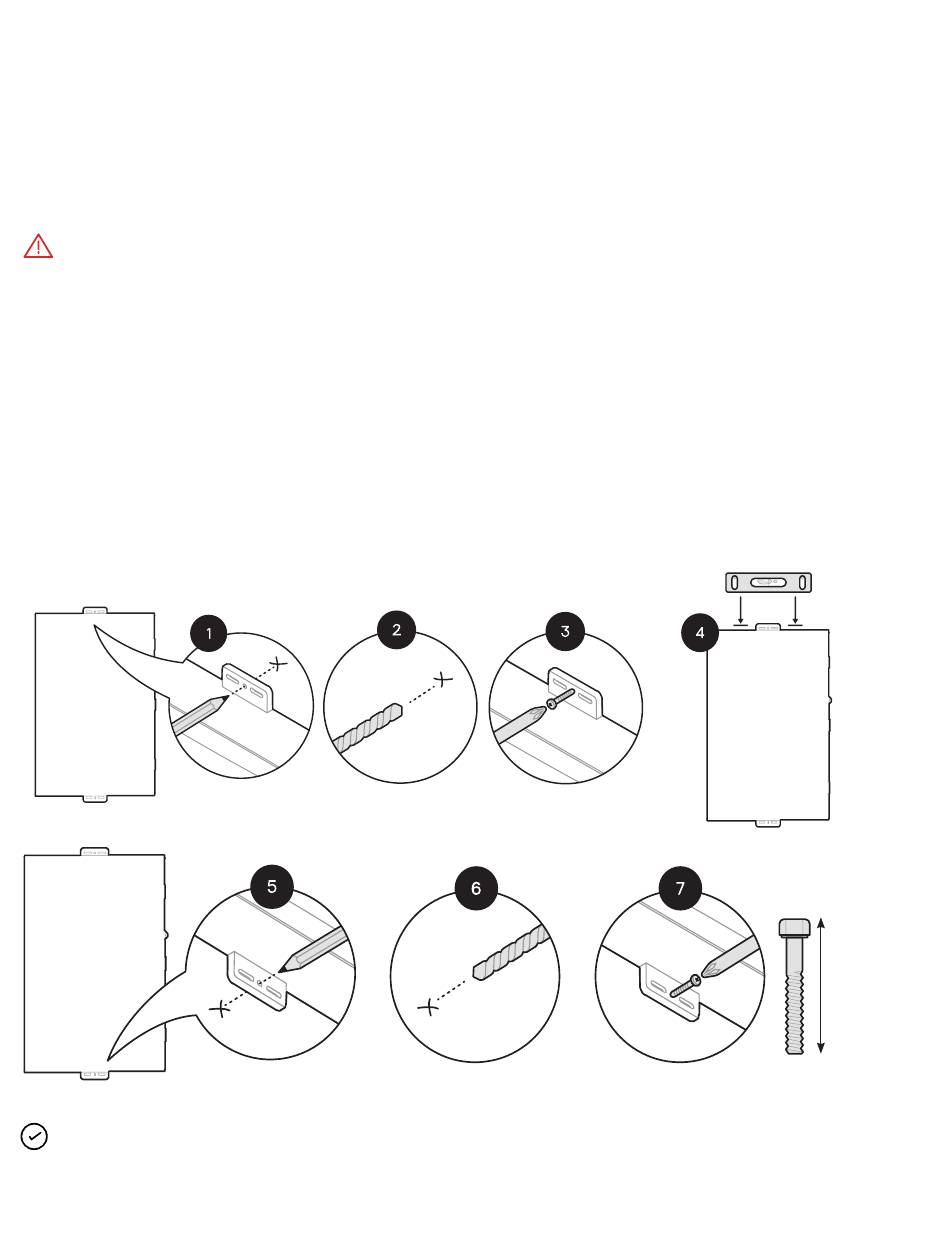

• When mounting to a timber stud wall, place the IQ System Controller 3 INT on the wall so that the mounting holes at the middle of the
mounting tabs are aligned with the centre of the stud. Mark the top centre hole for predrilling and keep IQ System Controller 3 INT
aside safely.
• Drill holes in the wall.
• Use washers and suitable fasteners to mount the system control on the wall. Use a level gauge to horizontally align the
IQ System Controller 3 INT enclosure.
NOTE: Use a drill bit extender for better access to mounting
holes during installation.
IQ System Controller 3 INT quick install guide
Ensure proper
alignment using a
level gauge
M6
80 mm
recommended
(depending on
wall thickness)
