Section A - Mount IQ System Controller 3 INT
Step 2:

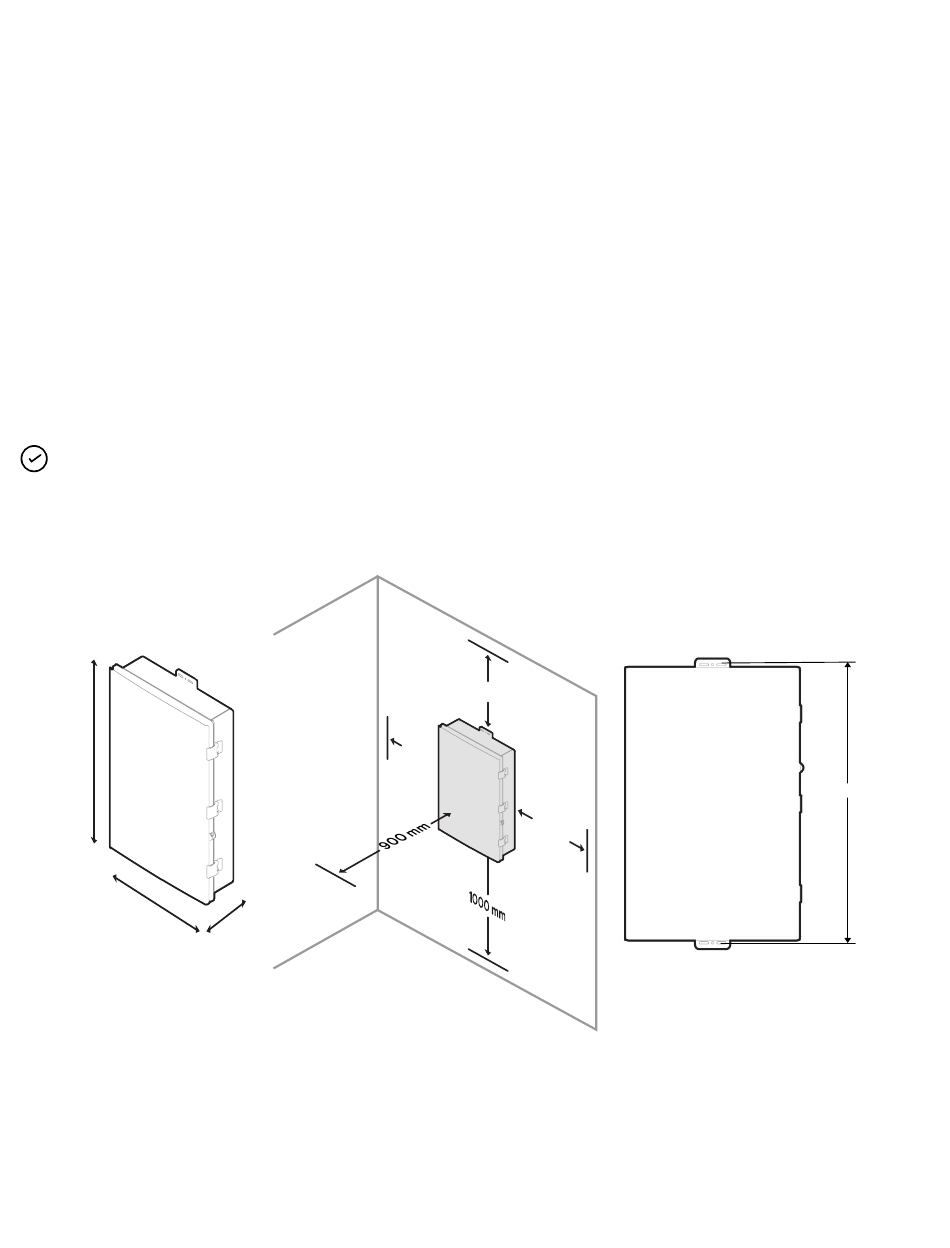

Minimum clearance
This product must be installed with clearances, as shown in the figure.
Follow all local standards and regulations related to mounting an
electrical distribution panel.
If using side power cable/Ethernet cable entry, pre-drill conduit holes before installing.
NOTE: Clearances indicated are after the installation.
1 5 0
m m
7 6 0
m m
1 5 0
m m
773 mm
1 5 0
m m
5 0 0
m m
m m
1 5 8
*The minimum clearance to be maintained in front of the IQ System Controller is 600 mm.
IQ System Controller 3 INT quick install guide
