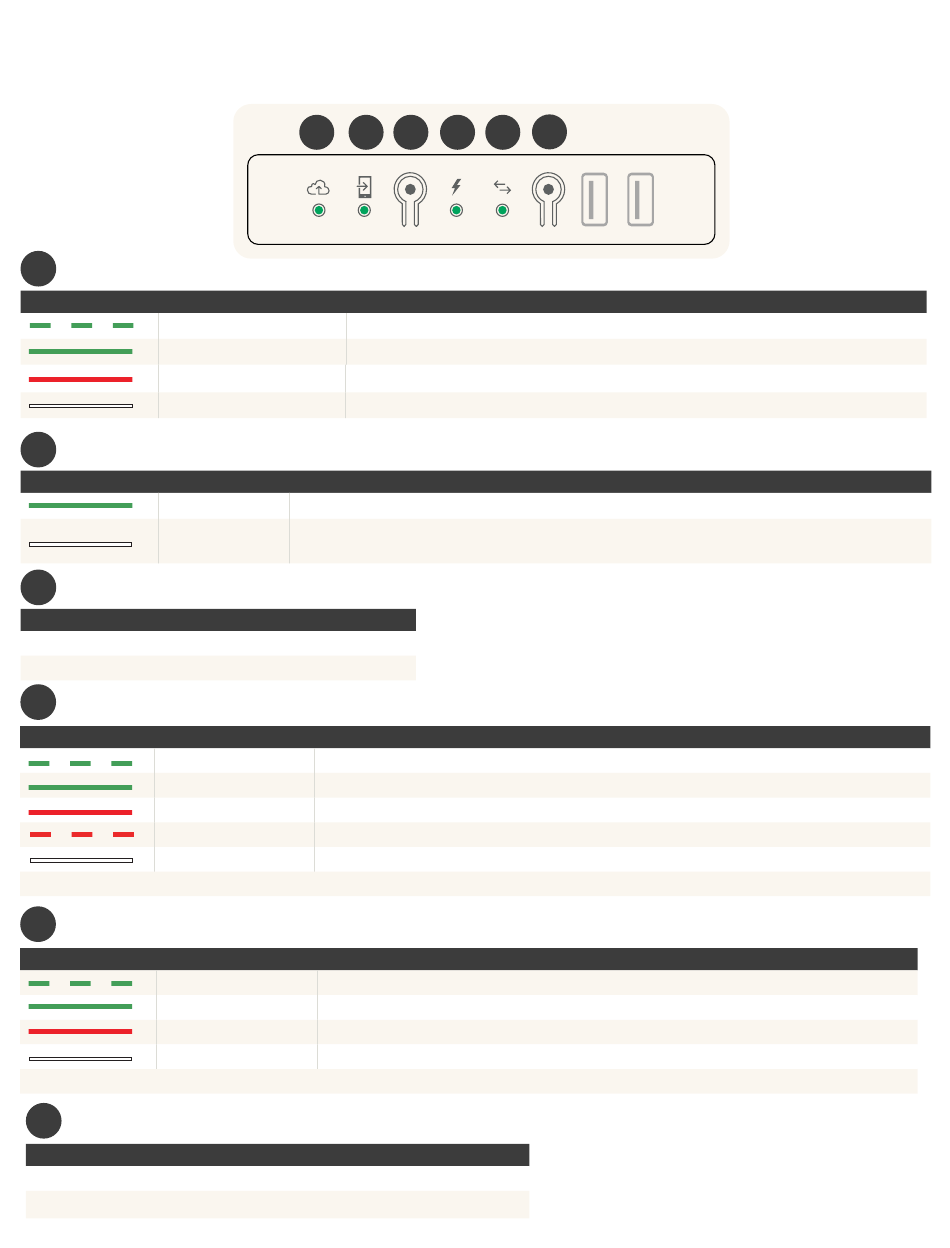

IQ Gateway LEDs and buttons

1 NETWORK COMMUNICATION LED
L E D C O L O U R L E D S TAT U S
Flashing green
Green
Red
Off
2 AP MODE LED
L E D C O L O U R L E D S TAT U S
Green
Off
3 AP MODE BUTTON
E V E N T
To be used only by the installer to configure the system.
Press to activate AP mode.
4
POWER PRODUCTION LED
L E D C O L O U R L E D S TAT U S
Flashing green
Green
Red
Flashing red
Off
Usually red at dawn/dusk, off at night, and flashing red after IQ Gateway restarts.
5 DEVICE COMMUNICATION LED
L E D C O L O U R L E D S TAT U S
Flashing green
Green
Red
Off
Usually red at dawn and dusk, off at night.
6 DEVICE SCAN BUTTON
E V E N T
To be used only by the installer to configure the system.
Press to start/stop a 15-minute scan for devices over the power line.
