HighSecLabs SK21PH-4 Quick Installation Manual

Quick Installation Guide
2/4/8 Ports High Security DP/HDMI KVM Switches
Introduction
Thank you for purchasing this HSL Secure KVM Switch. This KVM Switch is designed for use in secure defense and intelligence environments
across wide security gaps.
Objectives
• This guide includes instructions for installing and basic operation of HSL's DP/HDMI Secure KVM Switch SK21PH-4, SK41PH/PHU-4,
SK81PH-4, DK22PH-4, DK42PH/PHU-4, DK82PH-4 devices.
• For further assistance please refer to HSL website: http://www.highseclabs.com

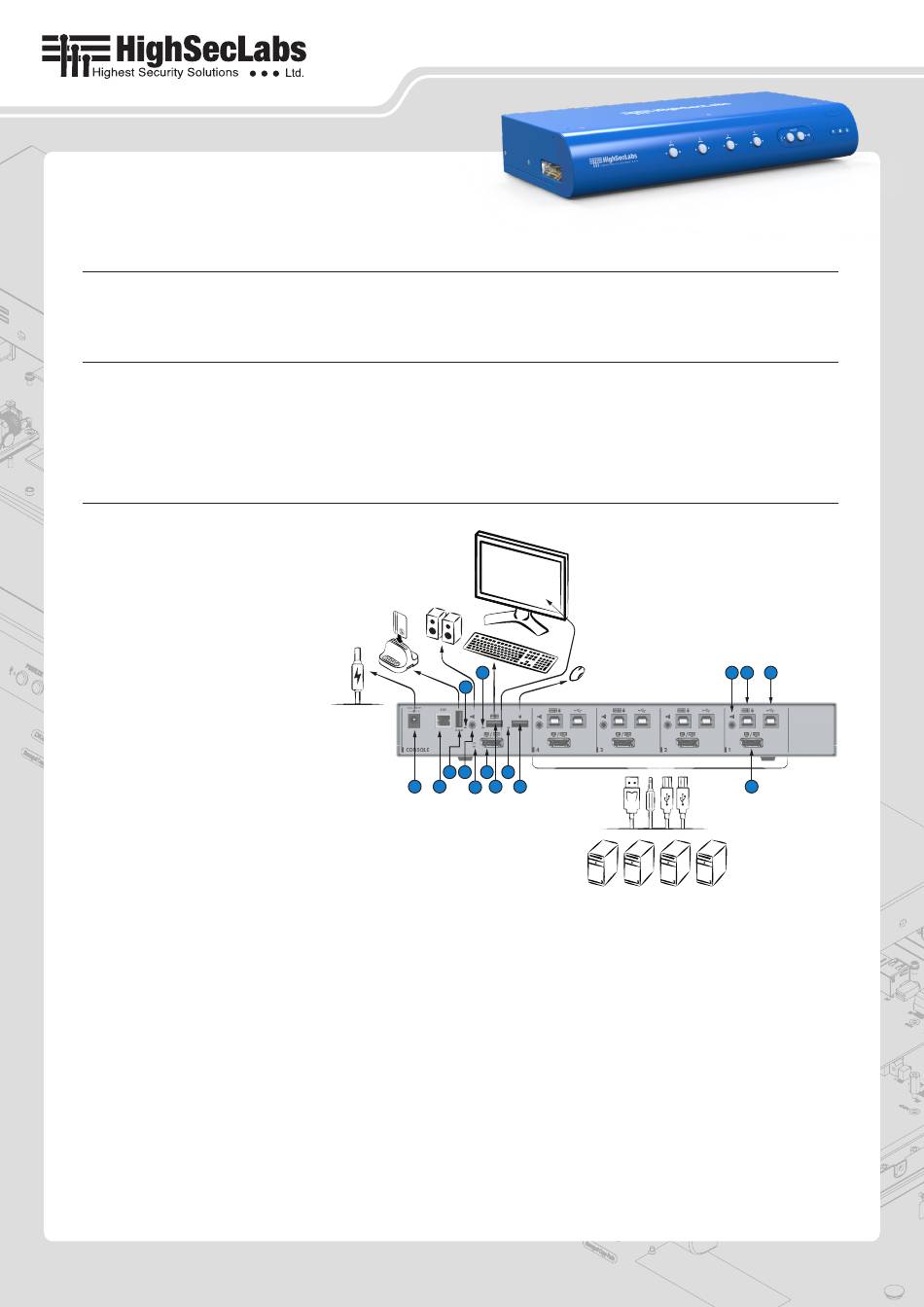

• The following diagram references the SX42PHU-4 device but it is applicable to devices covered in this manual.
SK41PHU-4 Model is shown
Rear Panel Index:
1. PC fUSB input
2. PC Keyboard/Mouse input
3. Analog audio input
4. PC Video DP/HDMI input
5. Console Mouse
6. HID - Console Mouse LED
7. Console Keyboard
8. DP/HDMI Output
9. HID - Console Keyboard LED
10. Output Display LED
11. Analog audio output
12. fUSB output LED
13. fUSB output
14. Remote Desktop Control port (for AFP)
15. DC in
Installation Precautions:
Do not connect this product to computing
devices that:
• Are TEMPEST computers
• Include telecommunication equipment
• Include frame grabber video cards
• Include special audio processing cards.
WARNING: Peripherals' Warning - For security
reasons, this product does not support wireless
keyboards. It is recommended not to connect a
microphone or headset to the audio output port.
NOTE: In order to comply with the product's
Common Criteria evaluation and to prevent
unauthorized administrative access to the
product, the default administrator username
and password must be changed prior to first
product use.
© 2019 High Sec Labs Ltd. All rights reserved. All trade names are trademarks or registered trademarks of respective manufacturers listed.
Specifications are subjected to change without prior notice. Images for demonstration purposes only. Patents: www.highseclabs.com/patents/.
SK21PH-4 • DK22PH-4 • SK41PH/PHU-4 • DK42PH/PHU-4 • SK81PH-4 • DK82PH-4
9
12
13 11 8 6
15 14 10 7 5
Installation:
• Verify that all peripherals and
computers are turned OFF prior to
connecting them to the product.
• Connect the computers and
peripherals to the HSL KVM as shown in
the above diagram.
• It is possible to connect an HSL AFP
(remote control) to the RDC port of
these devices. Please refer to the AFP
datasheet on how to connect it.
• Power ON the monitors and the PCs:
Make sure that the monitor is turned
ON prior to powering ON the KVM.
• Power ON the system: Power ON the
KVM by plugging it to the AC wall
outlet. By default, after product power-
up, the active channel will be computer
#1, indicated by the applicable front
panel push button LED lit.
| QUICK INSTALLATION GUIDE
3 2 1
4
NOTE : HSL devices covered by this manual
include a special DP/HDMI connector, enabling
the user to use the product with both video
formats as input and output.
NOTE : In models supporting fUSB, it is possible
to connect additional USB devices and use them
on the host PCs. By default, authentication
devices such as CAC readers, smart card readers,
and biometric readers are enabled. It is possible
to enable other USB devices. Please refer to
HSL's administrator manual on how to enable
additional USB devices.
HDC19959 Rev 1.0
