Installing The Discharge Tubes - Toro E-Z Vac 79330 Operator's Manual

7
Installing the Discharge
Tubes
Parts needed for this procedure:
1 Upper tube
2 Screw (1/4 x 3/4 inches)
2
Washer (1/4 inch)
2 Locknut (1/4 inch)
1 Lower tube
Procedure
Important:
Make sure that the mower deck is in
the lowest height-of-cut position before installing
the discharge tubes.
Note:
Remember to install the grass deflector when
you remove the bagger from the mower.
1. Disengage the PTO and set the parking brake.
2. Stop the engine, remove the key, and wait
for all moving parts to stop before leaving the
operating position.
3. Lower the mower deck to the lowest height-of-cut
position.
4. Remove the bags for viewing the tube under
the hood.
5. Lower and latch the hood.
6. Use both latches to attach the lower tube to the
blower assembly
Note:
Ensure the notch in the lower tube is at
the bottom when installed
(Figure 20).
(Figure 22).

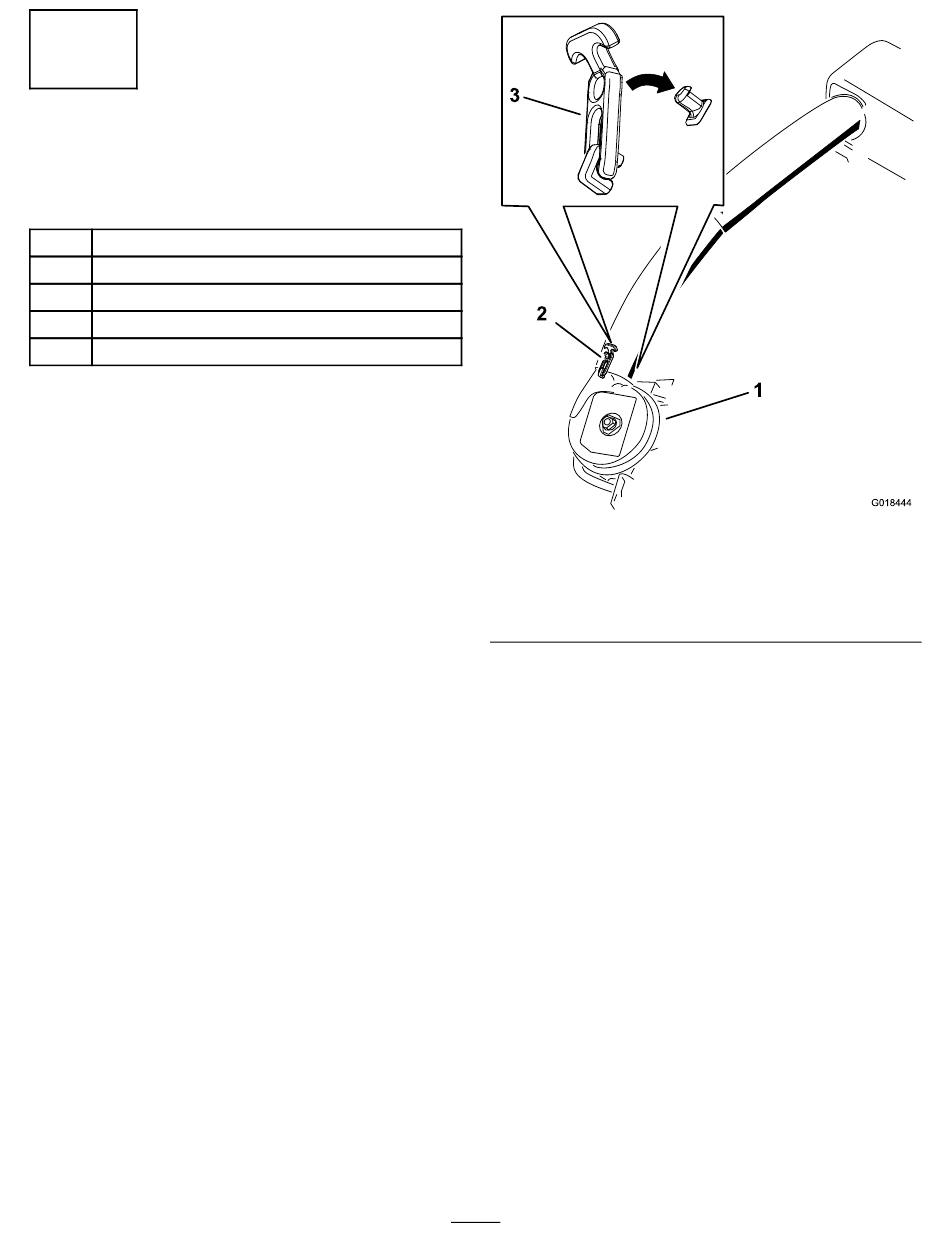

Lower Discharge Tube Latch
1. Blower assembly
2. Upper latch
7. Make note of where the two bolts in the upper
tube are installed.
Note:
The hole near the molded arrowheads
will not be used.
8. Remove the two bolts in the lower end of the
upper tube. Use the 2 holes as a template for
the lower tube. Retain the hardware.
9. Insert the upper end (no holes) of the upper tube
through the tube seal in the hood by pushing
the tube in until the tube contacts the inside of
the hood,
10. Pull the upper tube out slightly so that the seal
extends outward and over the lower tube
21).
14
Figure 20
3. Latch
g018444
(Figure
