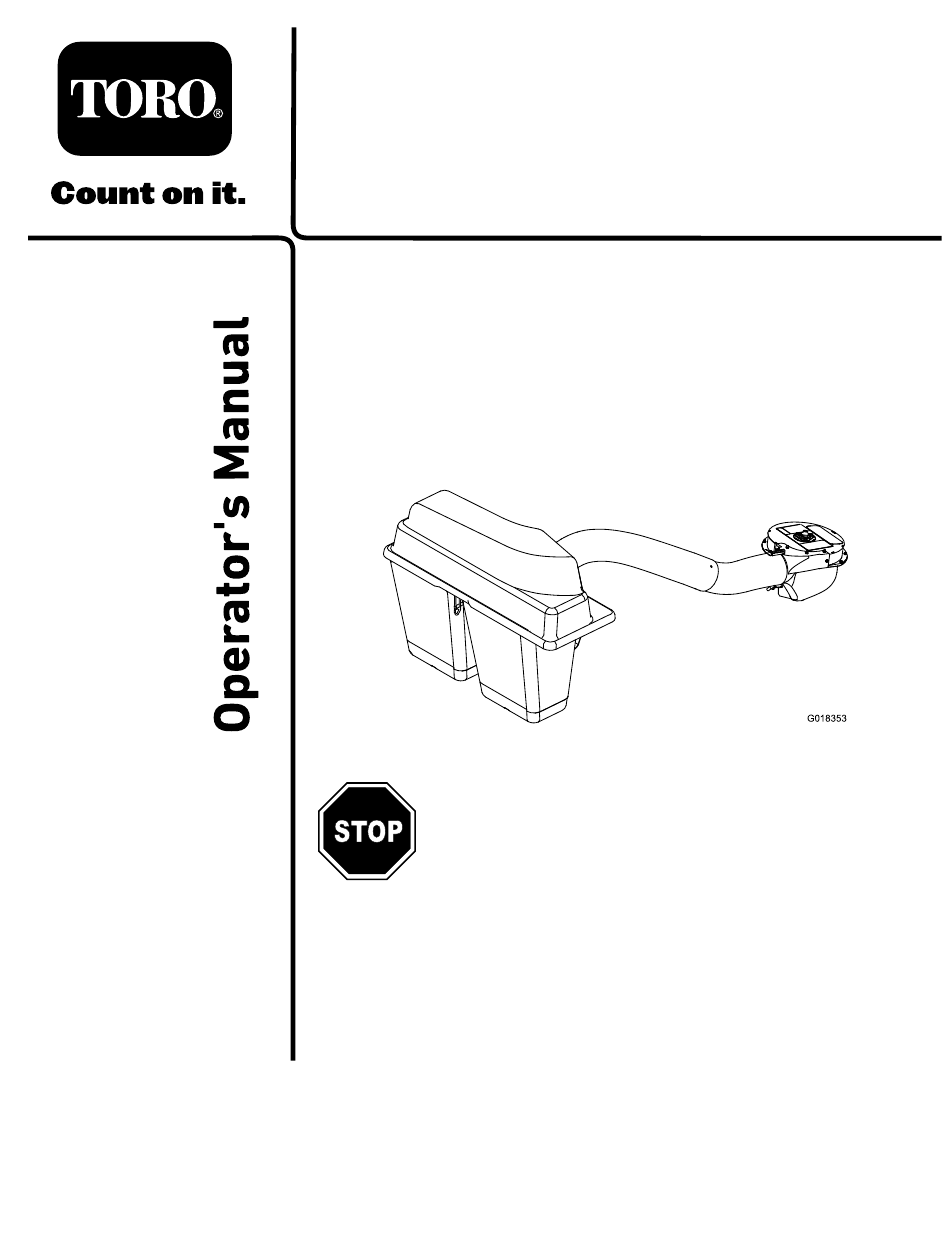

Model No. 79330—Serial No. 406611519 and Up This kit requires the simultaneous installation of other kits to function properly. Contact your Authorized Service Dealer to obtain the corresponding necessary parts. For more information, visit us at www.Toro.com. *3469-375* Register at www.Toro.com. Original Instructions (EN)
Contents Safety Safety ............... 3 • Become familiar with the safe operation of the Safety and Instructional Decals ......4 equipment, with the operator controls, and safety Setup ................ 6 signs. 1 Preparing the Mower........7 • Use extra care with grass catchers or other 2 Installing the Bagger Frame ......
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal126-4659 126-4659 decal109-6809 109-6809 1. Crushing hazard of hand—do not remove the whole bagger from the machine; open the bagger top and then remove the bag(s) from the bagger.
Page 5
decal125-5502 1. Warning—read the 4. Cutting/dismemberment Operator’s Manual. hazard, impeller—disengage the PTO, remove the ignition key, and wait for all moving parts to stop. 2. Warning—wear hearing 5. Thrown object hazard—do protection. not run the blower without the entire collection system installed and latched.
Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. – No parts required Prepare the machine. Bagger frame support bracket Plate Self tapping bolts (5/16 x 3/4 inch) Bolt (5/16 x 2-1/2 inch) Locknut (5/16 inch) Bagger frame Install the bagger frame.
frame using two bolts (5/16 x 2-1/2 inch) and two locknuts (5/16 inch). Preparing the Mower No Parts Required Procedure Perform the following procedure to prepare the mower for attaching the blower and bagger kit. Park the machine on a level surface. Disengage the blade-control switch.
Page 8
Insert the bent ends of the rod into the bagger frame as shown in Figure 7. Secure the end of the rod with a washer and hairpin cotter pin. Adjust the support rods so that bagger frame is held secure to the machine frame and sits in the notch of the angle spacer plate installed previously.
Align the baffle-mounting tabs with the baffle slots in the hood, and push the mounting tabs up and through the slots (Figure Secure the baffle to the hood by inserting the Installing the Hood Baffle hairpins into the holes in the baffle-mounting tabs as shown in Figure Parts needed for this procedure:...
Installing the Hood and the Hood Rod Parts needed for this procedure: Circular cotter pin Hood rod Hairpin cotter pin Procedure Note: The bagger hood is easier to install when two people work together. Install the hood rod to the bagger frame with a hairpin cotter pin.
Installing the Blower Assembly Parts needed for this procedure: Blower assembly (from the Blower and Drive Kit) g005757 Figure 13 Spring (from the Blower and Drive Kit) Metal belt cover (from the Blower and Drive Kit) Align the hole in the rubber hood latch with the hood rod (Figure 14).
g020999 Figure 15 g021000 1. Blower assembly 3. Mower deck Figure 16 2. Pivot pin 4. Rubber flap 1. Latch pin (open position) 5. Spring 2. Latch pin (locking position) 6. Shoulder bolt Move the latch pin from the locking position to 3.
Page 13
Pull the spring loaded idler pulley away from the fixed spring post, and route the belt around the mower deck pulley (Figure 18). Note: Ensure the belt is routed around the blower pulley correctly. Align the plastic belt cover over the drive pulley and belt.
Installing the Discharge Tubes Parts needed for this procedure: Upper tube Screw (1/4 x 3/4 inches) Washer (1/4 inch) Locknut (1/4 inch) Lower tube Procedure Important: Make sure that the mower deck is in the lowest height-of-cut position before installing the discharge tubes.
Page 15
g018440 Figure 21 1. Upper tube 3. Bagger hood 2. Rubber seal protruding out Align the upper tube holes to match the dimples on the surface of the lower tube. Note: Ensure the side profile looks similar to what is shown in Figure g021003 Figure 23...
Installing the Weight Parts needed for this procedure: Weight Adhesive bumper g010701 Figure 25 1. Cutaway of the front of the 3. Weight Washer (5/16 inch) machine frame Hairpin cotter pin 2. Bumper 4. Rest the weight here during install Procedure Important: Whenever you remove the...
Emptying the Grass Bags Operation Note: Determine the left and right sides of the DANGER machine from the normal operating position. Debris, such as leaves, grass, or brush can catch fire. A fire in the engine area can cause WARNING personal injury and property damage.
Clearing Obstructions from the Bagger WARNING When the bagger is in operation, the blower is rotating and can cut off or injure hands and fingers. • Before adjusting, cleaning, repairing and inspecting the blower, and before unclogging the chute, shut off the engine and wait for all moving parts to stop.
reverse order. If weights are installed, always remove the mower ground speed. This helps maintain the the front bagger weights when removing the bagger engine speed and bagging efficiency. Mow downhill attachments. whenever possible. Note: When switching back to side discharge mode, CAUTION remove the bagging baffle and install the original cutoff baffle and side-discharge chute that came with...
Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Inspect the blower belt. After the first 8 hours • Inspect the bagger. • Clean the hood screen. After each use •...
Open the bagger hood. Clean the debris from the screen. Close the bagger hood. Cleaning the Bagger and Bags Service Interval: After each use Wash the inside and outside of the bagger hood, bags, tube, and the underside of the mower. Note: Use a mild automotive detergent to g020950...
Inspecting the Bagger Service Interval: Every 100 hours After the first 8 hours Disengage the PTO, move the motion control levers to the neutral locked position, and set the parking brake. Stop the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.
Storage Storing the Bagger Attachment Clean the bagger attachment; refer to Cleaning the Bagger Attachment. Inspect the bagger attachment for damage; refer to Inspecting the Bagger Attachment. Make sure the grass bags are empty and thoroughly dry. Store the bagger in a clean, dry place, out of direct sunlight.
Troubleshooting Problem Possible Cause Corrective Action Abnormal vibration. 1. Cutting blade(s) is/are bent or 1. Install new cutting blade(s). unbalanced. 2. Blade-mounting bolt is loose. 2. Tighten the blade-mounting bolt. 3. Loose blower pulley or pulley 3. Tighten the appropriate pulley. assembly.
