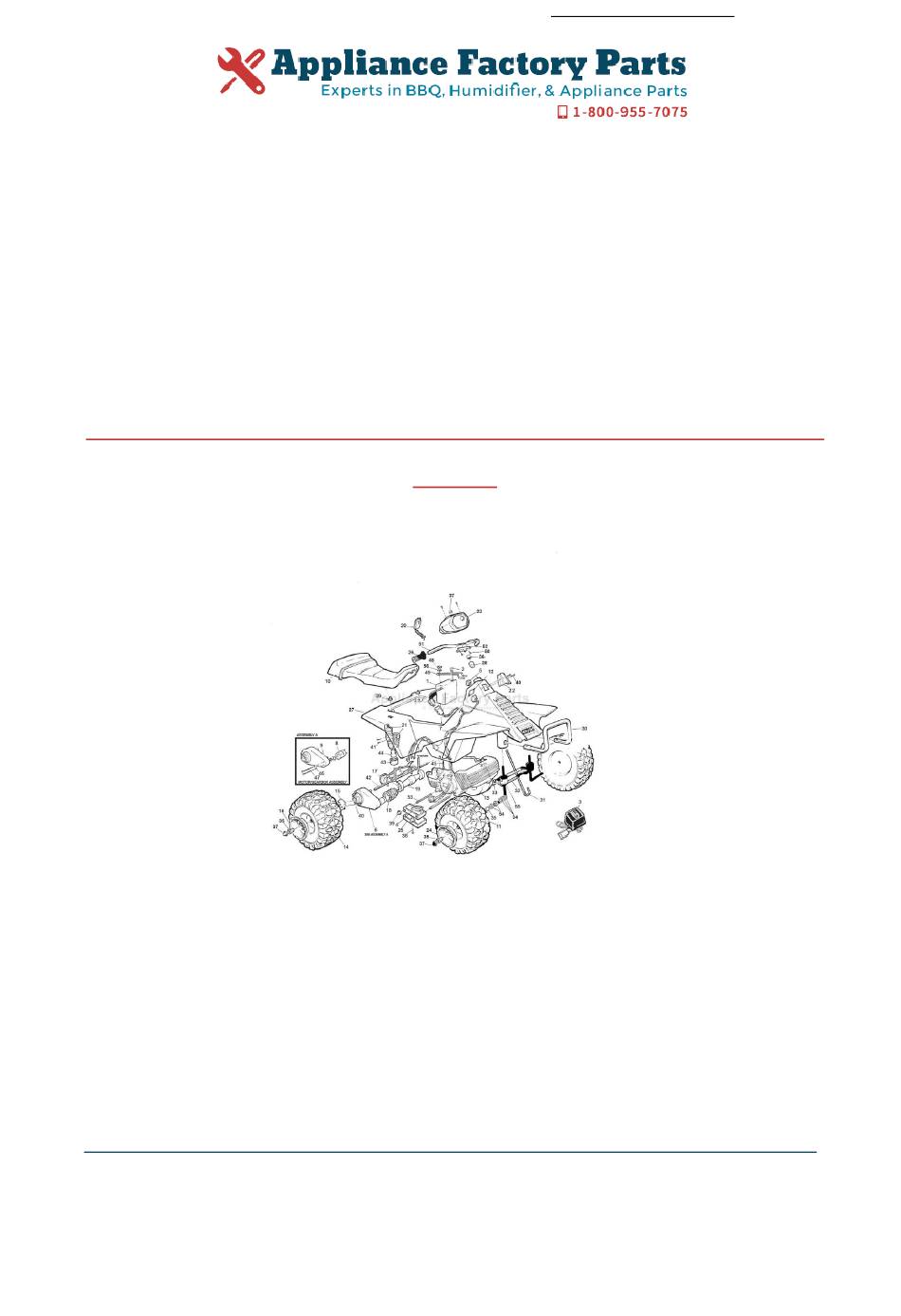

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FISHER PRICE 78475 Owner's Manual Shop genuine replacement parts for FISHER PRICE 78475 Find Your FISHER PRICE Ride On Parts - Select From 999 Models -------- Manual continues below --------...
  • Page 2 ® Product features may vary from the picture below. Owner’s Manual with Assembly Instructions Please read this manual and save it with your original sales receipt. For Model 78475 Tools needed for assembly: Phillips Screwdriver, Slotted Screwdriver and Hammer (not included). Use only with a Power Wheels ®...

  • Page 3: Table Of Contents

    Table of Contents A Important Information ............... . .2 B Warnings .

  • Page 4: B Warnings

    Warnings WARNING • Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.

  • Page 5: C Parts

    Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 6 Parts Cover Plate Hand Grip - 2 Microphone Super 6 ™ Volt Charger Handlebar Handlebar Neck Steering Column 6 Volt Battery Hex Bushing – 6 Axle Spacer - 4 Console/Headlight Assembly Part not shown: Label Sheet Wing Nut Battery Retainer Carriage Bolt #8 x 2"...

  • Page 7: Parts Diagram

    Parts Diagram 24. Wing Nut 1. Vehicle Body 13. Steering Spacer 25. Axle Spacer - 4 2. Steering Column 14. Rear Axle Cover – Short Half 26. #8 x 1" Screw – 2 3. Front Wheel – 2 15. Rear Axle Cover – Long Half 27.

  • Page 8: E Battery Charging

    Battery Charging Important Notes: WARNING • Your new battery must be charged for at least 18 hours before you use it in your vehicle for the • The battery must be handled by adults only. first time. The battery is heavy and contains sulfuric •...
  • Page 9 Battery Charging NO GAP • Plug the charger into a standard 120 volt wall outlet. Note: If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”. Correct Incorrect • Before first time use, charge the battery for at least 18 hours.

  • Page 10: F Assembly

    Assembly Rear Axle Cover Plate Hubcap Vehicle Body Louvers • Fit a hubcap on the rear axle and slide it into the center • Fit the cover plate over the opening above the louvers in of the rear wheel. the front of the vehicle body. •...
  • Page 11 Assembly Cap Nut Front Wheel Front Axle • Fit a cap nut on the end of the rear axle. • Tap the cap nut with a hammer to secure it on the end of the rear axle. • Pull on the wheel to make sure the cap nut is securely •...
  • Page 12 Assembly #8 x 1" Upper Console Screws Hex Bushing Front Axle Ring Side Headlight Lower Console #6 x " Screw Note: For packaging reasons, the console/headlight has been pre-assembled at the factory. You will need to disassem- ble the console/headlight to assemble it to the handlebar. •...
  • Page 13 Assembly Steering Spacer Steering Bushing Handlebar (Narrow Side) Neck of Vehicle Body Hand Grip Steering Column • Fit a hand grip onto each end of the handlebar. If it is difficult to slide the hand grips onto the handlebar, moist- en the hand grips with warm water first.
  • Page 14 Assembly Handlebar Upper Lower Console Console Steering Column Cap Nut • Fit a cap nut on the end of the steering column. • Fit the upper console over the handlebar and onto the • Tap the cap nut with a hammer to secure it on the end of lower console.
  • Page 15 Assembly Rear Axle Cover - Shock Half - Short Half Small Shock Half - Large Rear Support Rear Axle Rear Axle Cover - Long Half Rear View Rear View • Fit the large half of one shock set against one of the rear supports.

  • Page 16: G Label Decoration

    Label Decoration Left View Right View Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...

  • Page 17: H Battery Installation

    Battery Installation Important Note: Use only a Power Wheels ® 6 volt battery with an A-style connector and built-in thermal fuse. Use of any other battery may damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ®...

  • Page 18: Battery Care And Disposal

    Battery Care and Disposal Disposal Care • Your Power Wheels ® battery is a sealed lead-acid If a battery leak develops, avoid contact with the leaking battery. It must be recycled or disposed of in an environ- acid and place the damaged battery in a plastic bag. See mentally sound manner.

  • Page 19: Rules For Safe Driving

    Rules for Safe Driving WARNING • Adult supervision is required. Children do not have the judgement necessary to avoid many accidents. Be sure that 10° children operating this vehicle can do so safely and that they are supervised at all Incline should never be more than 10°...

  • Page 20: K How To Operate Your Vehicle

    How to Operate Caring For Your Vehicle Your Vehicle • Check all nuts, bolts, screws, retainers and their protective To Go Forward coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. •...

  • Page 21: M Problems And Solutions Guide

    Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Affairs, toll-free at 1-800-348-0751 between 8 AM and 5 PM (EST) Monday through Friday. Or, contact your local Power Wheels ®...
  • Page 22 Problems and Solutions Guide Problem Possible Cause Solution Vehicle was running but Loose wire or loose connectors Check all wires and connectors. Make sure the battery suddenly stopped connector is tightly plugged into the motor harness connector, and that there are no loose wires around the motors.
  • Page 23 Problems and Solutions Guide Problem Possible Cause Solution Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the first time. After first-time use, recharge the battery for at least 14 hours after each use.

  • Page 24: N Limited Warranty

    Bumper-to-Bumper* Limited Warranty *One year limited warranty from the date of part of Power Wheels ® , whether under this warranty or implied by law, or any indirect or consequential damages purchase on the Power Wheels ® vehicle. for breach of warranty. Some states do not allow the exclu- Six month limited warranty sion or limitation, so this limitation may not apply to you.
  • Page 25 Authorized Service Centers STOCKTON - California Electronics, 929 North Yosemite SARASOTA - Sunray Small Appliances, 8371 N. Tamiami, FT. WAYNE - Sun Appliance Service & Sales, 3523 Street, 95203, (209) 466-5432 34243, (941) 358-9999, (800) 895-5655 N. Anthony Blvd., 46805, (219) 482-1702 TEMECULA - California Electric Service Center, 41715 SEBRING - Sebring Do-It Center, 305 U.S.
  • Page 26 Authorized Service Centers BERLIN - Myers Auto-Power Tool Rental Co., Inc.,10714 MERIDIAN - Broadmoor Home Center, 2420 Old North Hills COMMACK, L.I. - Turnpike Appliance Service, Ocean Gateway, 21811, (410) 641-3497 Street, P.O. Box 3280, 39305, (601) 483-7373 6181 Jericho Turnpike, 11725, (516) 499-3355 GAITHERSBURG - Waters Appliance Service, 216 NATCHEZ - Western Auto, 180 Seargent Prentiss Dr., ELMIRA - Capabilities, Inc., 1149 Sullivan Street, 14901,...
  • Page 27 Authorized Service Centers LIMA - Crouse Lumber Do-It Center, 333 E. Market Street, GREENWOOD - Bikes & Boards & Mopeds, 203A Montague VERMONT 45801, (419) 229-9070, (800) 826-9663 Avenue, 29646, (864) 229-2453 RUTLAND - Appliance Service Center Ltd., 152 Woodstock NEW BOSTON - True Value Toy Town, Rt.
  • Page 28 Authorized Service Center list in this manual. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. Printed in the U.S.A. ©1999 Mattel, Inc. All Rights Reserved Fisher-Price, Power Wheels, Power Wheels by Fisher-Price and BARBIE are U.S. trademarks of Mattel, Inc. 78475-0921...
