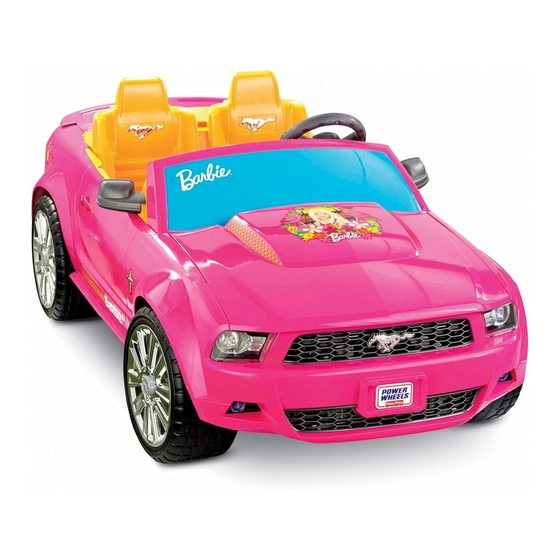

Fisher-Price POWER WHEELS Barbie Ford MUSTANG Owner's Manual With Assembly Instructions

Hide thumbs Also See for POWER WHEELS Barbie Ford MUSTANG:

Owner's manual with assembly instructions (29 pages)

Table Of Contents

Quick Links

Download this manual

This Owner's Manual is provided and hosted by Appliance Factory Parts.

FISHER PRICE P8812

Owner's Manual

Shop genuine replacement parts for FISHER PRICE

P8812

Find Your FISHER PRICE Ride On Parts - Select From 999 Models

-------- Manual continues below --------

Table of Contents

Need help?

Do you have a question about the POWER WHEELS Barbie Ford MUSTANG and is the answer not in the manual?

Questions and answers

Summary of Contents for Fisher-Price POWER WHEELS Barbie Ford MUSTANG

Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FISHER PRICE P8812 Owner's Manual Shop genuine replacement parts for FISHER PRICE P8812 Find Your FISHER PRICE Ride On Parts - Select From 999 Models -------- Manual continues below --------...
Page 2 Please read this manual and save Please read this manual and save it with your original sales receipt. it with your original sales receipt. Tools needed for assembly: Phillips Tools needed for assembly: Phillips Screwdriver (not included) and Screwdriver (not included) and Assembly Tool (included).
Page 3: Table Of Contents
• Use this vehicle ONLY outdoors. Most interior flooring can be charge. To find the authorized service center nearest you, damaged by riding this vehicle indoors. Fisher-Price ® will not be please visit us on-line at www.powerwheels.com...
Page 4: Electrical Hazard
IMPORTANT INFORMATION ELECTRICAL HAZARD DANGER To prevent electric shock, do not immerse in water; wipe clean with a damp cloth. WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system.
Page 5: Parts
PARTS • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. •...
Page 6 PARTS Steering Wheel Steering Wheel Cap 12 Volt Battery 2 Bushings 4 Hubcaps 12 Volt Charger 2 Mirrors 5⁄32" x 1½ " Pin - 1 ⅜ " -16 Lock Nut - 2 2 Mirror Covers #8 x ¾ " Screw - 29 #8 x ¾...
Page 7: Parts Picture
PARTS PICTURE Note: Some parts shown are assembled to both sides of the vehicle. Vehicle Wheel Covers - 2 Steering Column Spoiler Parts Not Shown 7⁄16" Washers - 2 Front Bumper Steering Wheel Grill Assembly Tool Dash Assembly Steering Wheel Cap Long Seat Belt #8 x ¾...
Page 8: Battery Charging
BATTERY CHARGING ELECTRICAL HAZARD CAUTION WARNING Use the charger in dry locations only. • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. About Thermal Fuses • PREVENT FIRE Your Power Wheels ® 12 volt battery is equipped with a built-in - Never modify the electrical system.
Page 9: Assembly
BATTERY CHARGING ASSEMBLY WARNING Power Indicator Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
Page 10 ASSEMBLY Front Bumper Bushing Washer • Fit the front bumper onto the vehicle. Front Axle • Slide a 7⁄16" washer the right (passenger's) side of the front axle. • Fit a bushing, flat side first, onto the front axle. Front Wheel •...
Page 11: Front View
ASSEMBLY Assembly Lock Nut FRONT VIEW Tool • Insert six #8 x ¾ " screws into the front bumper and tighten. • Fit a ⅜ "-16 lock nut, rounded side out, onto the front axle. IMPORTANT! Tighten the lock nut firmly with the closed end of the assembly tool.
Page 12 ASSEMBLY Mirror Dash Assembly Mirror Cover • Fit a mirror and mirror cover to an end of the dash assembly. Hint: Each mirror and mirror cover only fit on one side of the • Insert four #8 x ¾ " screws into the dash assembly and tighten. vehicle.
Page 13 ASSEMBLY 26 26 Battery Compartment Door Battery Compartment Door Battery Compartment Door DASH VIEW • Locate the simulated radio on the dash. • Before applying the labels, wipe the surface of the vehicle with • Loosen two screws a clean, dry cloth to remove any dust or oils. under the dash to remove the simulated radio.
Page 14: Back View
ASSEMBLY Rear Deck Hood BACK VIEW • Fit the tabs on the rear deck into the slots in the back end of the vehicle. FRONT VIEW Short Seat Belts • Fit the long tabs on the hood into the slots in the front end of the vehicle.
Page 15: Top View
ASSEMBLY BOTTOM VIEW • Turn the vehicle over. Slots • Insert two #8 x ¾ " screws through the vehicle and into the rear deck. Tighten the screws. TOP VIEW Note: The seat is adjustable and has three positions. You can move the seat back as your child grows.
Page 16 ASSEMBLY Press Wheel Steering Column Cap Steering Column Cap Lift Steering Lift Steering Column Column • Fit the Steering Column cap onto • While pressing down on the steering wheel, grasp the steering the end of the column under the dash and pull it up as far as it will go. steering column.
Page 17: Decoration
DECORATION • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. • Place the labels exactly as shown in the illustrations. For best results, avoid repositioning a label once it has been applied to the vehicle. •...
Page 18 DECORATION LEFT VIEW RIGHT VIEW DOOR VIEW P8812pr-0920...
Page 19: Battery Installation
BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels ® 12 volt lead-acid rechargeable battery. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ®...
Page 20: Battery Care And Disposal
BATTERY CARE AND DISPOSAL Care Disposal If a battery leak develops, avoid contact with the leaking acid and • Your Power Wheels ® battery is a non-spillable, sealed lead-acid place the damaged battery in a plastic bag. See information below battery.
Page 21: Safe Driving Rules
SAFE DRIVING RULES Teach Safety Rules to Children RIDING HAZARD While children can quickly develop the skill necessary to drive this vehicle, it is important to remember that their judgment skills WARNING are still very immature. Unsupervised driving by children can lead to serious injury.
Page 22: Vehicle Operation
See the instructions on this page to remove the high speed lock-out screw. STOP IMPORTANT! Use this vehicle ONLY outdoors. Most interior floor-ing can be damaged by riding this vehicle indoors. Fisher-Price will not be responsible for damage to the floor ® if the vehicle is used indoors.
Page 23: Cool Sound Effects
COOL SOUND EFFECTS VEHICLE CARE • Check all screws, cap nuts and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover.
Page 24: Problems And Solutions Guide
PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 9 AM - 7 PM (EST) Monday through Friday or 11 AM - 5 PM (EST) Saturday.
Page 25 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Short run time (Less than Undercharged battery Charge the battery. A new battery should have been charged for 1 - 3 hours per charge) at least 18 hours before using the vehicle for the fi rst time. After fi rst-time use, recharge the battery for at least 14 hours after each use.
Page 26 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Vehicle runs in low speed, but High speed lock-out not disconnected. The vehicle was pre-set to run only in low speed. To allow the does not run in high speed. vehicle to run in low and high speed, you must disconnect the High Speed Lock-Out.
Page 27: Fcc Statement
FCC STATEMENT ICES AND NMB STATEMENTS United States Only This equipment has been tested and found to comply with the limits ICES-003 for a Class B digital device, pursuant to Part 15 of the FCC Rules. • This Class B digital apparatus complies with Canadian ICES-003. These limits are designed to provide reasonable protection against •...
Page 28: Limited Warranty
LIMITED WARRANTY Bumper-to-Bumper* Limited Warranty *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the 12 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ®...
Page 29 For the location nearest you, visit us on-line at www.powerwheels.com. Ford Oval and Mustang are registered trademarks owned and licensed by Ford Motor Company. Manufactured by Fisher-Price, Inc. www.ford.com BARBIE and associated trademarks and trade dress are owned by, and used under license from Mattel, Inc.
