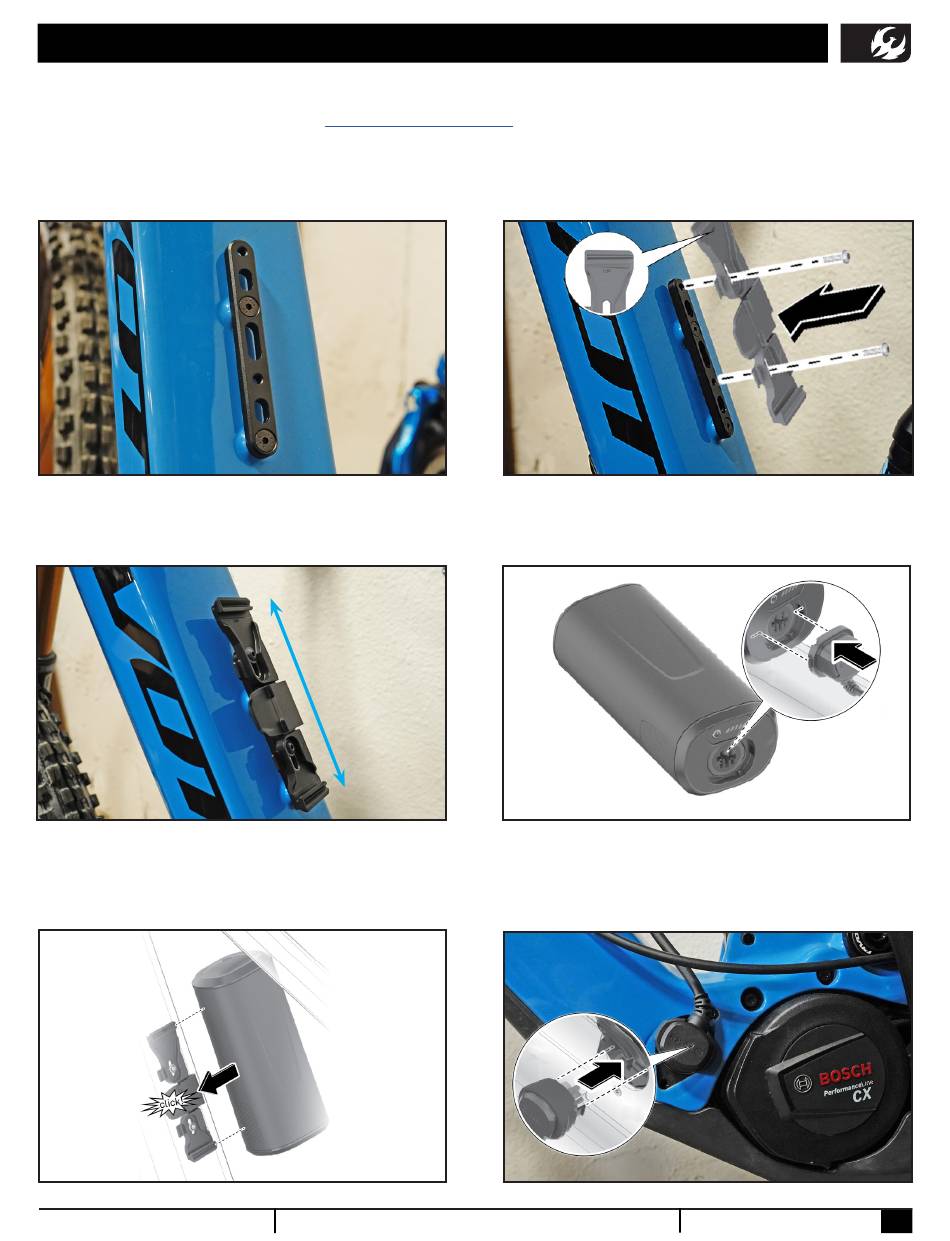

POWERMORE 250 INSTALLATION WITH OFFSET BRACKET

Before you begin using your PowerMore 250 Range Extender test the battery and fully charge it.
For additional information refer to www.bosch-ebike.com.
1.) Install the offset bracket with the offset portion
at the top. Torque these fixing screws to 3Nm.
3.) Adjust the bracket to your prefered location
for water bottle or shock clearance and secure
the fixing screws to 3Nm.
5.) Slide the PowerMore 250 into the bracket
from the drive side until you hear it click to lock
in place.
pivotcycles.com info@pivotcycles.com
2.) Prepare the bracket for installation. Making
sure to have it oriented correctly checking the
"TOP" indication.
4.) Insert the PowerMore Battery Cable into the
PowerMore 250 Battery until you hear a click
that the tabs have secured it in place.
5.) Route the Powermore Cable behind the brake
line. Insert it into the charging port until you
hear a click that it is secured in place.
