4420 FOUNTAIN

Halsey Taylor Owners Manual

Model 4420

Bi-Level Tubular Fountain

INSTALLER

Halsey Taylor Fountains are among the easiest to install Fountains on the

market today. To assure you install these models easily and correctly,

PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE

INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH

PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After install-

ation, leave these instructions with the Fountain for future reference.

IMPORTANT

ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON

IMPORTANT! INSTALLER PLEASE NOTE.

PAGE 1

97588C (Rev. M - 5/04)

Need help?

Do you have a question about the 4420 and is the answer not in the manual?

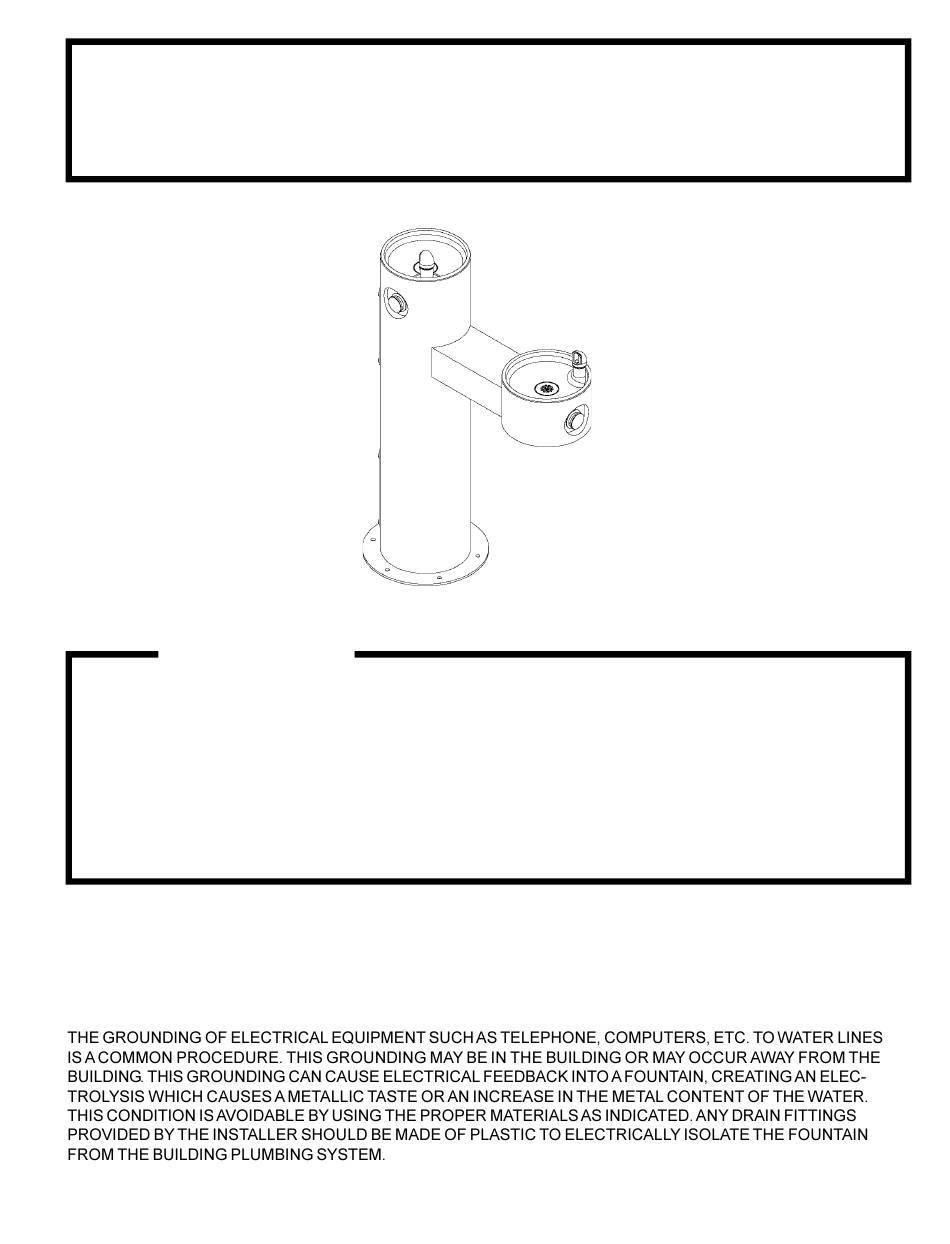

Page 1 Model 4420 Bi-Level Tubular Fountain INSTALLER Halsey Taylor Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES.
Page 2 All manuals and user guides at all-guides.com LEGEND A = 3/8" O.D. UNPLATED COPPER TUBE CONNECT - SHUT OFF VALVE BY OTHERS B = ACCESS PANEL ( 8" X 10" ) C = REMOVABLE BOTTOM COVER...
Page 3 All manuals and user guides at all-guides.com 4420 FOUNTAIN TROUBLE SHOOTING AND MAINTENANCE Actuation of Quick Connect Water Fittings: FIG. 1 3/8" O.D. UNPLATED 1/4" O.D. TUBE COPPER TUBE CONNECT WATER INLET COLD WATER SUPPLY TO COOLER BUILDING WATER INLET...
Page 4 All manuals and user guides at all-guides.com 4420 FOUNTAIN Touch-up Paint 2222 CAMDEN COURT FIG. 3 OAK BROOK, IL 60523 630.574.3500 FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620 PRINTED IN U.S.A. 97588C (Rev. M - 5/04) PAGE 4...
