Halsey Taylor 4400 Owner's Manual

Floor mount tubular fountain

4400 FOUNTAIN

Halsey Taylor Owners Manual

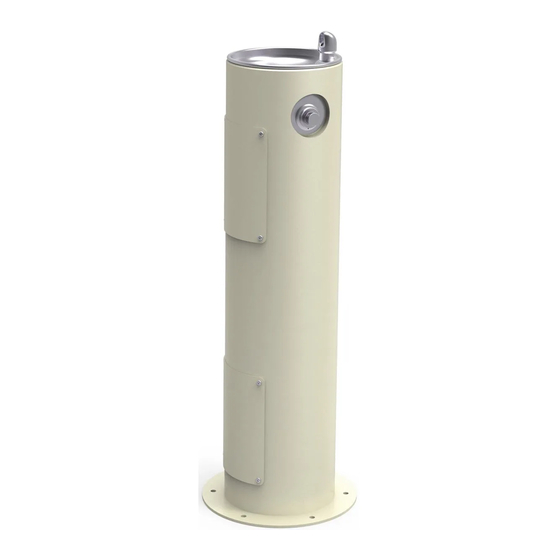

Model 4400

Floor Mount Tubular Fountain

INSTALLER

Halsey Taylor Fountains are among the easiest to install Fountains on the

market today. To assure you install these models easily and correctly,

PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE

INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH

PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After install-

ation, leave these instructions with the Fountain for future reference.

IMPORTANT

ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON

IMPORTANT! INSTALLER PLEASE NOTE.

PAGE 1

97585C (Rev. J - 5/04)

Table of Contents

Do you have a question about the 4400 and is the answer not in the manual?

Page 1 Model 4400 Floor Mount Tubular Fountain INSTALLER Halsey Taylor Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES.
Page 2 LEGEND A = 3/8" O.D. UNPLATED COPPER TUBE CONNECT - SHUT OFF VALVE BY OTHERS B = ACCESS PANEL ( 8" X 10" )
Page 3 4400 FOUNTAIN TROUBLE SHOOTING AND MAINTENANCE Actuation of Quick Connect Water Fittings: FIG. 1 3/8" O.D. UNPLATED 1/4" O.D. TUBE COPPER TUBE CONNECT WATER INLET COLD WATER SUPPLY TO COOLER BUILDING WATER INLET NOTE: WATER FLOW SERVICE STOP DIRECTION (NOT FURNISHED) FIG.
Page 4 4400 FOUNTAIN Touch-up Paint FIG. 3 2222 CAMDEN COURT OAK BROOK, IL 60523 630.574.3500 FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620 PRINTED IN U.S.A. 97585C (Rev. J - 5/04) PAGE 4...
