4420DBFR_FTN _A
LK4420DBFR_FTN_A
Owners Manual

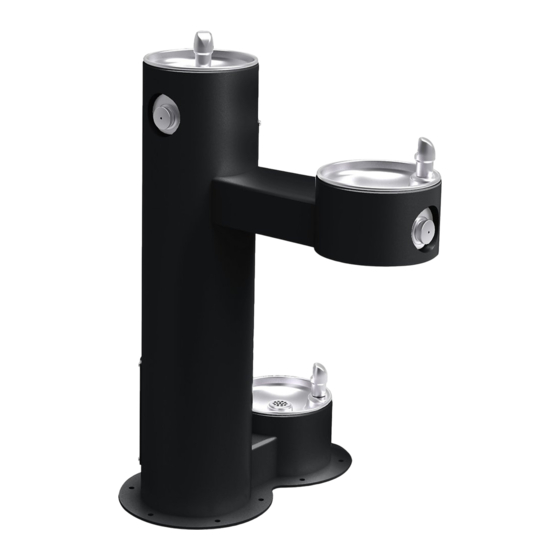

Model 4420DBFR Bi-Level Tubular Fountain with Pet Fountain
and Sanitary Freeze Resistant Triple Valve Control Assembly
INSTALLER
4420DBFR Fountains are among the easiest to install Fountains on the market today. To assure
you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS
BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE
WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After installation, save
these instructions for future reference.
PAGE 1
1000003947
(Rev. A - 06/17)
Advertisement
Related Manuals for Halsey Taylor 4420DBFR FTN A Series
Summary of Contents for Halsey Taylor 4420DBFR FTN A Series
- Page 1 4420DBFR_FTN _A LK4420DBFR_FTN_A Owners Manual Model 4420DBFR Bi-Level Tubular Fountain with Pet Fountain and Sanitary Freeze Resistant Triple Valve Control Assembly INSTALLER 4420DBFR Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION.
-
Page 2: Installation Instructions
4420DBFR_FTN _A LK4420DBFR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING. - Page 3 4420DBFR_FTN _A LK4420DBFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420FR FTN. WHEN USING THE SANITARYFR3 VALVE 4" PVC 1/4 BEND (SUPPLIED BY INSTALLER) 1-1/2" DRAIN TUBE (SUPPLIED BY INSTALLER) 4" PVC PIPE (SUPPLIED BY INSTALLER) CONCRETE SLAB CLEANOUT PLUG FOR ACCESS 4"...
- Page 4 4420DBFR_FTN _A LK4420DBFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420DBFR FTN. WHEN USING THE SANITARYFR3 VALVE 1-1/2 DRAIN TUBE SUPPLIED WITH FTN. AIR GAP ASSY. ( 4 ) 1/2" ( 13mm ) DIA. HOLES SUPPLIED WITH VALVE SPACED AS SHOWN ON A 22"...
- Page 5 4420DBFR_FTN _A LK4420DBFR_FTN_A FOUNTAIN CONNECTIONS PLUMBING CONDUIT (BY INSTALLER) TO VALVE FIG. 3 INSTRUCTIONS FOR CONNECTING TUBES FROM VALVE TO FOUNTAIN(S) Step 1 - Insert the 1/8” O.D. tube(s) (Labeled A, B & J) into the connector(s) (provided with fountain). Insert the 1/8” O.D. tube(s) coming from the fountain(s) push button actuator(s) into the connector(s).
- Page 6 4420DBFR_FTN _A LK4420DBFR_FTN_A Stream Height Adjustment 5,13 SEE DETAIL B DETAIL B FIG. 4 1000003947 (Rev. A - 06/17) PAGE 6...
-
Page 7: Parts List
4420DBFR_FTN _A LK4420DBFR_FTN_A The Following Items are included with the SanitaryFR3 Valve PARTS LIST DESCRIPTION ITEM NO. PART NO. 110175443890 Hex Nut - 3/8-16 1000003964 Bracket - Regulator Mtg (Serv) 40045C Hex Nut - 1-5/16 1000003963 Triple Valve 50986C Regulator Holder 56082C Regulator Nut 56092C... - Page 8 4420DBFR_FTN _A LK4420DBFR_FTN_A Included with Sanitary Valve 30, 30a, 30b FIG. 7 1000003947 (Rev. A - 06/17) PAGE 8...
-
Page 9: Troubleshooting And Maintenance
Yellow = YLW Brown = BRN Red = RED PRINTED IN U.S.A. FOR PARTS CONTACT YOUR LOCAL DISTRIBUTOR OR CALL TECHNICAL SERVICES AT 1.800.834.4816 Halsey Taylor – halseytaylor.com 2222 CAMDEN COURT, OAK BROOK, ILLINOIS 60523 Elkay – elkay.com PAGE 9 1000003947...
