DEMO MANUAL DC2296

Quick start proceDure

Connect one of the five sensor daughter boards (DC2210,
DC2211, DC2212, DC2213 or DC2214) to the DC2209
demo board. Connect the DC2209 to a DC2026 using
the supplied 14-conductor ribbon cable. Connect the
DC2026 to the PC using a standard USB A/B cable. Run
the QuikEval software which the latest version can be
downloaded from the Linear website at
software. The LTC2983 demo program will be loaded
automatically. Refer to software manual LTC2983DSM
for more detailed information.
2
The demo software helps program and run the LTC2983.
It can configure the LTC2983, check and save the con-
figuration, run the LTC2983, output the results into a file,
and even create Linduino One ready C code based on
the configuration. The demo software allows the user to
configure the LTC2983 manually or automatically from
www.linear.com/ data stored in the daughter board EEPROM. Please see
www.linear.com/LTC2983software

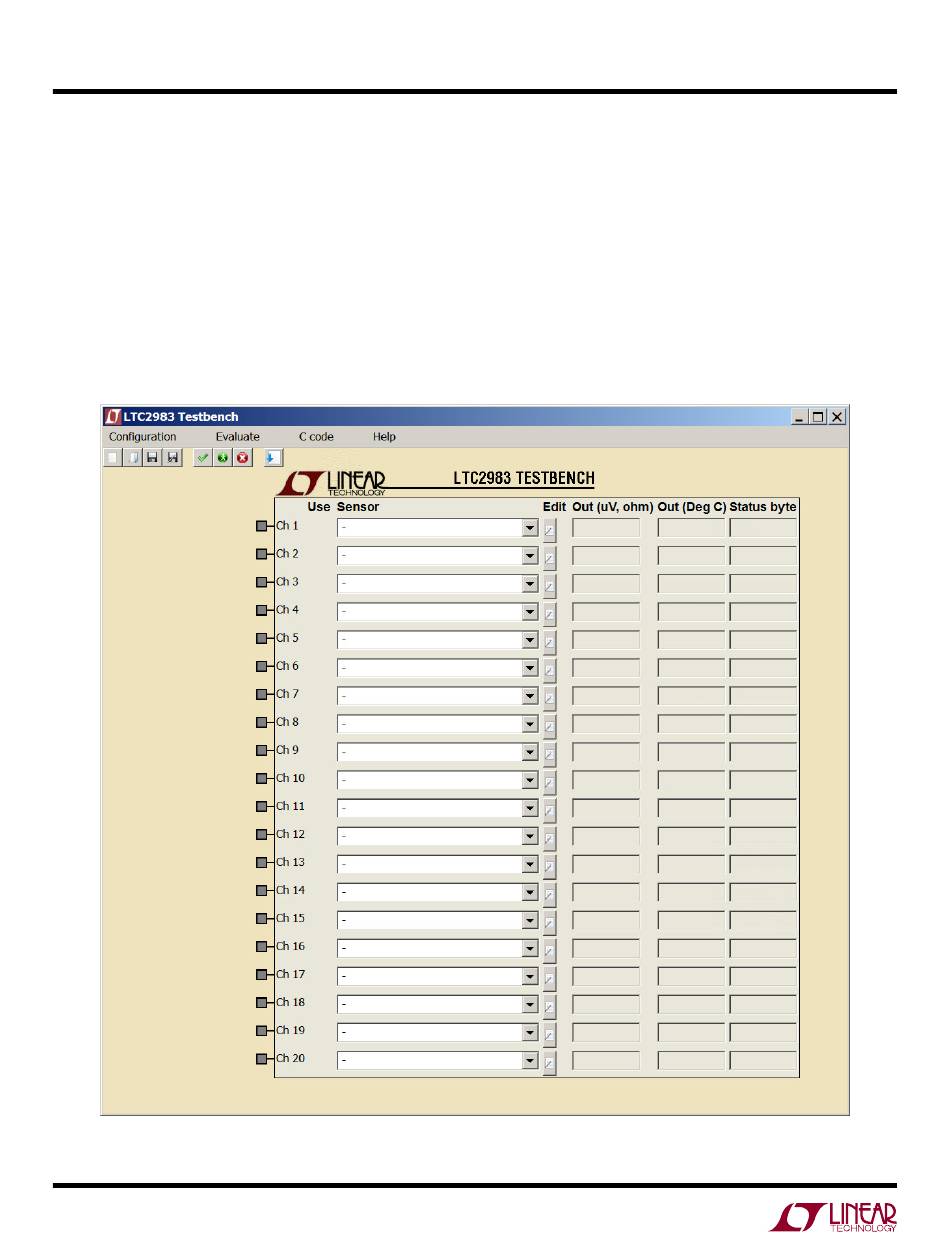

manual. It includes a short tutorial for getting started. Figure
2 shows a screenshot of the demo software at start-up.
Figure 2. LTC2983 Demo Software
for the demo software
