DEMO MANUAL DC2296
HarDware setup
DC2211 univErSaL TEMpEraTurE MEaSurEMEnT
BoarD
The universal temperature measurement board (see Figure
5) allows the user to connect any of the LTC2983 sup-
ported sensors to the DC2209 demo board.

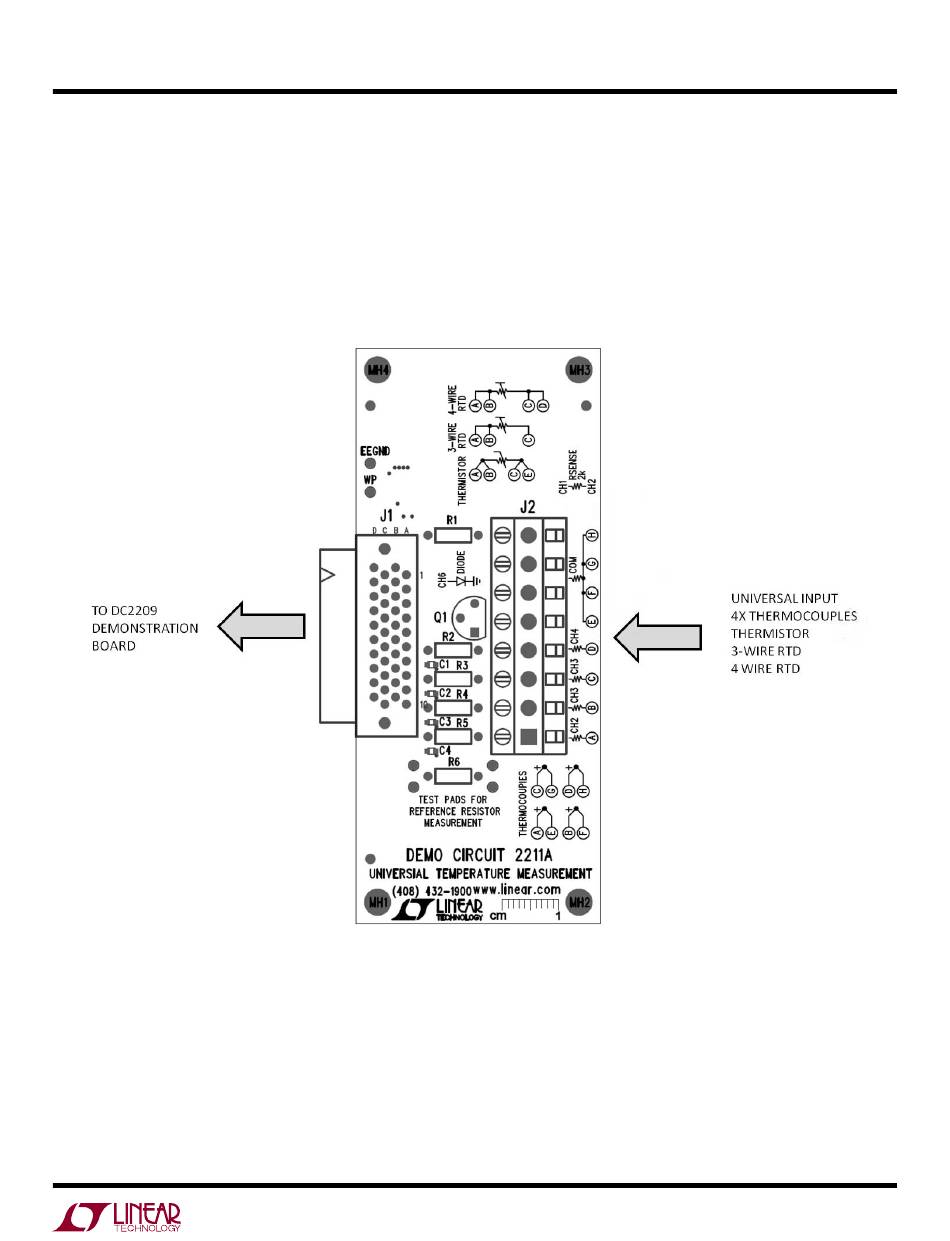

Figure 5. DC2211 universal Temperature Measurement Board
