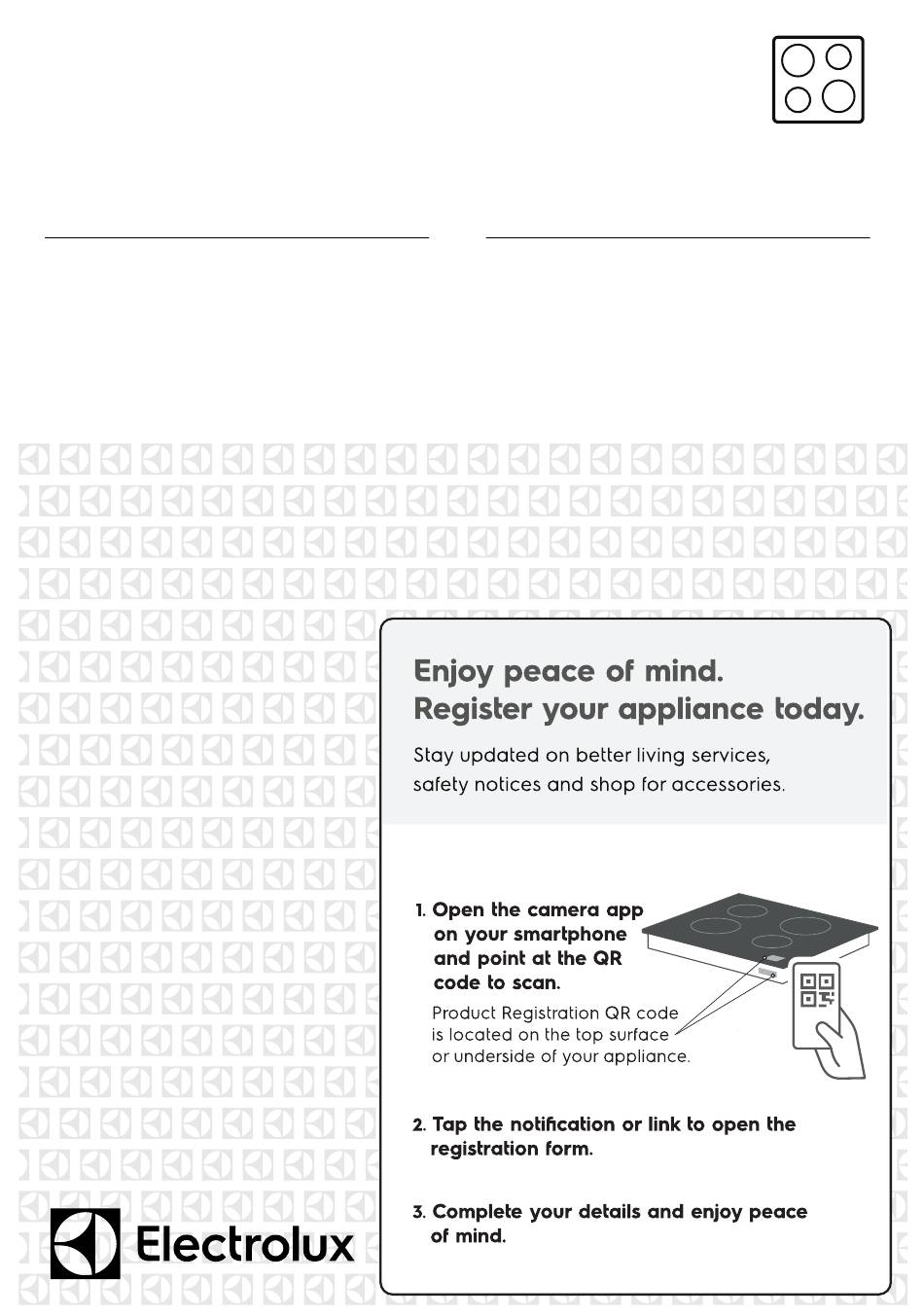

  • Page 1 EHI644BF EN Induction Cooktop Installation & User manual...
  • Page 2: Table Of Contents

    Serial number: _______________________________ accordance with this manual. You may not be able to claim on the Electrolux NOTE: Model codes shown in this manual are the manufacturer’s warranty in the event generic code. Your product will also include a two letter that your product fault is due to failure to suffix which denotes colour and series level.
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Installation Before using your appliance WARNING Only a qualified person must install this Before you use the appliance, we recommend that appliance. you read through the relevant sections of this manual, • Remove all the packaging. which provides the description of your appliance and •...
  • Page 4 SAFETY INSTRUCTIONS Centre or an electrician to change a damaged Risk of damage to the appliance. mains cable. • Do not keep hot cookware on the control panel. • The electrical installation must have an isolation • Do not let cookware to boil dry. device which lets you disconnect the appliance •...
  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Built-in appliances WARNING • Only use the built-in appliances after you assemble the Refer to “Safety information” chapter. appliance into correct built-in units and work surfaces that align to the standards. IMPORTANT Connection cable Before the installation, note down the serial number (Ser. Nr.) from the rating plate at the front of this manual.
  • Page 6 INSTALLATION INSTRUCTIONS IMPORTANT It is recommended to centre the bench cutout with equal distance front and back as shown but the product has also been certified to be installed with no clearance between the rear edge of the cooktop glass and rear wall if required. In doing so, installers still need to leave sufficient clearance to take into account that the glass dimensions are larger than the cut out.
  • Page 7: Technical Data

    TECHNICAL DATA TECHNICAL DATA EHI644BF 949163542 Product dimensions (W x D x H) mm 590 x 520 x 51 Cut-out dimensions (W x D) mm 560 x 490 Voltage (volts) 220-240 Frequency (Hz) Total power (Watts) 4600 No. of cooking zones...
  • Page 8: Product Description

    PRODUCT DESCRIPTION PRODUCT DESCRIPTION Induction cooking zone 2300 W, with Power function 3200 W (minimum cookware diameter =125 mm). Generator 1(LR zone): 3200W Generator 2(LF zone): 3200W Induction cooking zone 1800 W, with Power function 2800 W (minimum cookware diameter =150 mm). Generator 3(RR zone): 2800W Induction cooking zone 1400 W, with Power function 2500 W (minimum cookware diameter =125 mm).
  • Page 9 PRODUCT DESCRIPTION Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. SENSOR FIELD FUNCTION It activates and deactivates the appliance (ON/OFF) A heat setting display It shows the heat setting of the left front (LF) cooking zone It activates the PowerBoost function To set the timer function It increases or decreases the time...
  • Page 10: Operating Instructions

    Model number: EHI644BF 20amp (4.6kw) PowerBoost function The PowerBoost function makes more power available to the induction cooking zones. To activate, touch P until comes on.
  • Page 11 OPERATING INSTRUCTIONS POWERLITE EHI644BF 20amp (4.6kw) When using more than one zone at the same time, the power sharing feature will activate to reduce the overall load. This may restrict the maximum heat level achievable for each zone. It may be necessary to lower the settings on other zones before increasing the heat setting or activating an additional cooking zone.
  • Page 12: Bridge Function

    OPERATING INSTRUCTIONS Count down timer To activate the child safety device Use the Count Down Timer to set how long the cooking • Activate the appliance with . Do not set the zone operates for only this one time. Set the Timer after heat settings.
  • Page 13: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS • Protect the hood panel from direct sunlight. Mode H4 Fan speed 1 Fan speed 1 • Do not spot halogen light on the hood panel. • Do not cover the panel. • Do not interrupt signal between the hob and the hood Mode H5 Fan speed 1 Fan speed 2 (for example with a hand or a cookware handle).
  • Page 14 HELPFUL HINTS AND TIPS Cookware is correct for an induction hob if ... Rangehoods with the Hob²Hood function • Some water boils very quickly on a zone set to the To find the full range of rangehoods which work with this highest heat setting.
  • Page 15: Care And Cleaning

    CARE AND CLEANING CARE AND CLEANING Care and cleaning Clean the appliance after each use. Always use cookware with clean bottom. IMPORTANT Scratches or dark stains on the glass ceramic have no effect on how the appliance operates. To remove the dirt: Remove immediately: melted plastic, plastic foil, If the deposit does not clean off easily, use a non-abrasive and food with sugar.
  • Page 16: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING PROBLEM POSSIBLE CAUSE AND REMEDY You cannot activate The hob is not connected to an electrical supply Check if the hob is correctly connected to or operate the hob. or it is connected incorrectly. the electrical supply. Refer to the connection diagram.
  • Page 17: The Noises During Operation

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE AND REMEDY There is no cookware on the zone. Put cookware on the zone. comes on. The cookware is unsuitable. Use suitable cookware. Refer to "Hints and tips". The diameter of the bottom of the cookware is Use cookware with correct dimensions.
  • Page 18 TROUBLESHOOTING FAQs Display is flashing This is normal during power sharing mode. The power for the zone is automatically reduced to ensure the maximum power available is not exceeded. The display is switching between 2 power settings The heat setting display of the reduced zones changes between the initially selected heat setting and the reduced heat setting, it will stop switching after about 1 minute.
  • Page 19: Warranty

    New Zealand, the Appliances come with a guarantee by Electrolux Appliance to and from Electrolux or its ASC. Travel and transportation will pursuant to the provisions of the Consumer Guarantees Act, the Sale be arranged by Electrolux as part of any valid warranty claim.
  • Page 20 0800 436 245 fax: 0800 225 088 email: customercare@electrolux.co.nz web: electrolux.co.nz To add a touch of professional inspiration to your home, visit electrolux.com.au or electrolux.co.nz electrolux.com.au or electrolux.co.nz © 2024 Electrolux Home Products Pty Ltd. ABN 51 004 762 341 E_MAN_HI_A19136415_A_June2024...
