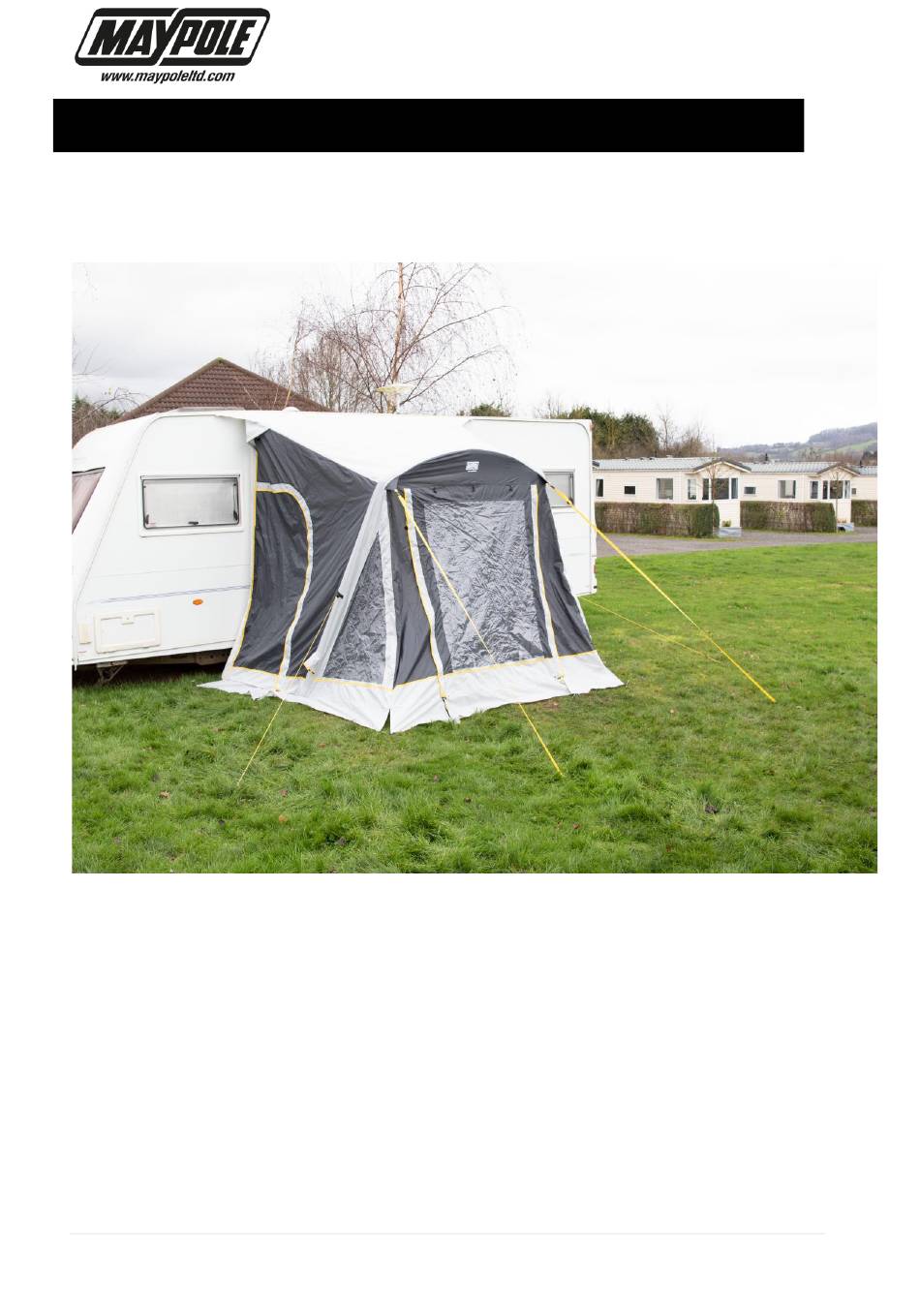

STONELEIGH AIR PORCH AWNING MP9508
USER GUIDE
Please read this user guide before attempting to set up your Air Porch
Awning. Follow the user guide carefully and keep for future reference.
A copy of the user guide is also available on our website
www.maypoleltd.com
1 |
P a g e
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MayPole STONELEIGH
Summary of Contents for MayPole STONELEIGH
- Page 1 STONELEIGH AIR PORCH AWNING MP9508 USER GUIDE Please read this user guide before attempting to set up your Air Porch Awning. Follow the user guide carefully and keep for future reference. A copy of the user guide is also available on our website www.maypoleltd.com...
- Page 2 STONELEIGH AIR PORCH AWNING MP9508 USER GUIDE WARNING – GENERAL SAFETY • Not to be used in strong winds and extreme weather conditions. • If using stepladders or a platform to set up the Air Porch Awning you will be working at height &...
-
Page 3: Before Use
STONELEIGH AIR PORCH AWNING MP9508 USER GUIDE BEFORE USE Choose a clear site that is flat. Remove any sharp objects from the pitching area which could be dangerous or potentially damage the fabric or puncture the air tubes. NOTE – this Air Porch Awning is suitable for vehicles with an awning channel height range of 235cm –... - Page 4 STONELEIGH AIR PORCH AWNING MP9508 USER GUIDE Locate the air valve on the leg of the awning and unscrew the top cap (FIG 2). FIG 2 Connect the large adaptor (FIG 3) to the hand pump. Insert the adaptor into the top cap on the valve (FIG 4).
- Page 5 STONELEIGH AIR PORCH AWNING MP9508 USER GUIDE Buckle together the sizing strap between each leg to achieve the correct spacing (FIG 7). Peg down each leg at the base (FIG 8) and all pegging points found on each side. FIG 7 FIG 8 Once in position;...
- Page 6 STONELEIGH AIR PORCH AWNING MP9508 USER GUIDE FIG 11 Pre assemble the adjustable steel roof pole. Insert each end of the roof pole into the middle roof pockets. Extend the roof bar to its maximum length: P a g e...
- Page 7 STONELEIGH AIR PORCH AWNING MP9508 USER GUIDE Pre assemble the steel canopy poles. Extend the front door and insert the top spike on each pole into the corner eyelets of the front door. Peg down the feet of the canopy poles (FIG 12).
