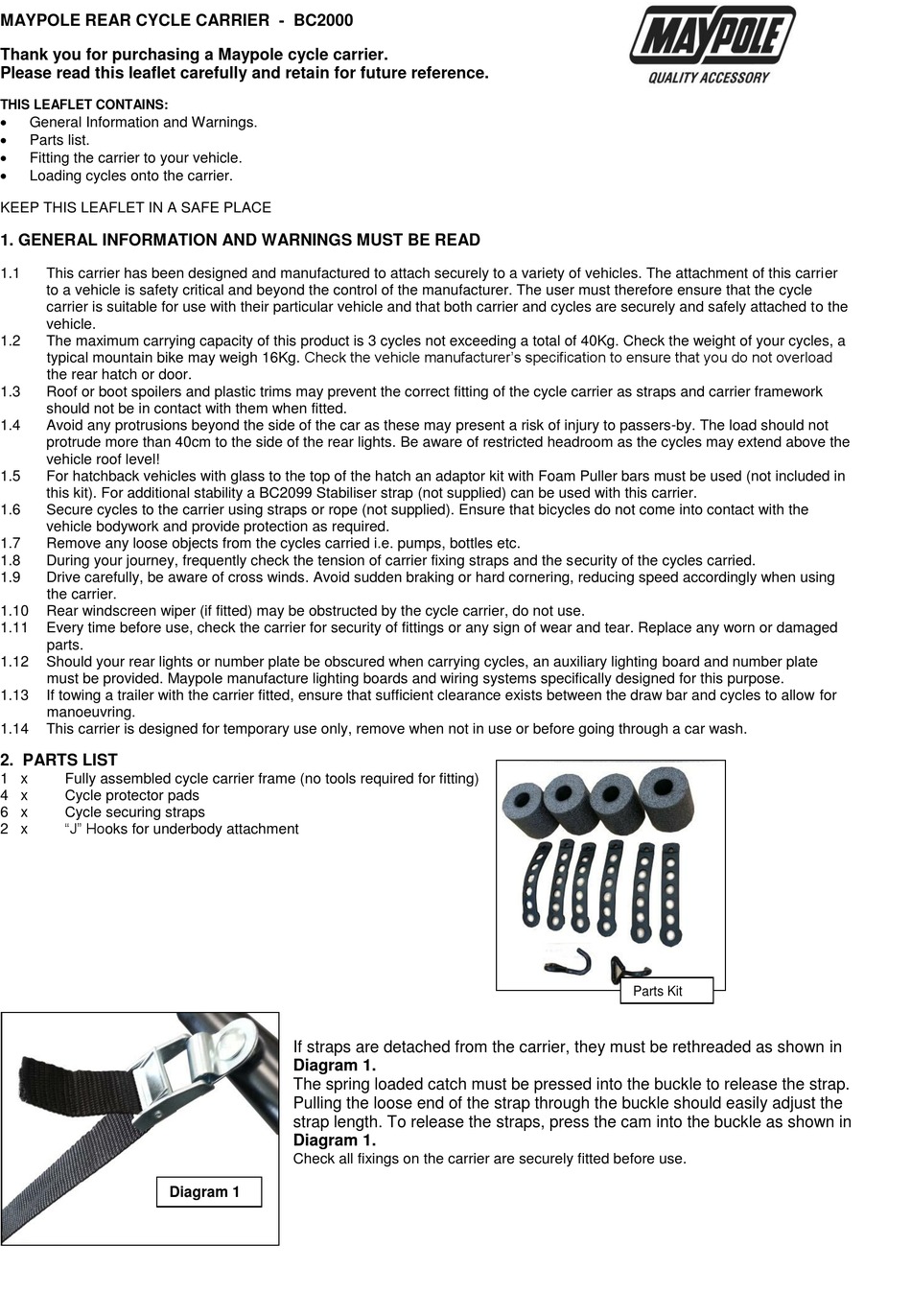

MAYPOLE REAR CYCLE CARRIER - BC2000
Thank you for purchasing a Maypole cycle carrier.
Please read this leaflet carefully and retain for future reference.
THIS LEAFLET CONTAINS:

General Information and Warnings.

Parts list.

KEEP THIS LEAFLET IN A SAFE PLACE
1. GENERAL INFORMATION AND WARNINGS MUST BE READ
1.1
This carrier has been designed and manufactured to attach securely to a variety of vehicles. The attachment of this carrier
to a vehicle is safety critical and beyond the control of the manufacturer. The user must therefore ensure that the cycle
carrier is suitable for use with their particular vehicle and that both carrier and cycles are securely and safely attached to the
vehicle.
1.2
The maximum carrying capacity of this product is 3 cycles not exceeding a total of 40Kg. Check the weight of your cycles, a
typical mountain bike may weigh 16Kg. Check the vehicle manufacturer's specification to ensure that you do not overload
the rear hatch or door.
1.3
Roof or boot spoilers and plastic trims may prevent the correct fitting of the cycle carrier as straps and carrier framework
should not be in contact with them when fitted.
1.4
Avoid any protrusions beyond the side of the car as these may present a risk of injury to passers-by. The load should not
protrude more than 40cm to the side of the rear lights. Be aware of restricted headroom as the cycles may extend above the
vehicle roof level!
1.5
For hatchback vehicles with glass to the top of the hatch an adaptor kit with Foam Puller bars must be used (not included in
this kit). For additional stability a BC2099 Stabiliser strap (not supplied) can be used with this carrier.
1.6
Secure cycles to the carrier using straps or rope (not supplied). Ensure that bicycles do not come into contact with the
vehicle bodywork and provide protection as required.
1.7
Remove any loose objects from the cycles carried i.e. pumps, bottles etc.
1.8
During your journey, frequently check the tension of carrier fixing straps and the security of the cycles carried.
1.9
Drive carefully, be aware of cross winds. Avoid sudden braking or hard cornering, reducing speed accordingly when using
the carrier.
1.10
Rear windscreen wiper (if fitted) may be obstructed by the cycle carrier, do not use.
1.11
Every time before use, check the carrier for security of fittings or any sign of wear and tear. Replace any worn or damaged
parts.
1.12
Should your rear lights or number plate be obscured when carrying cycles, an auxiliary lighting board and number plate
must be provided. Maypole manufacture lighting boards and wiring systems specifically designed for this purpose.
1.13
If towing a trailer with the carrier fitted, ensure that sufficient clearance exists between the draw bar and cycles to allow for
manoeuvring.
1.14
This carrier is designed for temporary use only, remove when not in use or before going through a car wash.
2. PARTS LIST
1 x
Fully assembled cycle carrier frame (no tools required for fitting)
4 x
Cycle protector pads
6 x
Cycle securing straps
"J" Hooks for underbody attachment
2 x
If straps are detached from the carrier, they must be rethreaded as shown in
Diagram 1.
The spring loaded catch must be pressed into the buckle to release the strap.
Pulling the loose end of the strap through the buckle should easily adjust the
strap length. To release the straps, press the cam into the buckle as shown in
Diagram 1.
Check all fixings on the carrier are securely fitted before use.
Diagram 1
