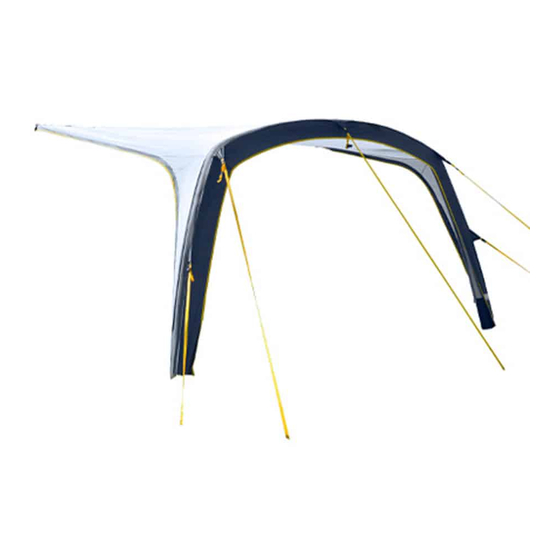

AIR SUN CANOPY FOR CARAVANS &
MOTORHOMES MP9529 USER GUIDE
Please read this user guide before attempting to set up your Sun Canopy.
Follow the user guide carefully and keep for future reference.
A copy of the user guide is also available on our website
www.maypoleltd.com
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for MayPole MP9529
Summary of Contents for MayPole MP9529
- Page 1 AIR SUN CANOPY FOR CARAVANS & MOTORHOMES MP9529 USER GUIDE Please read this user guide before attempting to set up your Sun Canopy. Follow the user guide carefully and keep for future reference. A copy of the user guide is also available on our website www.maypoleltd.com...
- Page 2 AIR SUN CANOPY FOR CARAVANS & MOTORHOMES MP9529 USER GUIDE WARNING – GENERAL SAFETY • Not to be used in strong winds and extreme weather conditions. • If using stepladders or a platform to set up the Air Sun Canopy you will be working at height &...
- Page 3 AIR SUN CANOPY FOR CARAVANS & MOTORHOMES MP9529 USER GUIDE PITCHING INSTRUCTIONS Remove the Sun Canopy from the carry bag and place flat on the ground. Ensure the dual beading faces the vehicle. The suncanopy has a 4mm & 6mm dual beading sewn into it. Choose the correct beading size for your awning channel (4mm or 6mm) and slide it into the awning channel on your vehicle (FIG 1).
- Page 4 AIR SUN CANOPY FOR CARAVANS & MOTORHOMES MP9529 USER GUIDE Connect the large adaptor (FIG 3) to the hand pump. Insert the adaptor into the top cap on the valve (FIG 4). Inflate the air beam to approx.6-7 PSI. Remove the adaptor from the valve and securely tighten the top cap.
- Page 5 AIR SUN CANOPY FOR CARAVANS & MOTORHOMES MP9529 USER GUIDE Buckle together the sizing strap between each leg to achieve the correct spacing (FIG 6). Peg down each leg at the base (FIG 7). FIG 6 FIG 7 3 storm straps can be found at the front of the Sun Canopy and 2 on each side.
- Page 6 FIG 10 FIG 11 To deflate - unscrew the bottom screw on the air valve. WARNING – Be aware of sudden loud noise caused by air escaping when deflating. Technical Manager Maypole Ltd November 2020 Email: sales@maypoleltd.co.uk Web: www.maypoleltd.com P a g e...
