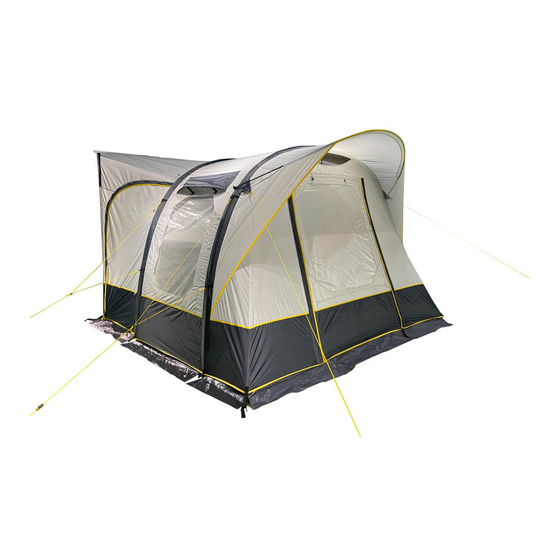

AIR DRIVEAWAY AWNING (CAMPERVANS) MP9543
USER GUIDE
Please read this user guide before attempting to set up your Air Driveaway
Awning.
Follow the user guide carefully and keep for future reference.
A copy of the user guide is also available on our website
www.maypoleltd.com
1 |
P a g e
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MayPole MP9543
Summary of Contents for MayPole MP9543
- Page 1 AIR DRIVEAWAY AWNING (CAMPERVANS) MP9543 USER GUIDE Please read this user guide before attempting to set up your Air Driveaway Awning. Follow the user guide carefully and keep for future reference. A copy of the user guide is also available on our website www.maypoleltd.com...
- Page 2 AIR DRIVEAWAY AWNING (CAMPERVANS) MP9543 USER GUIDE WARNING – GENERAL SAFETY • Not to be used in strong winds and extreme weather conditions. • If using stepladders or a platform to set up the driveaway awning you will be working at height & should carefully follow the stepladder / platform manufacturer’s safety instructions.
-
Page 3: Before Use
AIR DRIVEAWAY AWNING (CAMPERVANS) MP9543 USER GUIDE BEFORE USE Choose a clear site that is flat. Remove any sharp objects from the pitching area which could be dangerous or potentially damage the fabric or puncture the air tubes. NOTE – this Air Driveaway Awning is suitable for vehicles with an awning channel height range of 180cm –... - Page 4 AIR DRIVEAWAY AWNING (CAMPERVANS) MP9543 USER GUIDE Locate the two air valves below found on the air tubes on the right hand side of the awning. Unscrew the top cap of both air valves. Valve 1 Valve 2 Connect the large adaptor to the hand pump:...
- Page 5 AIR DRIVEAWAY AWNING (CAMPERVANS) MP9543 USER GUIDE Insert the adaptor into the top cap on an air valve: Inflate the air beam to approx.6-7 PSI. Remove the adaptor from the valve and securely tighten the top cap. Repeat for the second air valve.
- Page 6 AIR DRIVEAWAY AWNING (CAMPERVANS) MP9543 USER GUIDE Velcro both air roof beams in between the front and rear air beams as show below: Pre-assemble the canopy fibreglass pole. Insert the fibreglass pole into the sleeve found at the front of the canopy:...
- Page 7 AIR DRIVEAWAY AWNING (CAMPERVANS) MP9543 USER GUIDE Insert both ends of the fibreglass pole into the plastic sockets on the roof canopy. Once the fibreglass pole is secured into both plastic sockets it will naturally take the below canopy shape: To deflate the air tubes;...
