VigilLink VLMX-0402E User Manual

4x2 hdmi 2.0 matrix with output 4k to 1080p downscaling and display control 18gbps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

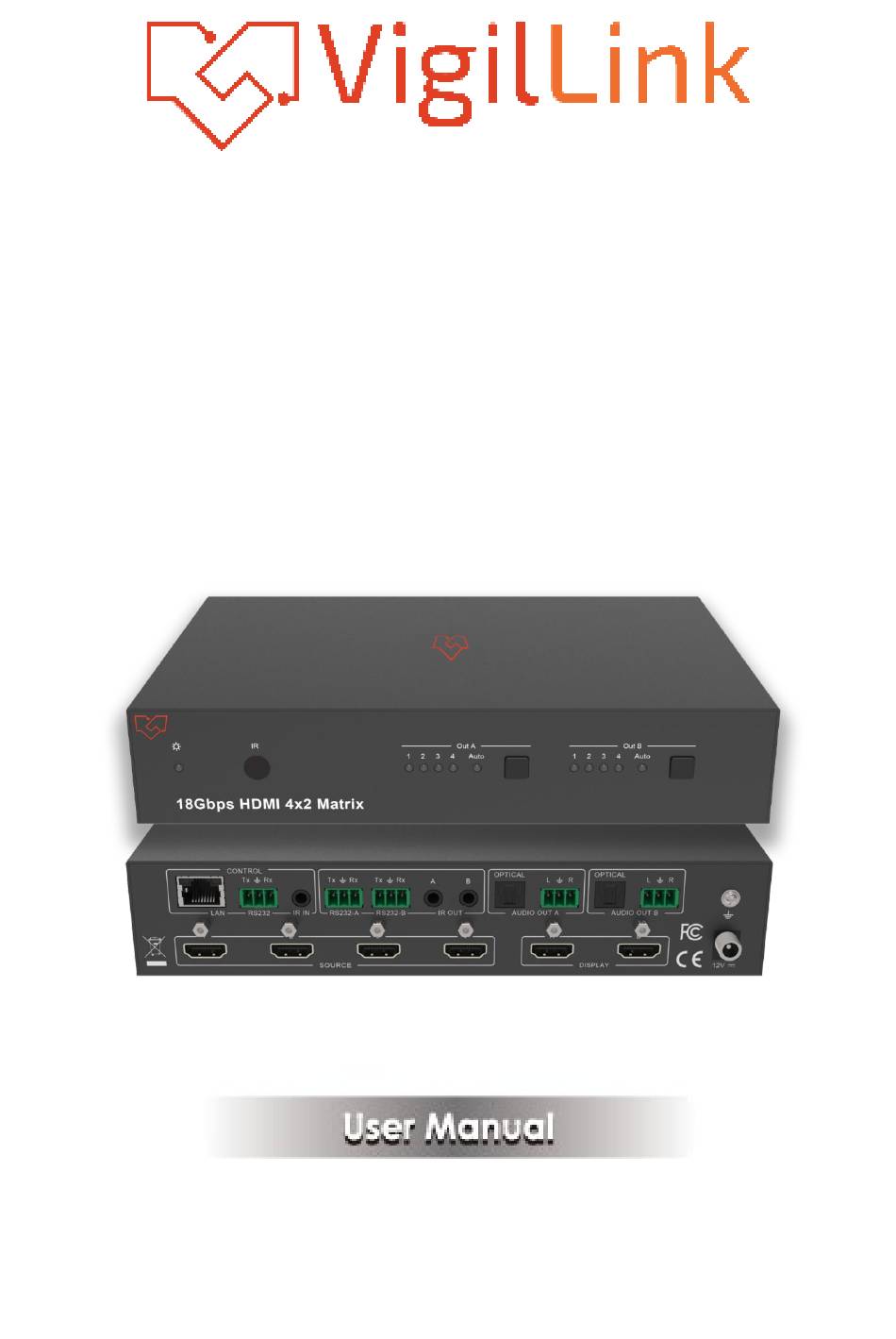

VLMX-0402E
4x2 HDMI 2.0 Matrix with output 4K to 1080p
downscaling and display control 18Gbps
VER 1.02
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLMX-0402E and is the answer not in the manual?

Questions and answers

Related Manuals for VigilLink VLMX-0402E

Summary of Contents for VigilLink VLMX-0402E

  • Page 1 VLMX-0402E 4x2 HDMI 2.0 Matrix with output 4K to 1080p downscaling and display control 18Gbps VER 1.02...
  • Page 2 Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc.

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ....................... 4 2. Features ......................4 3. Package Contents ....................5 4. Specifications ..................... 5 5. Operation Controls and Functions ..............7 5.1 Front Panel ....................7 5.2 Rear Panel ....................7 5.3 Connecting to the Matrix ................8 5.4 Using the Matrix ..................

  • Page 4: Introduction

    1. Introduction This product is an 18G HDMI video switcher with 4 HDMI inputs and 2 scaling HDMI outputs. Each input and output support up to 4K60 444 HDMI 18G video. The outputs can be individually scaled for 1080p or HDBaseT compatibility.

  • Page 5: Package Contents

    3. Package Contents Item 4×2 HDMI 2.0 18Gbps Matrix Switcher 12V/1A Locking Power Adapter IR Remote Mounting Ears IR Blaster Cables (1.5 meters) 20~60KHz IR Receiver Cable (1.5 meters) 3-pin Phoenix Connectors User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth...
  • Page 6 RS232-B odd or even parity, and 1 or 2 stop bits. ESD Protection Human-body Model：±8kV (Air-gap discharge), ±4kV (Contact discharge) Connections Input Ports 4×HDMI Type A [19-pin female] Output Ports 2×HDMI Type A [19-pin female] 2×L/R audio out [3-pin phoenix connector] 2×OPTICAL audio out [S/PDIF] 2×RS232 A/B [3-pin phoenix connector] Control port...

  • Page 7: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Front Panel Number Name Function description Power LED Blue LED indicates that the unit is powered. Red LED indicates that the unit is in standby mode. IR Sensor IR input for remote control of the switcher Out A / Out B LED and button for each output ■...

  • Page 8: Connecting To The Matrix

    DISPLAY HDMI outputs for displays A and B. Plug the DC 12V/1A power supply into the unit and connect the adapter to an AC outlet. CONTROL LAN (RJ45): Control port for LAN control or accessing the built-in Web GUI. RS232: a 3-pin pluggable connector for RS232 control of the Matrix.
  • Page 9 Blue The Matrix is active and fully controllable The Matrix is in standby mode; this state can be changed by using RS232 or LAN commands or from the Web GUI interface. 5.4.2 Auto LED and Button The green AUTO LED for both outputs A and B is lit when that channel has its Auto Detection mode active.

  • Page 10: Ir Pin Definition

    5.5 IR Pin Definition IR Receiver and Blaster pin's definition as below:...

  • Page 11: Ir Remote

    6. IR Remote Power on the product or set it to standby mode. Output A / B 1/2/3/4 Select input source signal to Out A / B port output, corresponding Out A / B LED on the front panel illuminates in blue. Select the last or next input source signal to OUT A / B port output, corresponding Out A / B LED on the front panel illuminates in blue.

  • Page 12: Using The Built-In Web Interface

    7. Using the Built-In Web Interface The Matrix has a built-in web interface to provide a means of controlling or configuring various settings. Seven pages are available, each of which will be outlined in detail in the following sections. The seven pages are: 1.

  • Page 13: Status Page

    Select the Username from the list and enter the password. The default passwords are: Username User Admin user admin Password After entering the log-in details, click the LOG-IN button and the following The status page will appear. ■ Status Page The Status page provides basic information about the product Model name, the installed firmware versions, and the network settings.
  • Page 14 The buttons at the top right of the web interface are always available and provide the following functions: ● The Log out button will disconnect the current user from the session and display the log-in screen. ● The Power On button changes the power status of the Matrix between On and Stand-by mode.
  • Page 15 The following EDID options are available in any of the EDID drop-down lists: 1080P, Stereo Audio 2.0 1080P, Dolby/DTS 5.1 1080P, HD Audio 7.1 1080I, Stereo Audio 2.0 1080I, Dolby/DTS 5.1 1080I, HD Audio 7.1 3D, Stereo Audio 2.0 3D, Dolby/DTS 5.1 3D, HD Audio 7.1 4K2K30_444, Stereo Audio 2.0 4K2K 30Hz_444 Dolby/DTS 5.1...
  • Page 16 4K2K 60Hz_444 Stereo Audio 2.0 4K2K 60Hz_444 Dolby/DTS 5.1 4K2K 60Hz_444 HD Audio 7.1 4K2K60_444,Stereo Audio 2.0 HDR 4K2K60_444,Dolby/DTS 5.1 HDR 4K2K60_444,HD Audio 2.0 HDR USER1 USER2 Copy from OUT 1 Copy from OUT 2 Note that User 1 and User 2 are global EDID memories only. Any inputs that is set to one of these memories will always use the same EDID data from User 1 or User 2, respectively.
  • Page 17 ■ Output page The Output page provides information about the signal status of the outputs. The outputs can also be assigned meaningful names if desired. The scaler mode menu provides the following options: No scaling. 4K→1080P Downscale to 1080p, if needed. HDBT Mode Downscale to no more than 10.2Gbps for HDBaseT compliance.
  • Page 18 the IP address boxes are only accessible when the Mode button is set to Static. The log-in passwords can be changed s on this page. Note that any changes to this page will require the new details into the web browser and/or the log-in screen.
  • Page 19 ■ Control page The Control page is used to set the RS232 or IR display device power on/off commands for the Automatic Power Switching mode. When this mode is enabled, the display power off and power on commands will be sent from RS232-A/RS232-B or IR-A/IR-B outputs after the defined Power Off Timeout and Power On Timeout values, respectively.
  • Page 20 ▪ RS232 Setting 1 and RS232 Setting 2 Select the desired tab and configure the RS232 port settings to match the display device requirements. Select ASCII or HEX for the command format and enter the Power Off and Power On commands with the appropriate command termination mode: None, CR, LR, or CRLF.
  • Page 21 This page requires that the IR commands are available in plain text files using the CCF IR code format. 1. Select the desired IR Control Setting tab. 2. Click the Load button to load the respective IR command. If the display device only supports a power toggle IR command, then use the same file for both the Power On and Power Off modes.

  • Page 22: Ascii Control Command

    8. ASCII control command The Matrix also supports ASCII control. You need a Ran-232 phoenix connector male head to an RS-232 female head with DB9 serial cable and an RS-232 male head with DB9 to USB male head serial cable. The phoenix connector male head is connected to the RS-232 port of the Matrix, and the USB head of the serial cable has connected to a PC.
  • Page 23 ASCII Command Serial port protocol: Baud rate：115200 (default), Data bits: 8bit, Stop bits:1, Check bit: 0 TCP/IP protocol port: 8000. The x, y, z, and XXX are parameters. RS-232 Command Function description Feedback System Setting r type! Get device model HDP-MXB42AP r status! Get the device's current status...
  • Page 24 Initialization Finished! power off r power! get the current power state power on /power off s reboot! reboot the device Reboot… System Initializing... Initialization Finished! Output Setting s in x av out y! input 1 -> output 2 Set input x to output y，x=1~4，y=0~2(0=all) r av out y! Get output y signal status y=0~2(0=all) input 1 ->...
  • Page 25 s pattern mode z! Set test patterns type. z=1~6 (1- Checkerboard set pattern White! 2-White 3-Red 4-Green 5-Blue 6-Black) r pattern mode! Get test pattern mode. set pattern White! EDID Setting s did in x from z! Set input x EDID from default EDID z, IN1 EDID:1080p,Stereo x=0~4(0=all),z=1~25 Audio 2.0...
  • Page 26 22=User1 23=User2 r did in x! Get EDID status of the input x, x=0~4(0=all input) IN1 EDID: 4K2K60_444, Stereo Audio 2.0 IN2 EDID: 4K2K60_444, Stereo Audio 2.0 IN3 EDID: 4K2K60_444, Stereo Audio 2.0 IN4 EDID: 4K2K60_444, Stereo Audio 2.0 r did data HDMI y! Get the EDID data of the HDMI output y EDID : 00 FF FF FF FF FF port,y=1~2...
  • Page 27 TCP/IP port: 23 Mac address: 00:1C:91:03:80:01 r mac addr! Get the network MAC address Mac address: 00:1C:91:03: 80:01 s ip mode z! Set network IP mode to static IP or DHCP, Set IP mode:Static. z=0~1 (z=0 Static, z=1 DHCP ) Please use "s net reboot!"...
  • Page 28 the device to apply the new config! DHCP on, Device can't config subnet mask, set DHCP off first. r subnet! Get a network subnet mask Subnet Mask:255.255.255.0 s gateway xxx. Set network gateway Set gateway:192.168.1.1 xxx.xxx.xxx! Please use "s net reboot!"...
  • Page 29 00:1C:91:03:80:01 Control setting s autopower z! Set display auto power on/off control Display autopower control enable z=0~1(z=0 disable, z=1 enable) r autopower! Get display auto power state Display autopower control enable s autopower mode Set display auto power control mode Display autopower control by RS-232 z=1~3(z=1 RS-232, z=2 CEC, z=3 IR)
  • Page 30 [ARGS] is The parameters for the CEC opcode, Some of the CEC commands have parameters and some have no parameters，so [ARGS] is Optional end! Is the terminator s rs232 (port) port=(01=RS232-A,02=RS232-B) Port: RS232-A (format)(baud format=(00=ASCII,01=HEX) Format: ASCII rate) baudrate=(00-4800 01-9600 02-19200 Baudrate: 115200 (databit)(parity) 03-38400...

  • Page 31: Connection Diagram

    9. Connection diagram...
